5-Axis Machining Centres

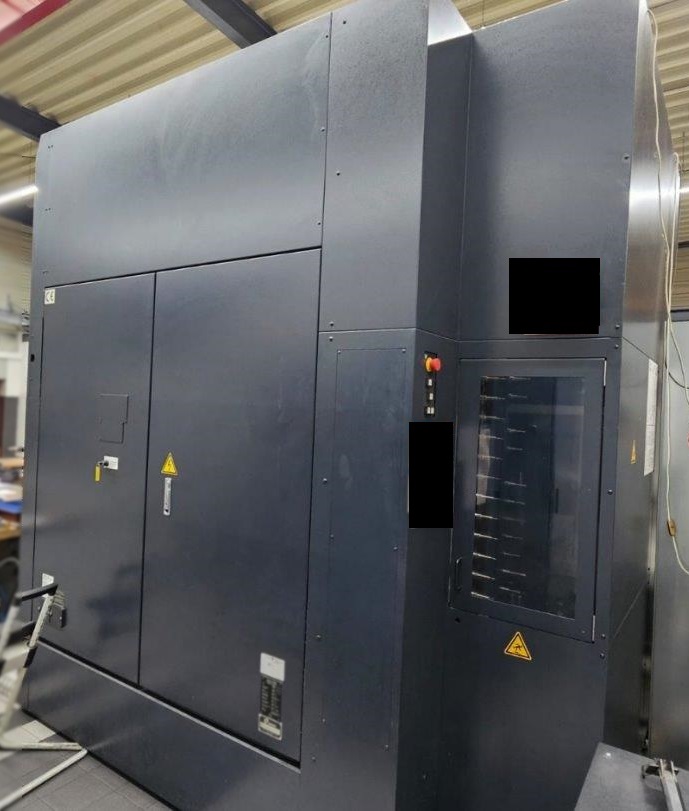

5-Axis Vertical CNC Machining Centre with Pallet pool

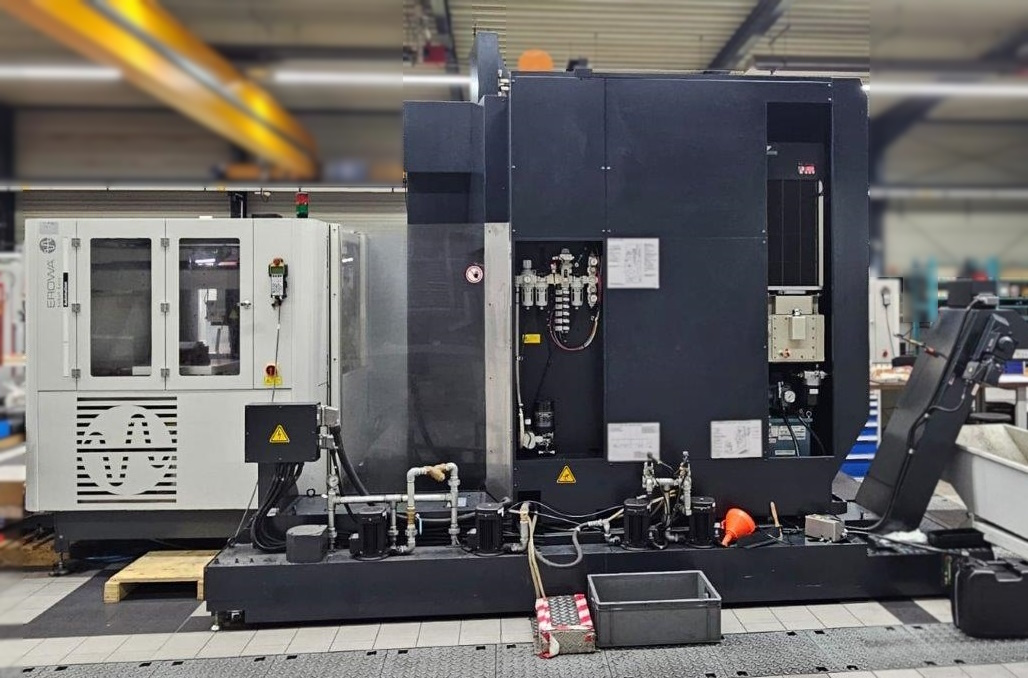

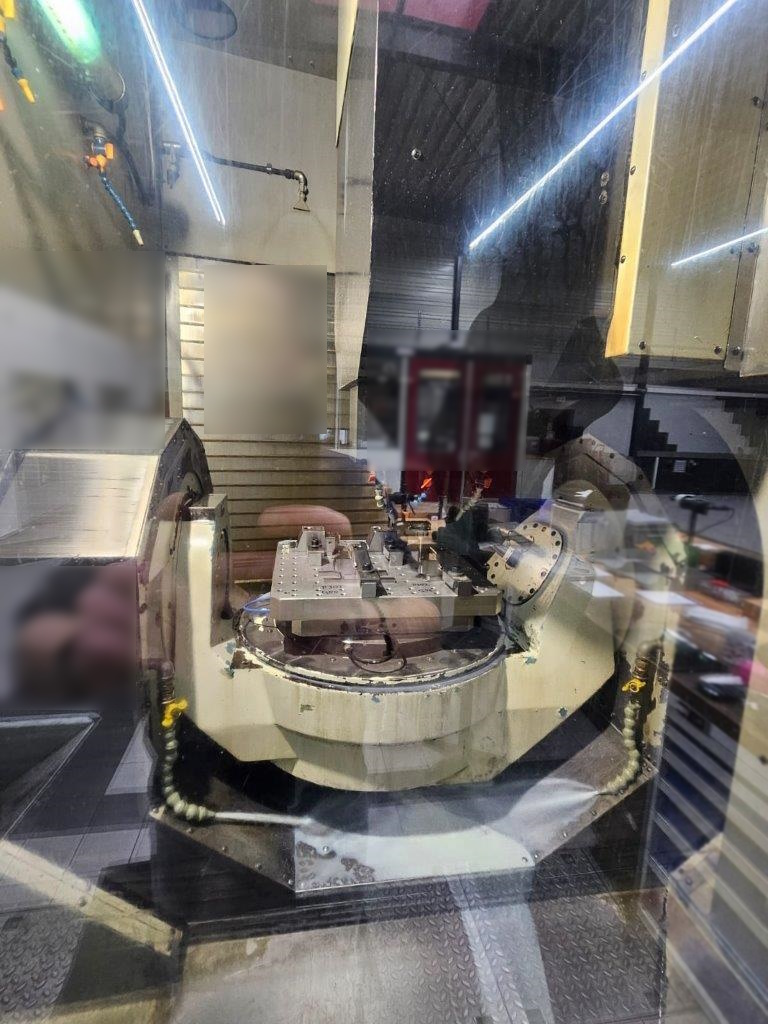

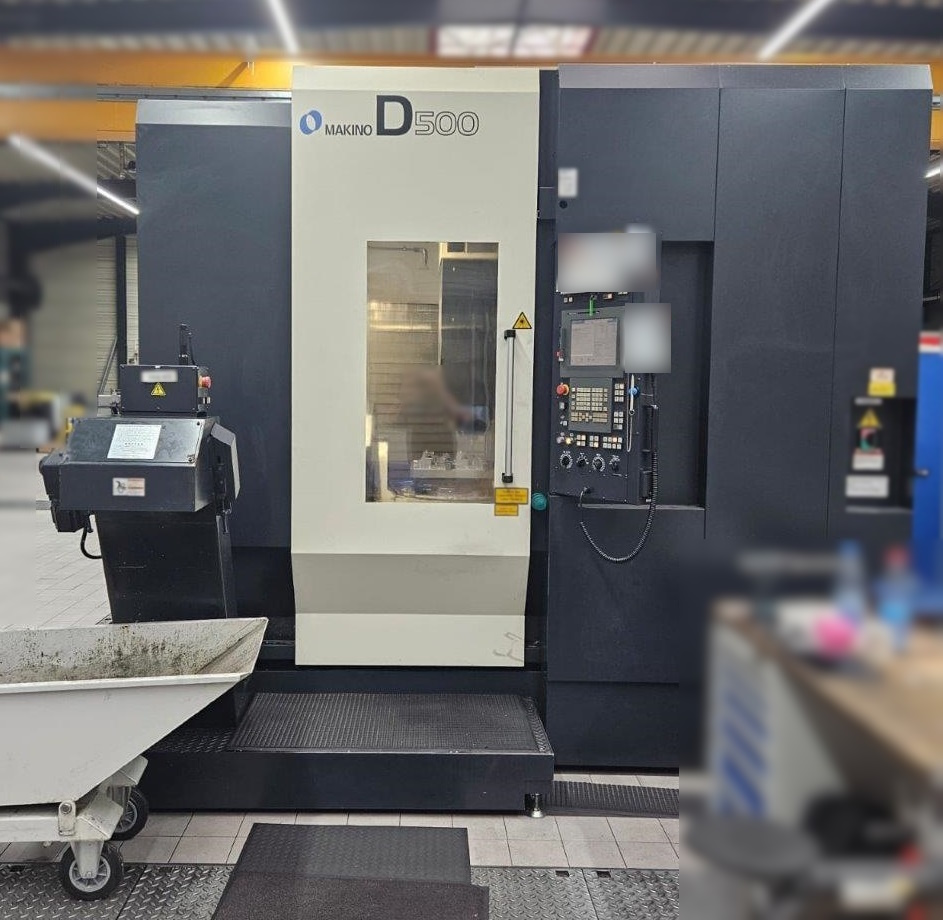

Makino D500
Year 2011
Fanuc 310iS Professional 5
2-Axis NC Rotary Tilting Table
Pallet size 400 x 400 mm
EROWA pallet system with 4 x pallets
X 500 mm
Y 1000 mm
Z 500 mm
C Axis 360°
A Axis +30° ~ -120°
Spindle speeds 300 – 30000 rpm
60 station tool magazine
Proposal Number: MV-6494
Click here to Contact Us for more details
5-Axis CNC Vertical Machining Centre

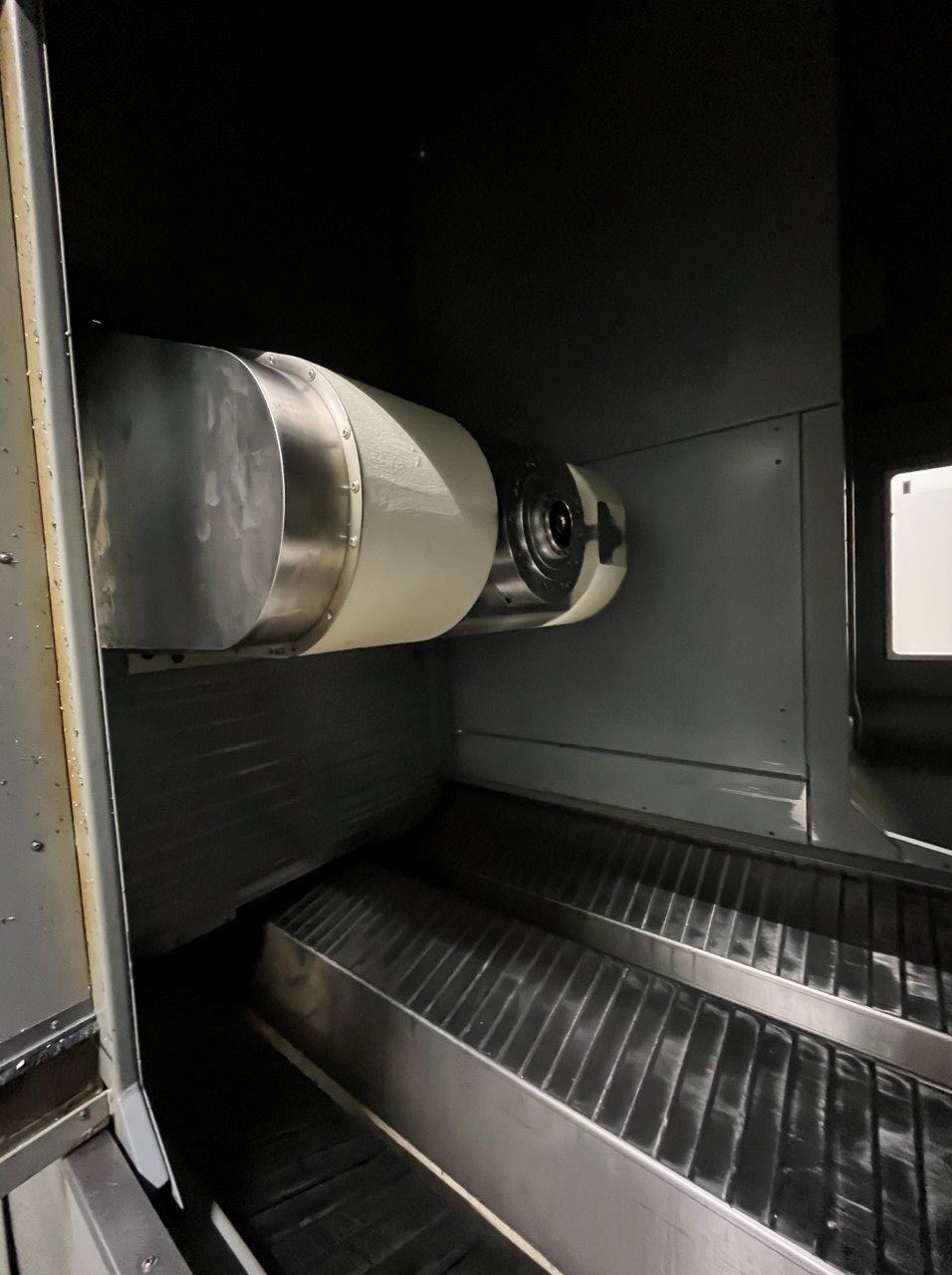

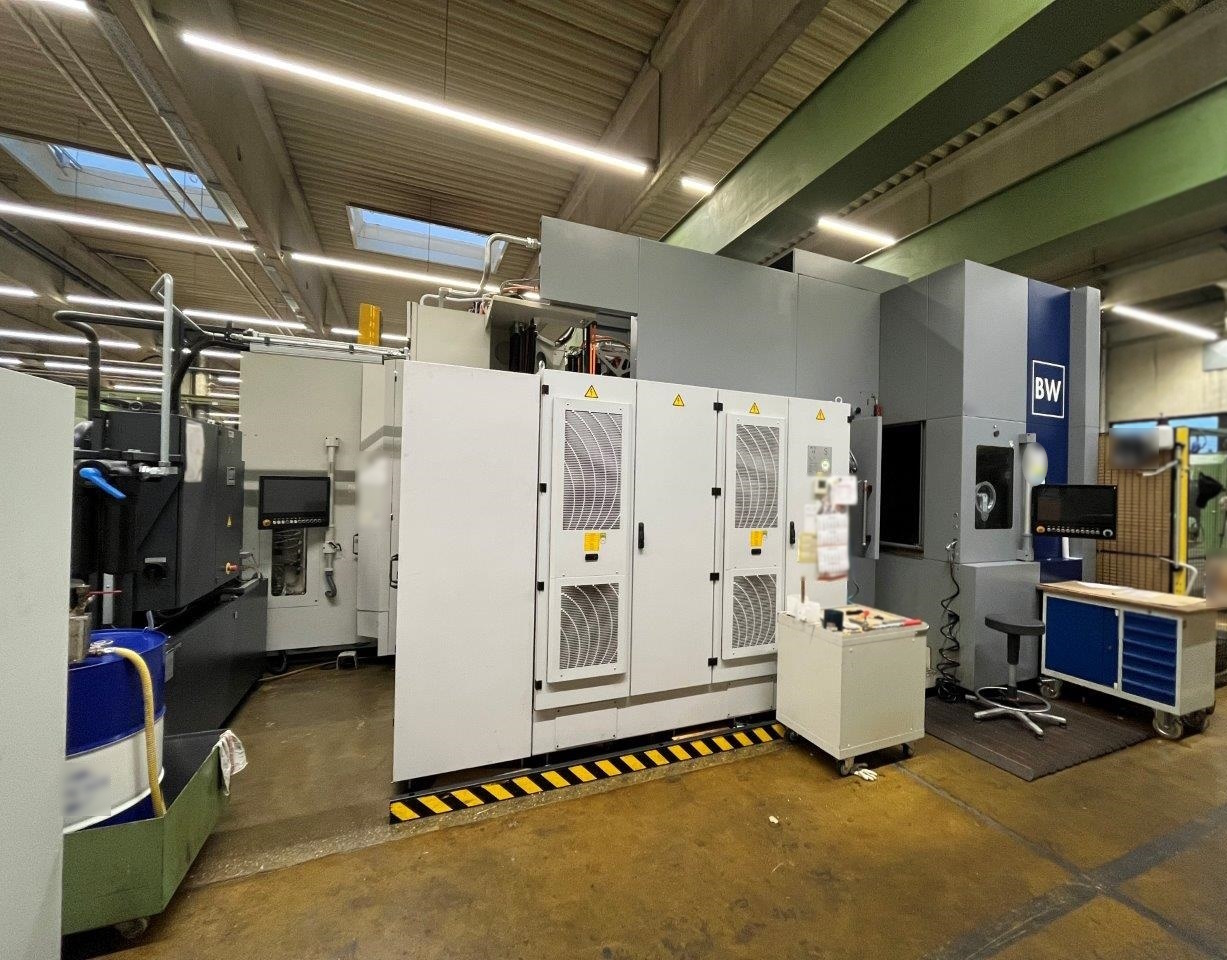

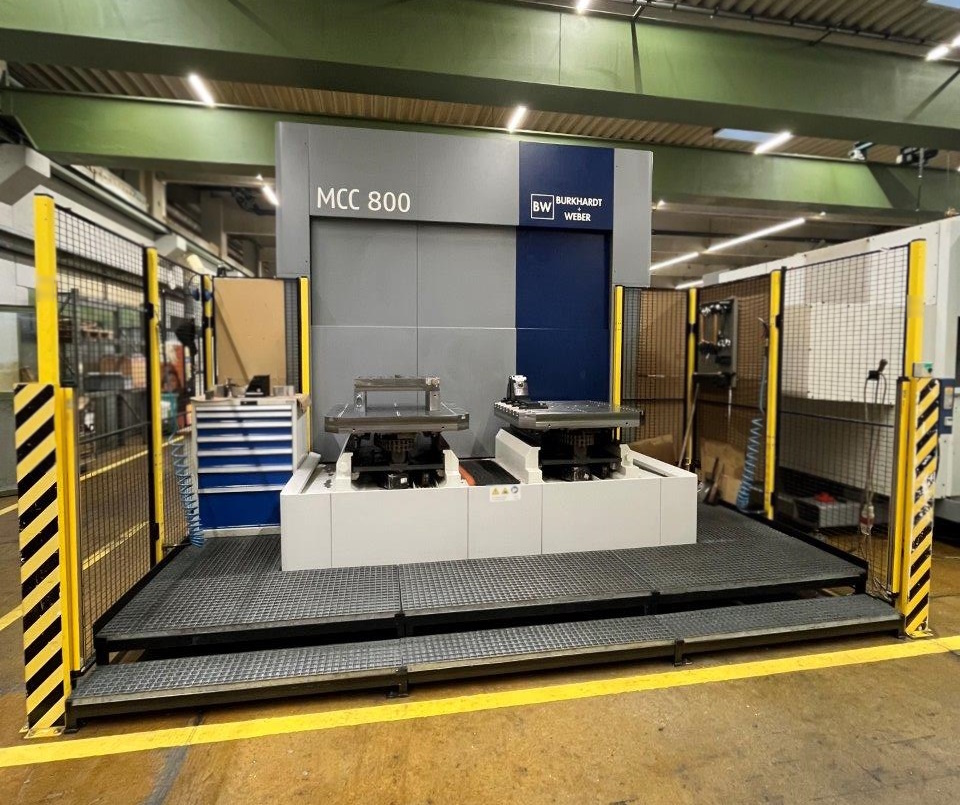

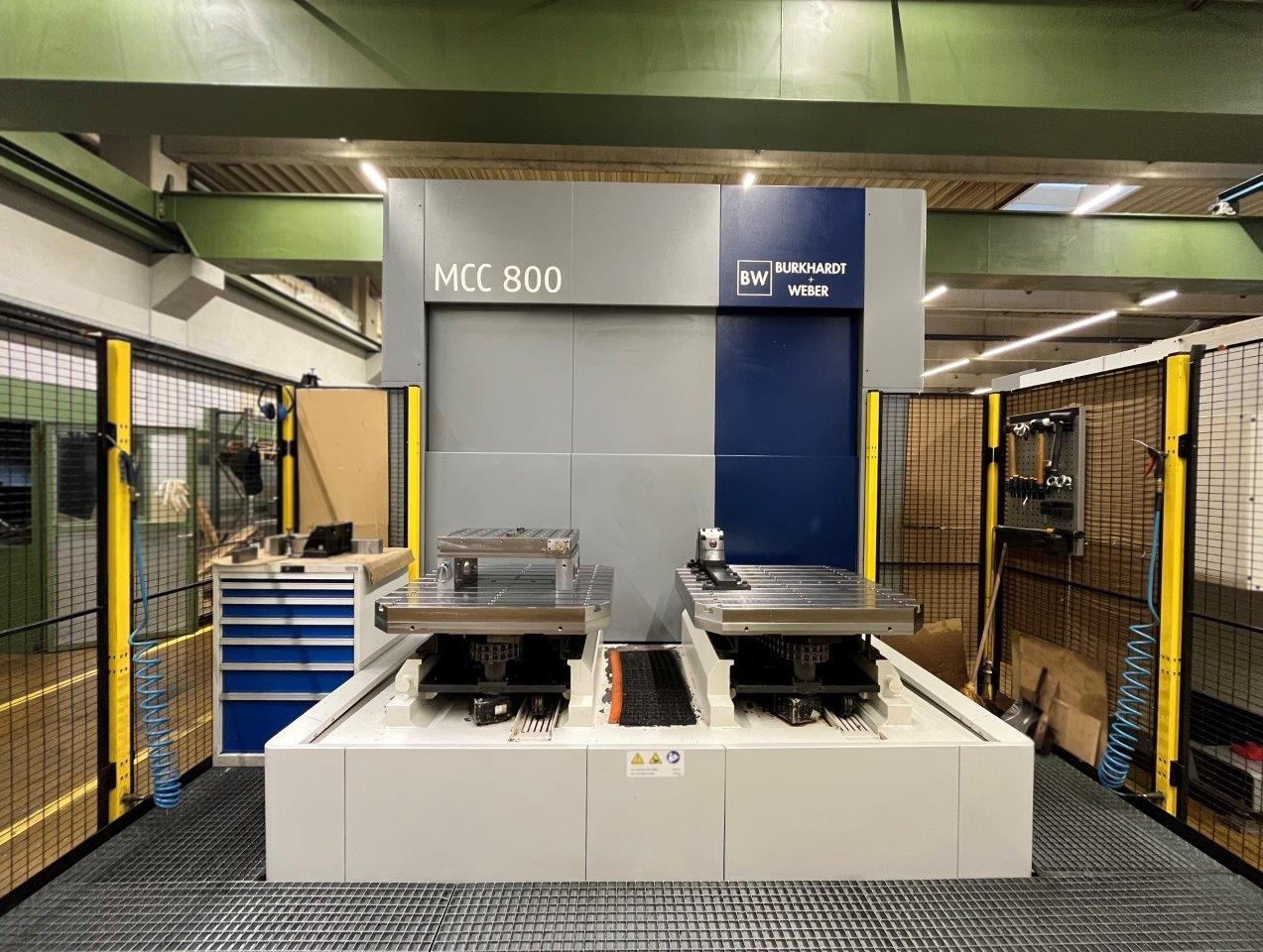

Burkhardt + Weber MCC 800 A
Year 2019
Siemens 840D sl – OPERATE
NC-Rotary table
Table size 1000 × 1000 mm
Max. table load 2500 kg
Workpiece interference envelope (Ø × H) 1500 × 1500 mm
4th axis B-axis (NC rotary table, 0.001° resolution)
5th axis A-axis (NC tilting spindle +45° / -110°)
Travels
X-axis (cross travel) 1400 mm
Y-axis (vertical travel) 1200 mm
Z-axis (longitudinal travel) 1600 mm
Feed and rapid traverse (X, Y, Z) up to 60000 mm/min
Rapid traverse (B, A) 40 rpm
Spindle taper HSK-A100
Spindle bearing diameter 100 mm
Spindle motor power 30 / 38 kW
Spindle speed range 20 – 10000 rpm
Spindle torque 380 Nm
128 station Tool magazine positions
Max. tool weight 30 kg
Max. tool length 650 mm
Tool diameter min. 125 mm / max. 350 mm
Equipped with
Tool breakage monitoring
Absolute linear measuring system X,Y,Z
Absolute measuring systems for A and B axes, resolution 0.001°
Through-spindle coolant (IKZ) 10 – 50 bar
Switchable coolant supply and air blast
Smart panel on tool magazine
Tool cleaning system
Oil mist separator (LOSMA)
Coolant tank 1700 L
Paper band filter
Spindle torque and feed force monitoring
Renishaw probe RMP60-Q
Remote diagnostics
Portable control unit
Spindle hours 6280
Proposal Number: MH-6511
Click here to Contact Us for more details
5-Axis HSC Vertical Machining Centre

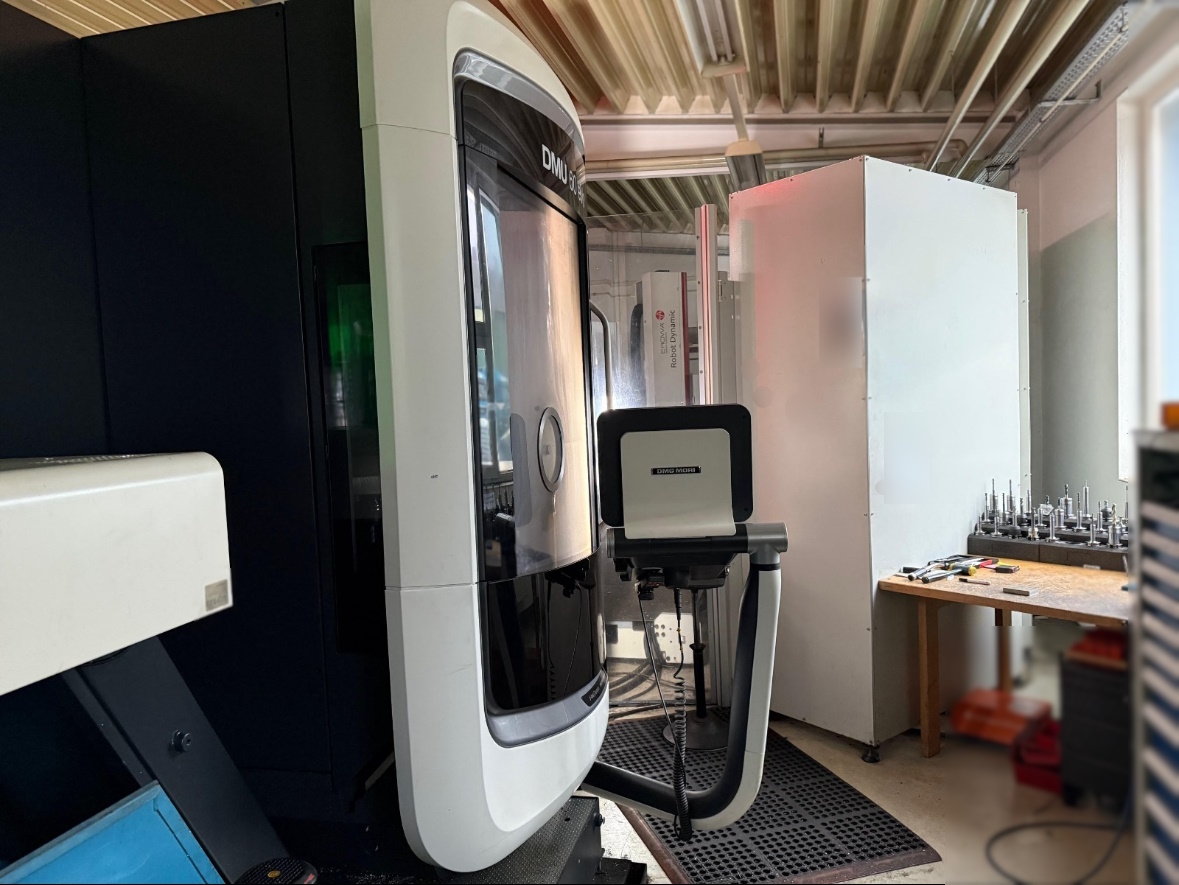

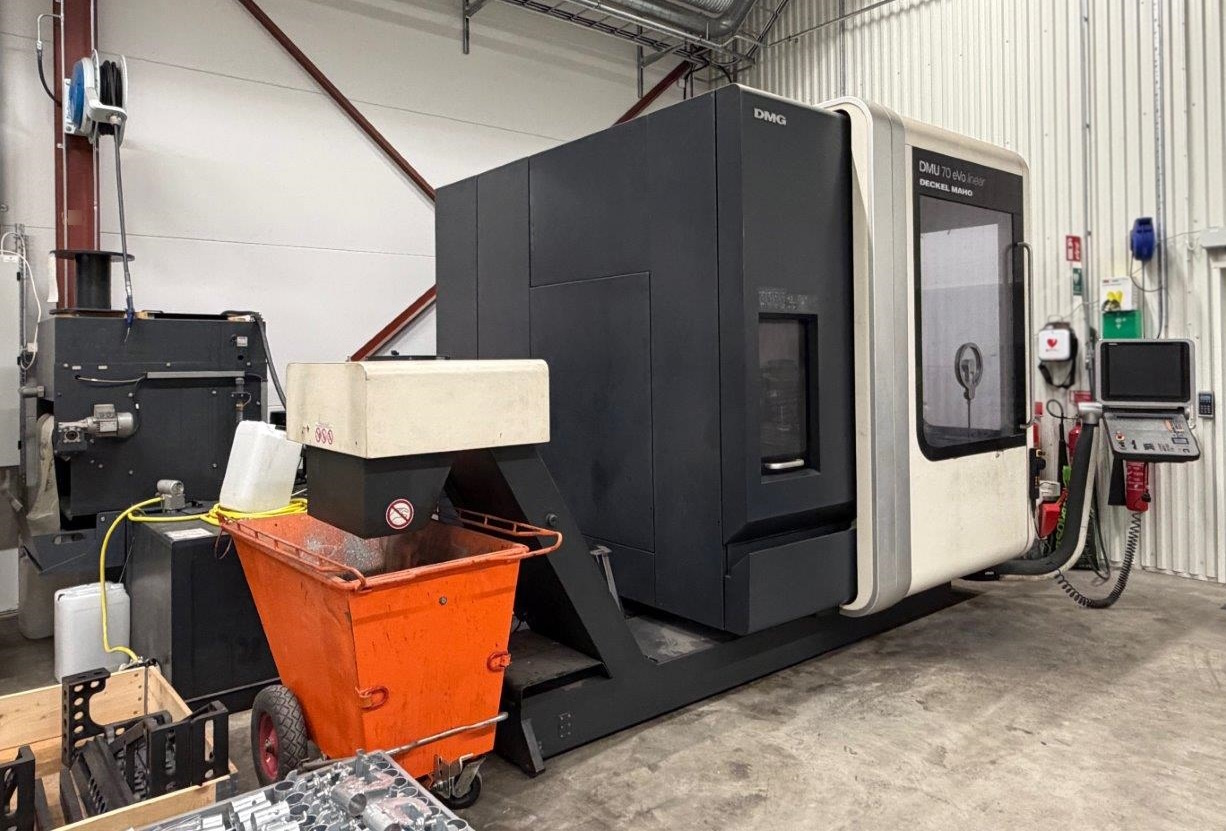

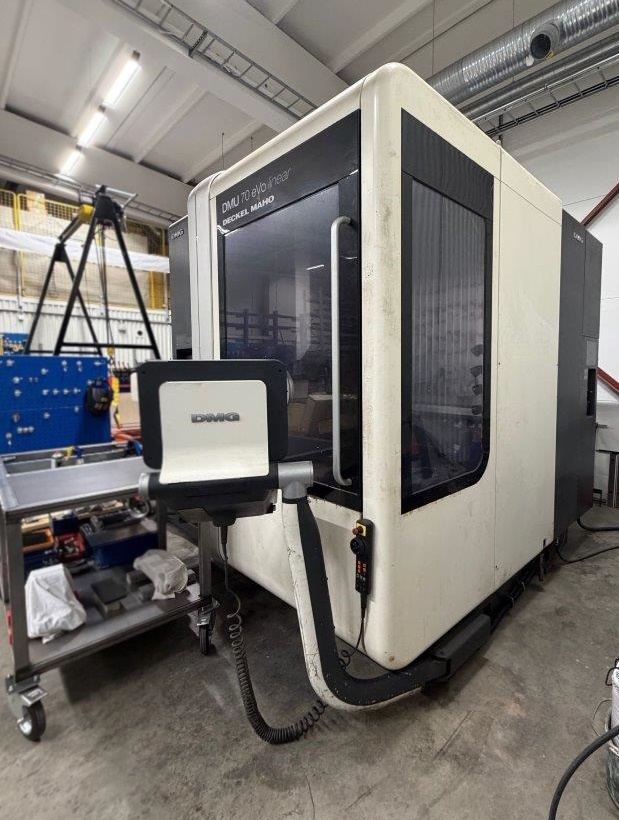

DMG DMU 70 eVo linear NEW Design
Year 2011
Heidenhain iTNC 530
2-Axis NC Rotary-/Swivelling Table
Table size 700 x 500 mm
Table load max. 350 kg
C-Axis 360°
B-Axis 120°
Travels:
X-Axis 750 mm
Y-Axis 600 mm
Z-Axis 520 mm
Spindle drive motor 25/35 KW
Spindle speed range 0 -18000 rpm
60 tool ATC
Tool taper HSK-A63
Equipped with
3D control
Direct measuring system linear axes
2-axis NC swiveling rotary table with direct measuring system
Renishaw probe
Laser Tool Measurement Renishaw NC4 Laser
Chip conveyor
Electric hand wheel
Production package:
Coolant through the spindle 40 bar, paper band filtering device,
chip flush, rotary clear view window
Operation mode 4
Inspect in plant under power
Proposal Number: MV-6513
Click here to Contact Us for more details
5-Axis CNC Vertical Machining Centre

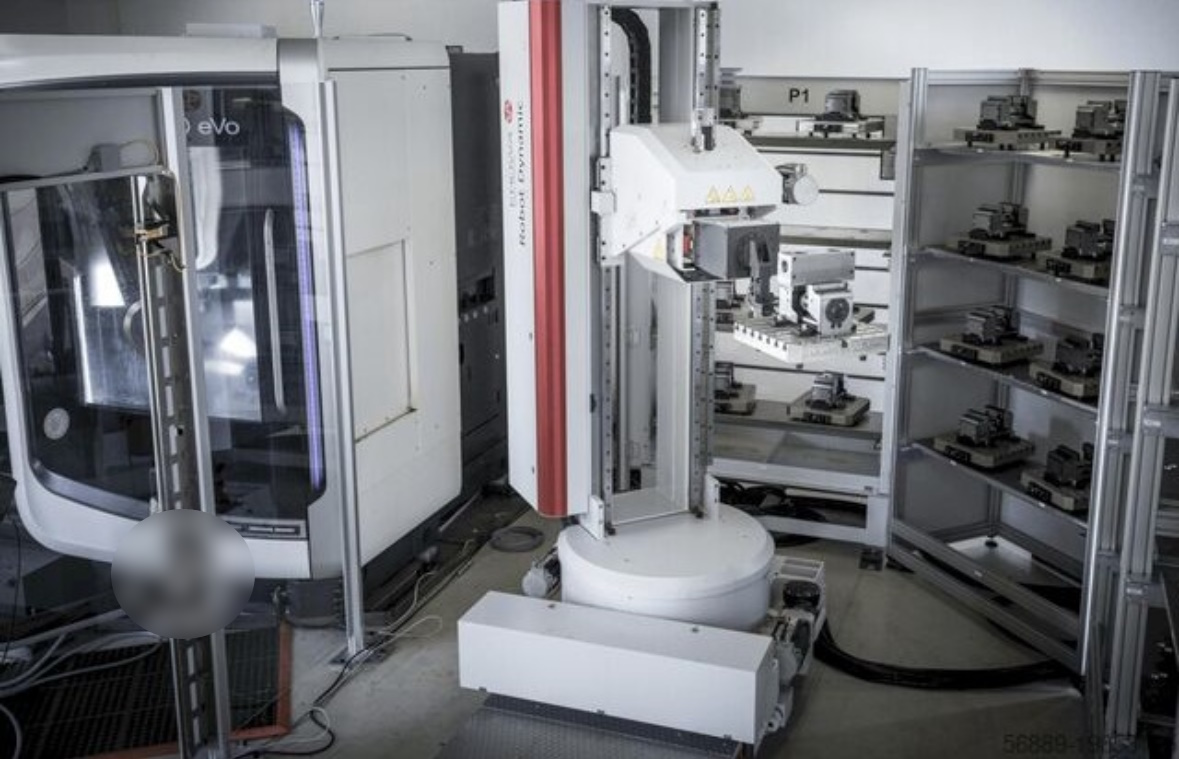

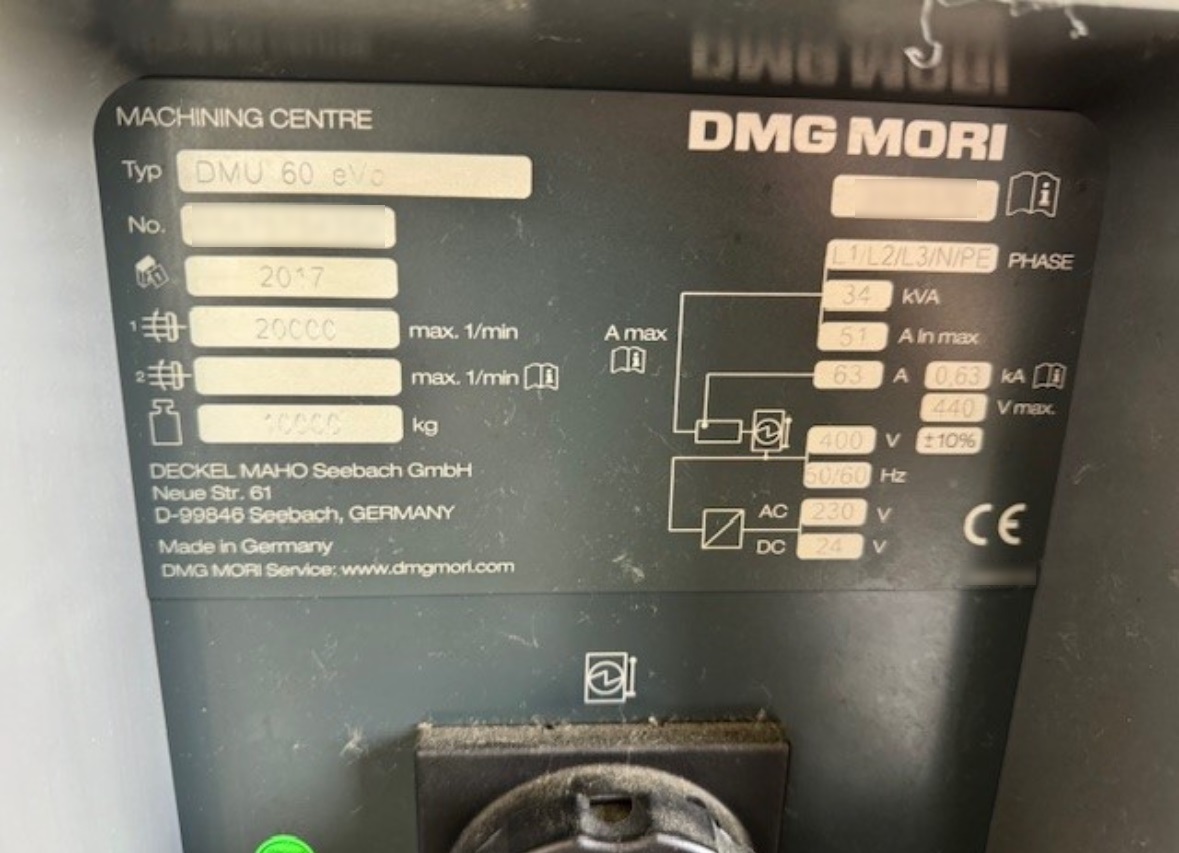

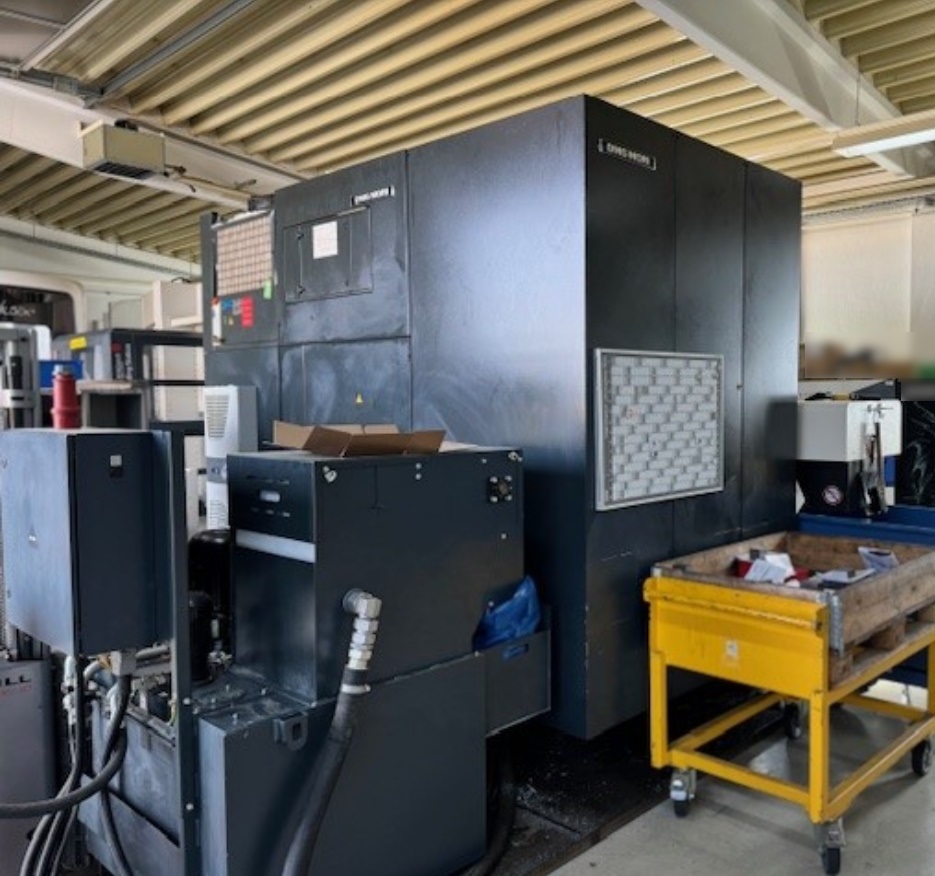

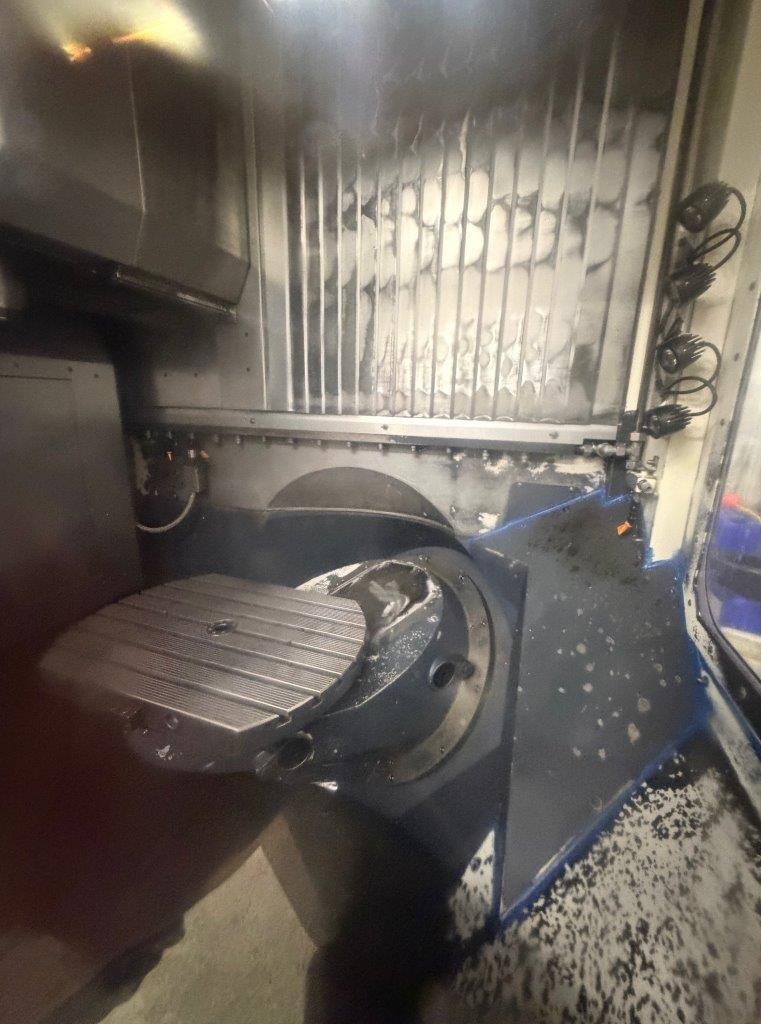

DMG DMU 60 eVo
Year 2017
Heidenhain TNC 640 ERGOline
2-Axis NC-Rotary& Tilting Table
Table size 600 × 500 mm
Max. table load 400 kg
Travels
X-axis 600 mm
Y-axis 500 mm
Z-axis 500 mm
C-axis: 360°
B-axis: -5° / +110°
Spindle taper SK 40 BIG PLUS
Spindle motor power 25 / 35 kW AC
Spindle speeds up to 20000 rpm
120 station Tool magazine positions
Equipped with
Automation-ready with extended M65 interface
Direct measuring systems on linear axes
Direct measuring systems on rotary axes
Renishaw OMP60 optical infrared probe
Tool breakage detection TRS2 (contactless, suitable for small diameters)
Chip conveyor
High-pressure internal coolant system (40 bar)
Paper band filter for coolant
Coolant tank: 600 liters
Extended chip flushing (additional cleaning of work area)
Chip wash gun
Spindle center air blast (selectable via M-function, conditioned low-oil air)
Rotating safety window (spinning viewing pane)
Oil mist system
Note: Automation system EROWA PPL is NOT included
Operating hours 47589
Spindle hours 28638
Proposal Number: MV-6512
Click here to Contact Us for more details
High Dynamic Vertical Drill-Tap centre / 5-Axis Vertical CNC Machining Centre
DMG Mori DMP 70
With best milling performance
New in 2023
Siemens 840D solutionline
2-Axis NC Rotary Tilting Table
C Axis 360° torque motor
A Axis -120°/+100°
Table diameter 290 mm
Table load max. 100 kg
X = 700 mm
Y = 420 mm
Z = 380 mm
Feeds and rapids X,Y,Z up to 60000 mm/min.
Spindle taper BBT 30 BIG PLUS
Spindle speeds max. 24000 rpm
Spindle motor drive 4/6/20 KW
Spindle torque max. 40 Nm
25 Tool magazine positions
Equipped with:
Rotary joint with 4 channels
Software package Job Shop and Sinumerik MDynamics 5-axis
Data memory extension 6 GB flash card
ShopMill
Chip conveyor
Paper filter for coolant
Through-spindle coolant 40 bar
Workpiece measuring system BLUM TC52
BLUM Z-Nano for tool length and tool breakage detection
4-color signal tower
Direct absolute measuring system X, Y, Z with 0.01 µm resolution
600-liter tank
Oil mist extraction unit
3D quickset option for tool compensation and kinematic accuracy
Automation interface package
Hand wheel
Machine Data Connector & NET service options
Optionally available a Pallet handling system System 3R Workpartner 1 + Cell
…And much more!
New spindle with under 100 hours!
Proposal Number MV-6489
Proposal Number: MV-6489
Click here to Contact Us for more details
5-Axis CNC Vertical Machining Centre for Drilling + Tapping + Milling + TURNING
Brother Speedio M140X2
New in 2017
Brother C00 Control
Table diameter 130 mm
2-Axis NC Rotary Swivelling MILL/TURN table
C-Axis 360°
A-Axis -120° ~ +20°
X 200 mm
Y 440 mm
Z 305 mm
Milling spindle
Spindle taper BT 30
Spindle drive motor 4.9 KW
Spindle speeds to 16000 rpm
Turning spindle
Spindle drive motor 4.2 KW
Spindle speeds to 2000 rpm
22 station tool magazine
Excellent condition
Contact us for a detailed offer with more technical data, price and photos.
Proposal Number: MV-6403
Click here to Contact Us for more details
CNC 5-Axis Vertical Machining Centre with Bar Working
Stama MC 531/SM Dynamic Power
New in 1999 / Overhauled in 2017
Siemens 840D CNC control
2-Axis NC Swivelling Rotary table
Table diameter 210 mm
Table with spindle nose ASA 8
Table spindle bar capacity 20 ~ 80 mm Ø
Bar length max. 800 mm
Longitudional travel X 800 mm
Cross travel Y 400 mm
Vertical travel Z 350 mm
Table rotary axis 4th Axis (continuous) B-Axis 360° / 0.001°
Table swiveling 5th Axis (continuous) A-Axis 105° / 0.001°
Vertical clearance spindle to table: min./max. 265 / 615 mm
Feedrates X/Y/Z 1 – 10000 mm/min.
Rapids up to X/Y/Z 45000 mm/min.
Spindle taper HSK-A63
Spindle motor rating 14/21 KW AC
Spindle speeds 36 – 9000 rpm
Spindle torque max. 70 Nm
Tool magazine positions 78 station ATC
Tool taper HSK-A63
Tool Ø without adjacent tools max. 125 mm
Tool length max. 250 mm
Tool weight max. 12 kg
Tool change time 2.4 sec.
Chip to chip time 3 sec.
Milling capacity max. 350 cm³/min.
Drilling capacity Ø max. 40 mm
Threading capacity Ø max. M 27
Machine weight approx. 7200 kg
Machine size (not floor space) LxWxH 3000 x 4050 x 2930 mm
Equipped with:
2-Axis NC-Rotary swivelling table.
Table as work carrier for up to 80 mm diameter bar.
Max. bar length 800 mm.
Hainbuch grippers (fast connection) diameter 180 mm.
Short bar magazine.
Chip conveyor.
Milling spindle Internal coolant supply 70 bar with magnetic filter.
BLUM laser tool measurement.
Tool Holders.
Hydraulic tailstock.
KNOLL paper filter system.
Spare grippers for the table.
Channels for the barfeeder.
Condition: Overhauled in 2017 including new main spindle
Proposal Number: MV-6173
Click here to Contact Us for more details
DMG DMU 70 eVo linear NEW DESIGN
Year 2010 - Heidenhain MillPlus IT CNC
2-Axis NC- Rotary Swivelling Table:
Rotational axis: C-Axis 360° x 0.001°
Swivelling axis: B-Axis 102° x 0.001°
Table size: Ø 700 x 500 mm
Table loading capacity: max. 350 kg
Longitudinal travel: X 750 mm
Cross travel: Y 600 mm
Vertical travel: Z 520 mm
Feedrates up to: X 80000 mm/min.
Y/Z 50000 mm/min.
Rapids up to: X 80000 mm/min.
Y/Z 50000 mm/min.
B/C 40 rpm
Spindle motor rating: 35/25 KW
Spindle speeds: 20 - 18000 rpm
Tool magazine positions: 120 station
Tool taper: HSK-A63
Tool diameter with/without adjacent tools: 80/130 mm
Tool length: max. 300 mm
Tool weight: max. 6 kg
Machine weight: approx. 8500 kg
Machine size: LxWxH 6000 x 5200 x 2900 mm
Equipped with:
Full splash and chip covers.
Production package.
Coolant through the spindle 40 bar, 23 l/min., 980 l Tank.
Paper band filtration system.
Chip conveyor.
BLUM Laser Tool measurement & tool breakage control.
Heidenhain measuring probe (parts probe).
Electric handwheel (MPG).
User mode 4.
OPTIONAL: with SYSTEM 3R Pallet Server System.
Condition: Very good
Proposal Number: MV-5862
Click here to Contact Us for more details
5-Axis CNC Vertical Machining Centre - DMG DMU 50 eVo linear
Year 2006 - Heidenhain MillPlus IT
2-Axis NC Rotary Swivelling Table:
Table size: 500 x 380 mm
Table loading capacity: max. 200 kg
Working traverses:
Longitudinal travel: X 500 mm
Cross travel: Y 450 mm
Vertical travel: Z 400 mm
Table rotational axis: C 360° / 0.001°
Table swivelling axis: B +90°/-18° ~ 0.001°
Cutting feeds: X,Y,Z 20000 mm/min.
Rapid traverse Linear Drive: X 80000 mm/min.
Rapids traverses: Y, Z 50000 mm/min.
C/B 50 / 40 rpm
Spindle:
Spindle motor rating: 40%/100% 35 / 25 KW
Spindle speeds: 20 - 18000 rpm
Spindle torque: 40%/100% 130 / 87 Nm
Tool magazine & Automatic Tool Changer:
Tool magazine positions: 120 station
Tool taper: HSK-A63
Tool diameter all pockets full: max. 80 mm
Tool diameter adjacent pockets empty: max. 130 mm
Tool length: max. 300 mm
Chip to chip time: 5 sec
Machine weight: approx. t.b.a. kg
Machine size: L x W 6050 x 3140 mm
Equipped with:
Direct measurement systems X,Y,Z,C,B Axes.
Linear drive X-Axis.
ATC with double gripper arm.
Tool taper HSK-A63.
Tool taper cleaning system.
Tool measurement laser for diameter and length.
Infra-red Heidenhain probe TS 640 for parts measurement.
Electric handwheel.
NFS Server Software.
Operation mode 4.
Good condition.
Proposal Number: MV-5764
Click here to Contact Us for more details
5-Axis CNC Vertical Machining Centre - Hermle C 42 U
New in 2014 - Heidenhain iTNC 530
2-Axis NC-Rotary Tilting Table:
Table size: Ø 800 x 630 mm
Table load capacity: max. 1400 kg
Longitudinal travel: X 800 mm
Cross travel: Y 800 mm
Vertical travel: Z 550 mm
Table rotation axis with torque drive: C 360°
Table tilting axis with helical tandem drive: A +130°/-130°
Rapids dynamic (version) up to:
X/Y/Z 60000 mm/min.
C/A 65 rpm.
A 25 rpm.
Spindle motor rating: 10/20 KW AC
Spindle speeds: 20 - 18000 rpm
Spindle torque 100%/20%: 87/180 Nm
Tool magazine positions: max.42 station
Tool taper: HSK-A63
Tool diameter with/without adjacent tools: max. 80/125 mm
Tool length: max. 300 mm
Tool weight: max. 8 kg
Chip to chip time: 4.5 sec.
Machine weight: approx. 12500 kg
Machine size, approx. (L x W x H) 5000 x 2450 x 3100 mm
Equipped with:
BLUM Laser tool measurement and tool breakage control; Position measuring system direct X,Y,Z, resolution 0.0001 mm; Positional tolerance Tp X,Y,Z 0.008 mm; Rotating clear view window; Electrical heat compensation; RENISHAW touch probe; Dynamic version with 60 m/min + acceleration 10 m/s²:
Run hours:
Drives on 30989h. Axes moving 14000h. Control 31600h. M/C on 31081h. Program 13855h. Spindle 13197h.
Very good condition.
The machine is producing very accurate parts.
Immediately available.
Proposal Number: MV-6328
Click here to Contact Us for more details
5-Axis Horizontal Machining Centre with Pallet changer
MCM Tank 1300 5-Axis
New in 2017. Siemens 840D solution line. Twin pallets 630 x 800 mm. Work weight max. 1500 kg. NC rotary table - 4th axis B-Axis 360° / 0.001°.
NC-Tilting head 5th axis A-Axis +80°/-95° / 0.001°
X 1300 mm
Y 1400 mm
Z 1400 mm
Feeds and rapids to 50000 mm/min. Spindle drive 40/52 KW. Spindle speeds to 10000 rpm. Tool taper ISO 50. 199 tool ATC. Linear scales for higher accuracies. Renishaw probe. Chip conveyor. CTS 65 bar. Beautiful machine – excellent condition. Operating hours 13713 - 10/2022). Spindle Working hours 7238 (10/2022). Inspect under power.
Proposal Number: MH-6155
Click here to Contact Us for more details
Makino a61nx-5E
5-Axis Horizontal Machining Centre - High Speed & High PrecisionYear of manufacture 2019 - Fanuc - Makino PRO 5 CNC, 2 x pallets 400 x 400 mm, 2-Axis NC-Rotary-/Swivelling table, C-Axis 360° / 0.0001°, B-Axis -110° ~ +180° / 0.0001°, Workpiece diameter max. 700 mm, Workpiece height max. 400 mm, Workpiece weight 150 kg, X 730 mm, Y 730 mm, Z 680 mm, Feeds to 50000 mm/min. Rapids to 60000 mm/min. Spindle drive motor rating 60/80 KW. Spindle speeds 300 - 24000 rpm. Spindle torque max. 62 Nm. Tool taper HSK-A63. 60 station ATC. Coolant through the spindle 30 bar, 3D model of working area. Parts probing. Full guards. Coolant unit
Proposal Number: MH-6241
Click here to Contact Us for more details
Mandelli Spark 3500X
5-Axis Horizontal Machining Center with Pallet changerNew in 2018. Siemens Sinumerik 840D. Number of pallets 2. Pallet size 1250 x 1600 mm. Pallet load capacity max. 5100 kg. 4th axis 0.001° NC rotary table. 5th Axis NC-Tilting milling head A-Axis +80° ~ -120°. X 3500mm. Y 1850mm. Z 1800 mm. Feeds X,Y,Z up to 20000 mm/min. Rapids X,Y,Z up to 35000 mm/min. Tool taper HSK-A100 Spindle drive motor rating 46/67.7 kW Spindle speeds up to 6000 rpm. Spindle torque max. 1851 Nm 200 station tool magazine. Tool diameter max. 120 mm/425 mm Tool length max. 600 mm Tool weight max. 35 kg Coolant through the spindle 25/40/60 bar
Proposal Number: MH-6234
Click here to Contact Us for more details
Makino MAG 1
High Speed High Precision 5-Axis Horizontal Machining CentreYear 2015 - With only 300 spindle run hours this machine is AS NEW Fanuc CNC + Professional 3 Twin pallet changer Pallet size 800 x 100 mm B-Axis NC rotary table 0.001° A-Axis Tilting axis milling head -110°/+100° X 1520 mm Y 1100 mm Z 1350 mm Feeds and rapids to 50000 mm/min Spindle drive motor 80 KW Spindle speeds to 33000 rpm Tool taper HSK-80F 120 station tool magazine
Proposal Number: MH-6178
Click here to Contact Us for more details
