Horizontal Boring Mills - Floor Type

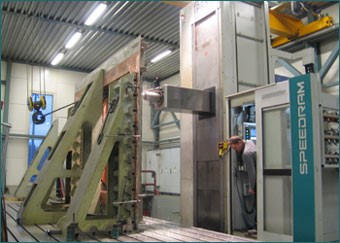

CNC Ram type Horizontal Boring Mill
Scharmann Heavycut 3

Built 1994 Siemens 880M control. Boring spindle diameter 180 mm. Ram size 425 x 425 mm

Travels X 13000 mm Y 3000 mm Z 1000 mm W 2000 mm

2 x Scharmann NC-Rotary Traversing Tables Table size 2500 x 3000 mm Table load capacity 65 t B-Axis 0.001° V-Axis 2500 mm

Spindle Spindle taper ISO 60 Reduction sleeve to ISO 50 Spindle power motor rating 90 KW Spindle speeds 3 - 1600 rpm. Spindle torque max. 18000 Nm

133 station tool magazine / tool changer

Head magazine – Head changer 2 x Scharmann facing heads P 500, 350 rpm, 8000 Nm P 600, 300 rpm, 8000 Nm

Large package of spare parts (worth approx. € 120000,--)

Machine can be inspected under power in factory.

Proposal Number: VB6581
Click here to Contact Us for more details

CNC Floor Boring & Milling machine with Tool Changer
WOTAN RAPID 2K

1987 with Siemens 850M control; X 4000, Y 2500, Z 1000, W 800; speeds 2-2000 rpm in 4 gear steps, 57 kw motor, 12130 Nm torque; 140 mm spindle dia, ISO 50; 40 station chain type toolchanger; with D'Andrea facing head, angle head, floor plates, safety guards, tooling and spares package - Excellent mechanically!

Proposal Number: VB-4721

Click here
and receive a full specification by email
