Grinding Machines - Conventional

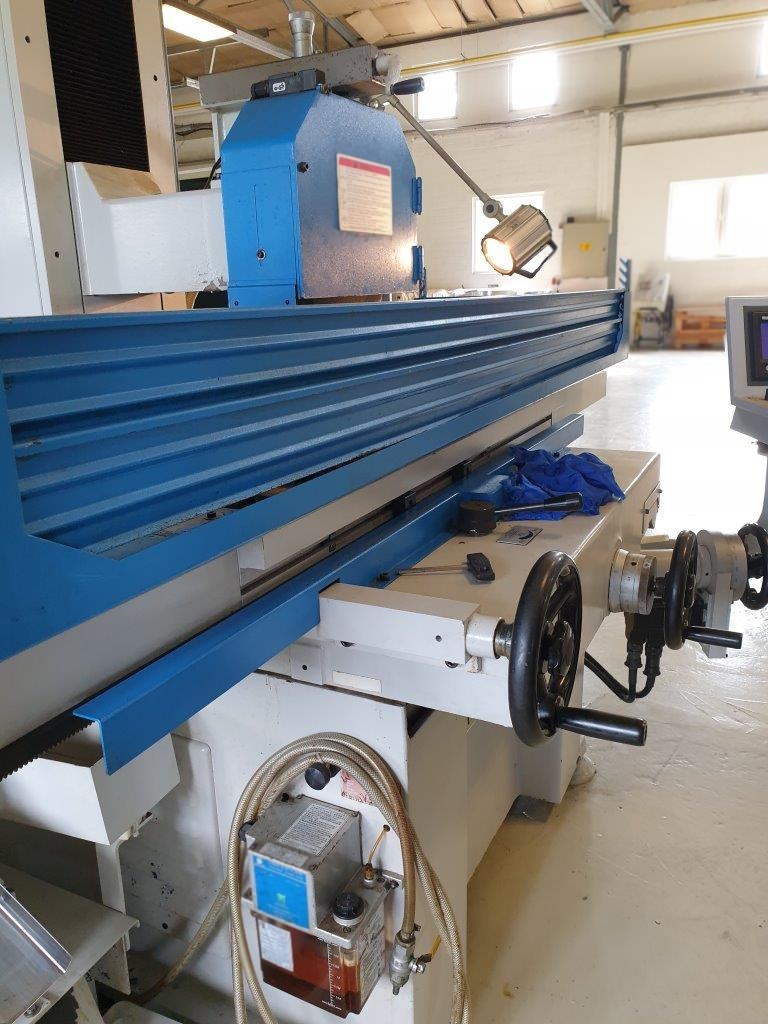

Surface Grinder

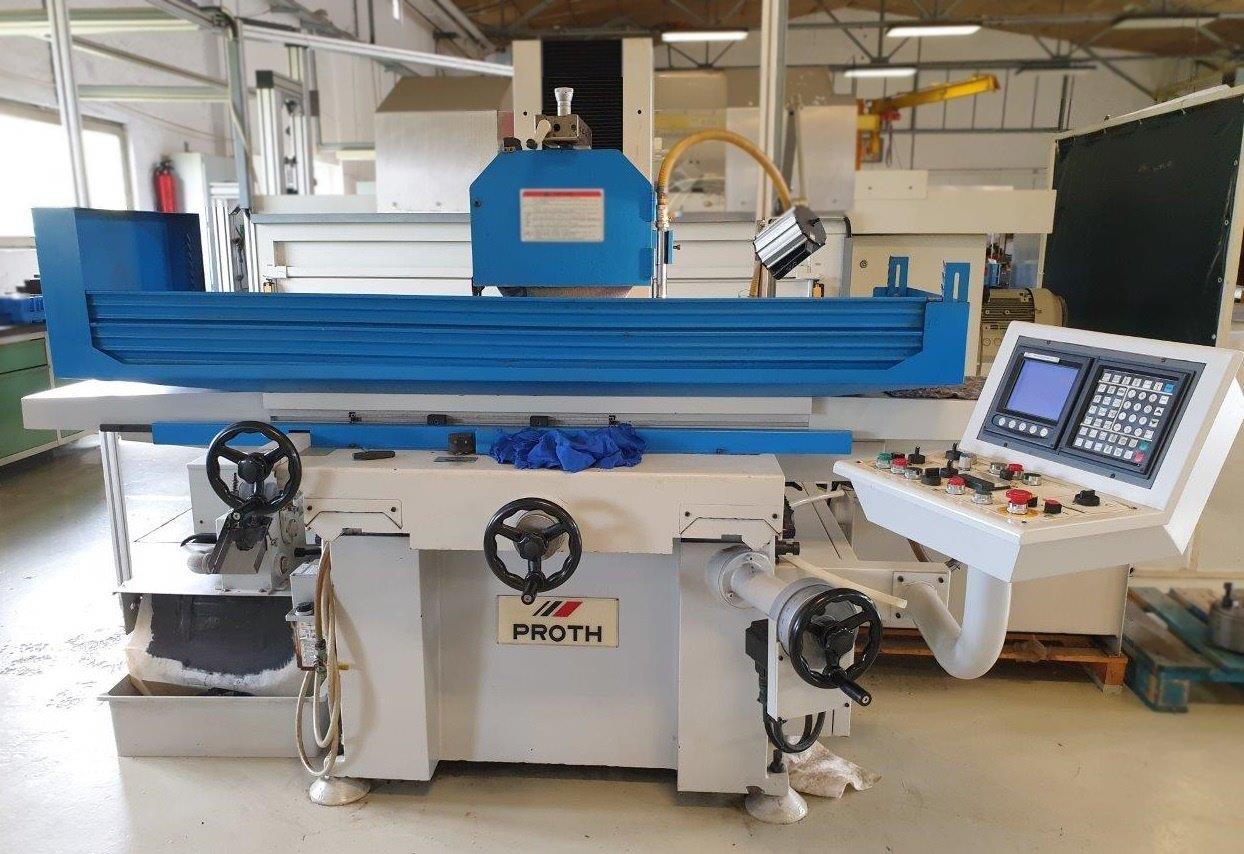

Proth PSGS 4080 AH

New in 2006
Conventional with programmable vertical downfeed

Table size: 800 x 400 mm
Magnetic plate size: 800 x 400 x 80 mm
Table load: max. 730 kg

Travels:
X 900 mm
Y 400 mm
Z 330 mm

Distance spindle nose - table: max. 600 mm
Distance table - grinding wheel: max. 422 mm
Distance magnetic plate - grinding wheel: max. 342 mm
Grinding wheel size: 355 x 38 x 127 mm

Spindle speeds: max. 3000 rpm

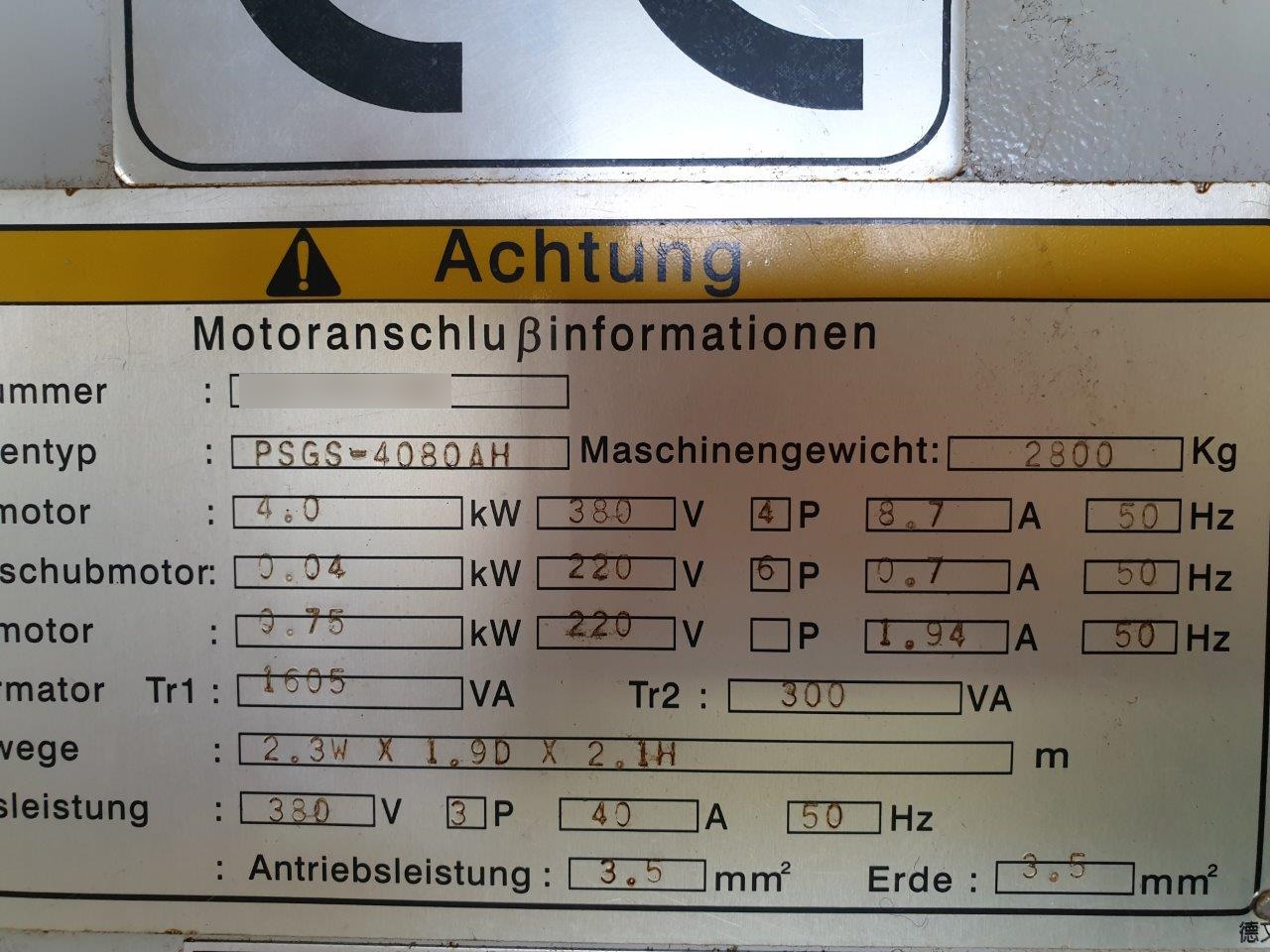

Spindle motor drive: 4 KW

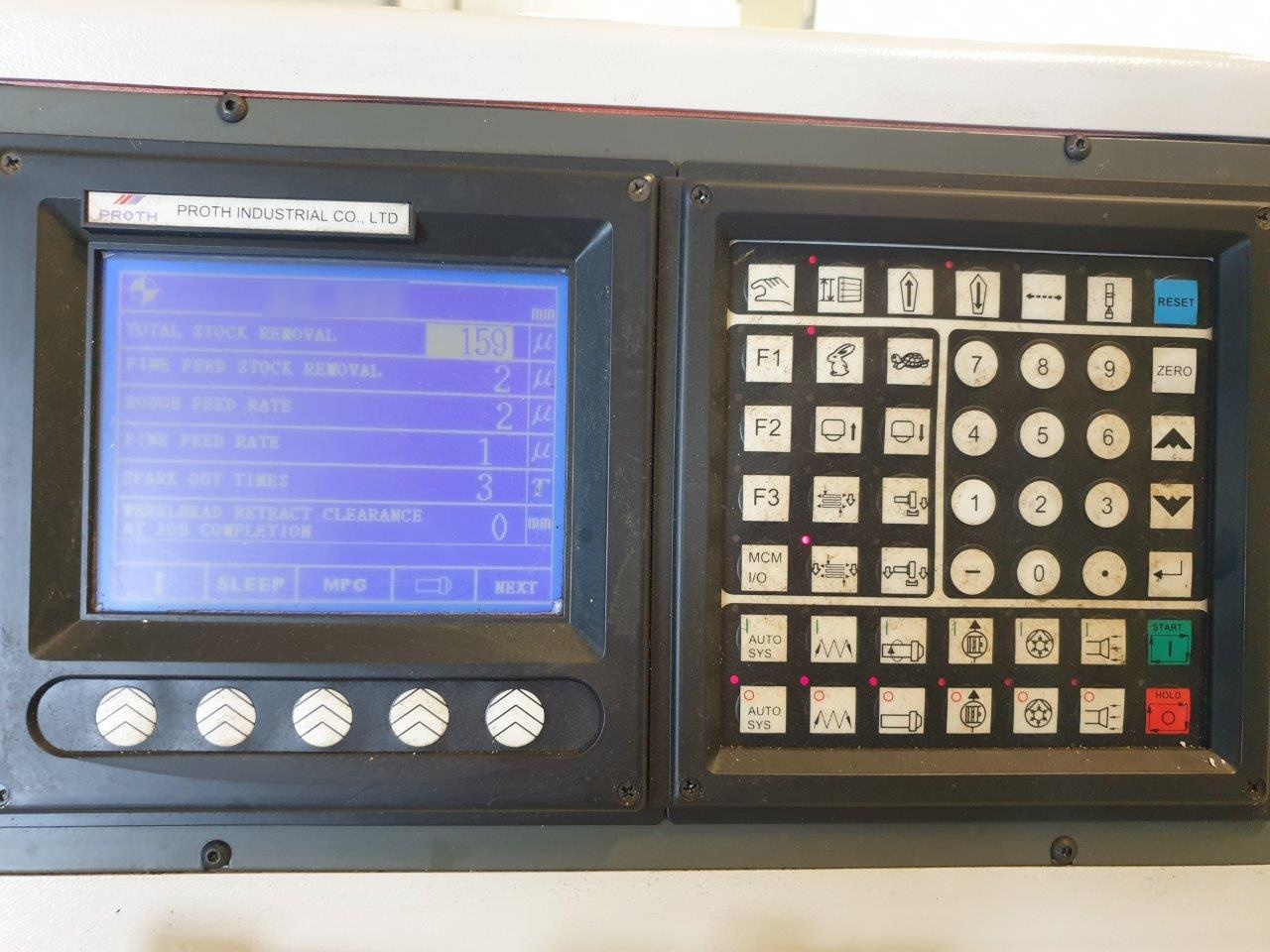

Computer controlled vertical travel

Machine size : L x B x H 2300 x 1900 x 2100 mm
Machine weight: 2800 kg

Equipped with:

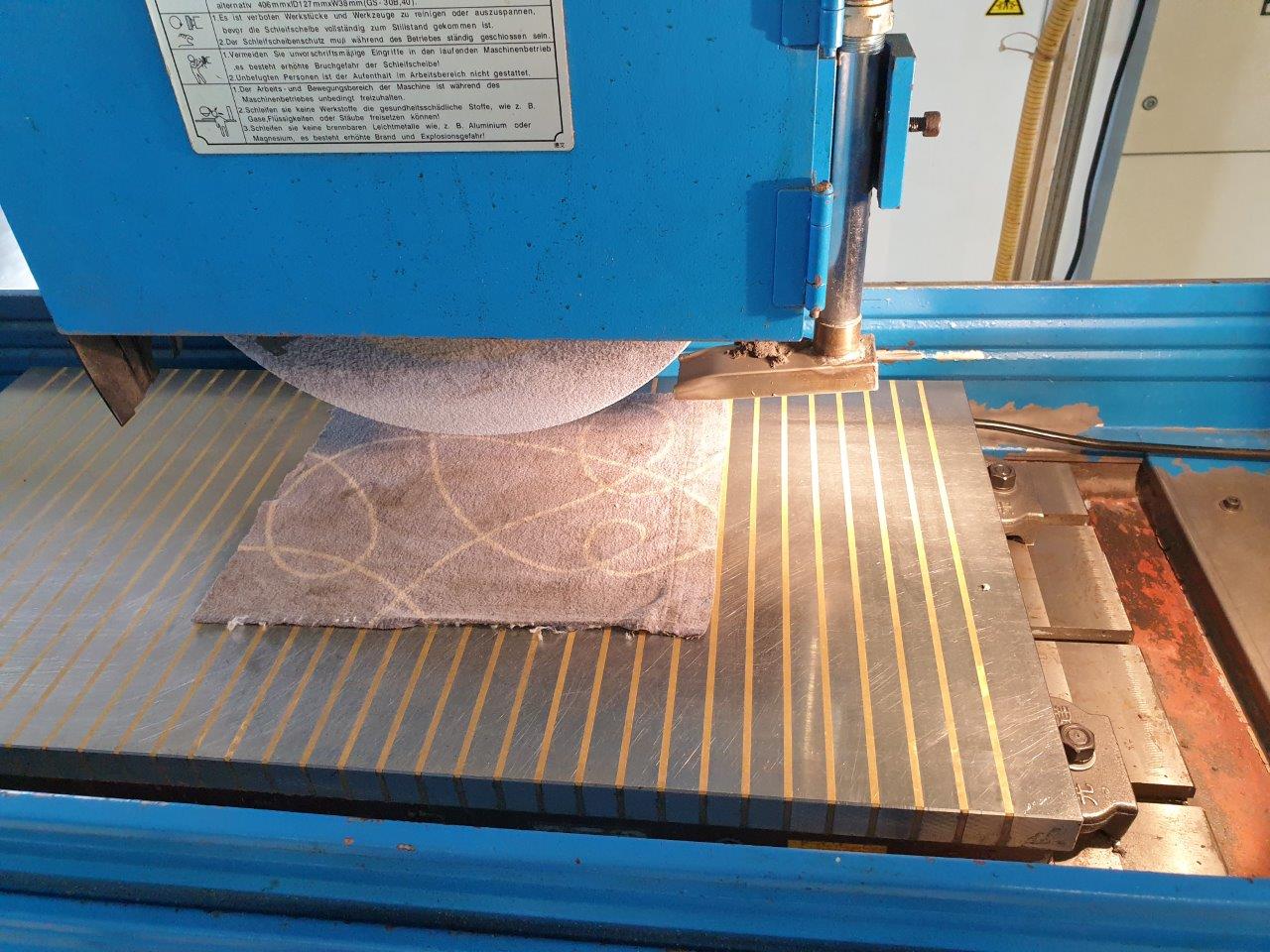

Electro-magnetic clamping plate.
Automatic de-magnetising.

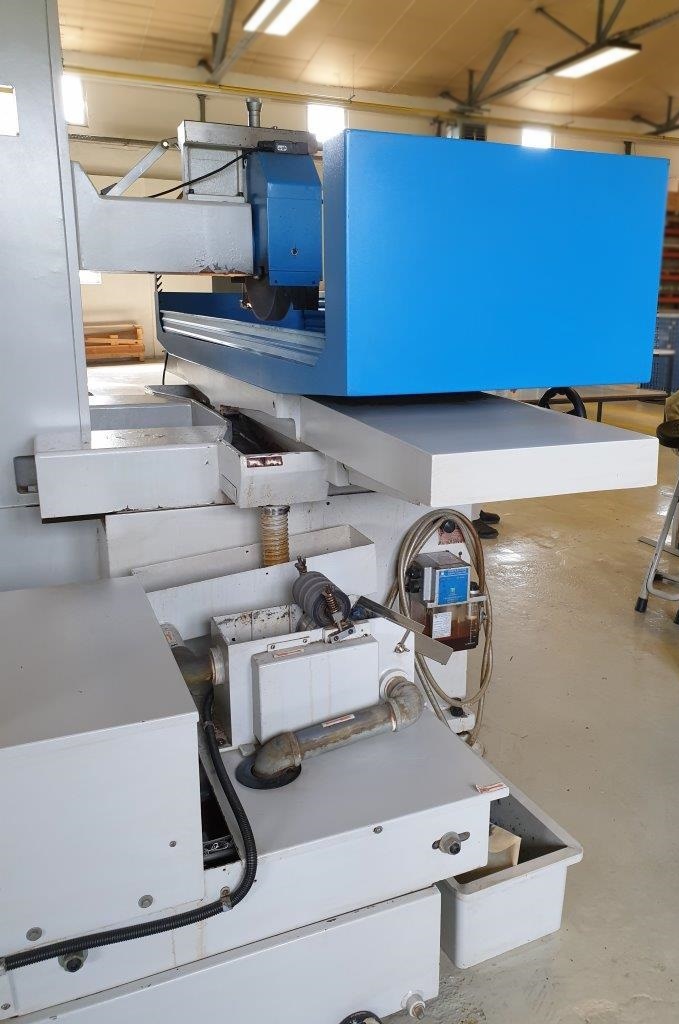

Coolant unit and suction unit.
Coolant unit with paper band filter and magnet filter.
Cross grinding.
Parallel dressing.
Balancing scales.
Electrical - Motorised rapid displacement vertical.
Grinding wheel flange.
Grinding wheel.
Balancing.
Halogen light.
Coolant and filtration unit.

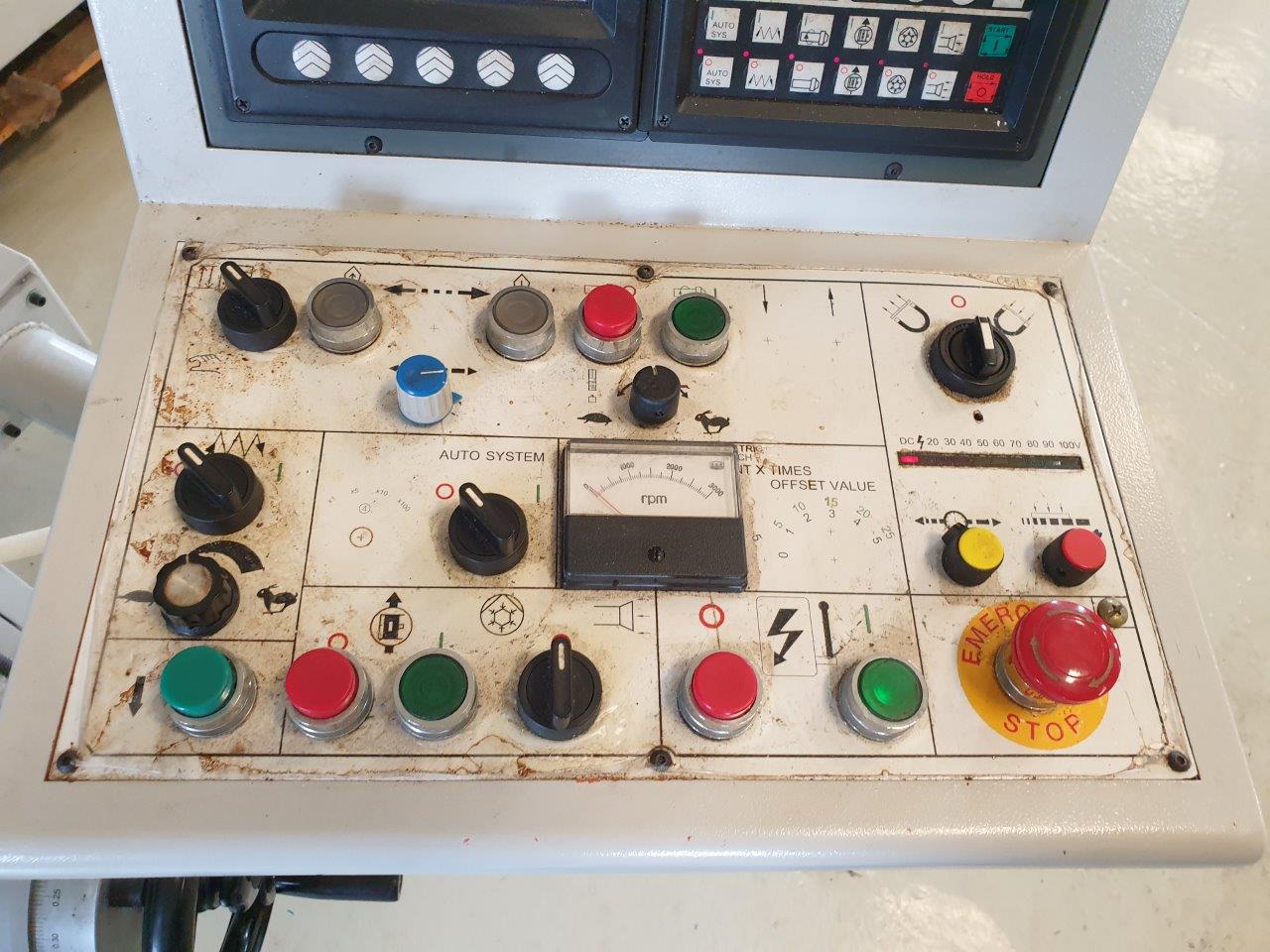

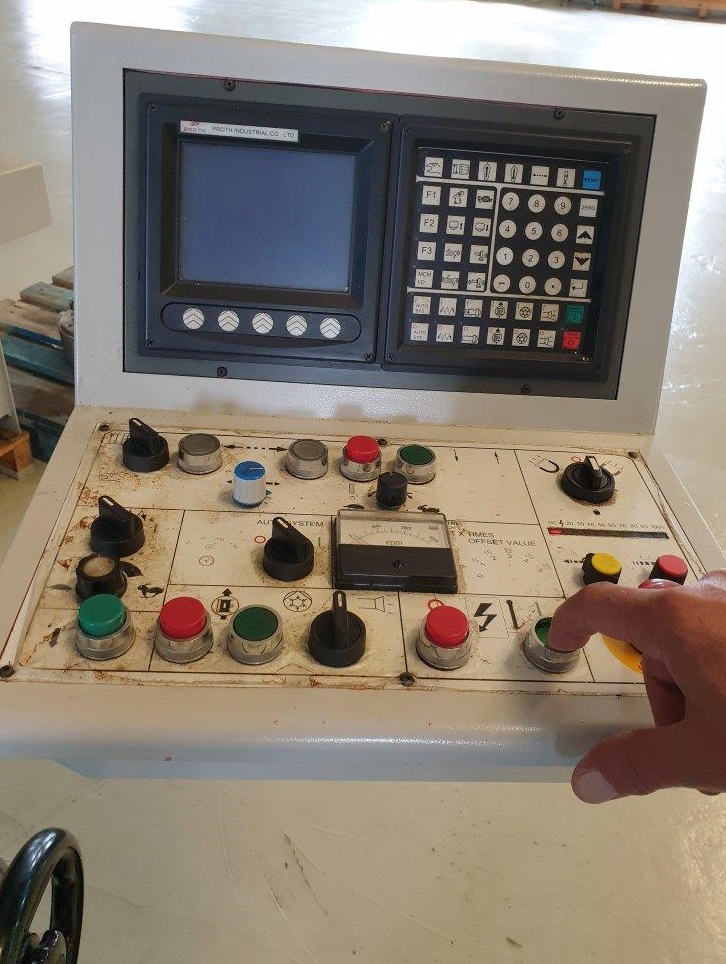

Auto cycle infeed adjustment.

Condition: Very good ~ Excellent.

Used in a special machine shop for single parts manufacturing.

Proposal Number V-7012

Interested? Contact us for a price quotation.

Proposal Number: V-7012
