Milling Machines - CNC

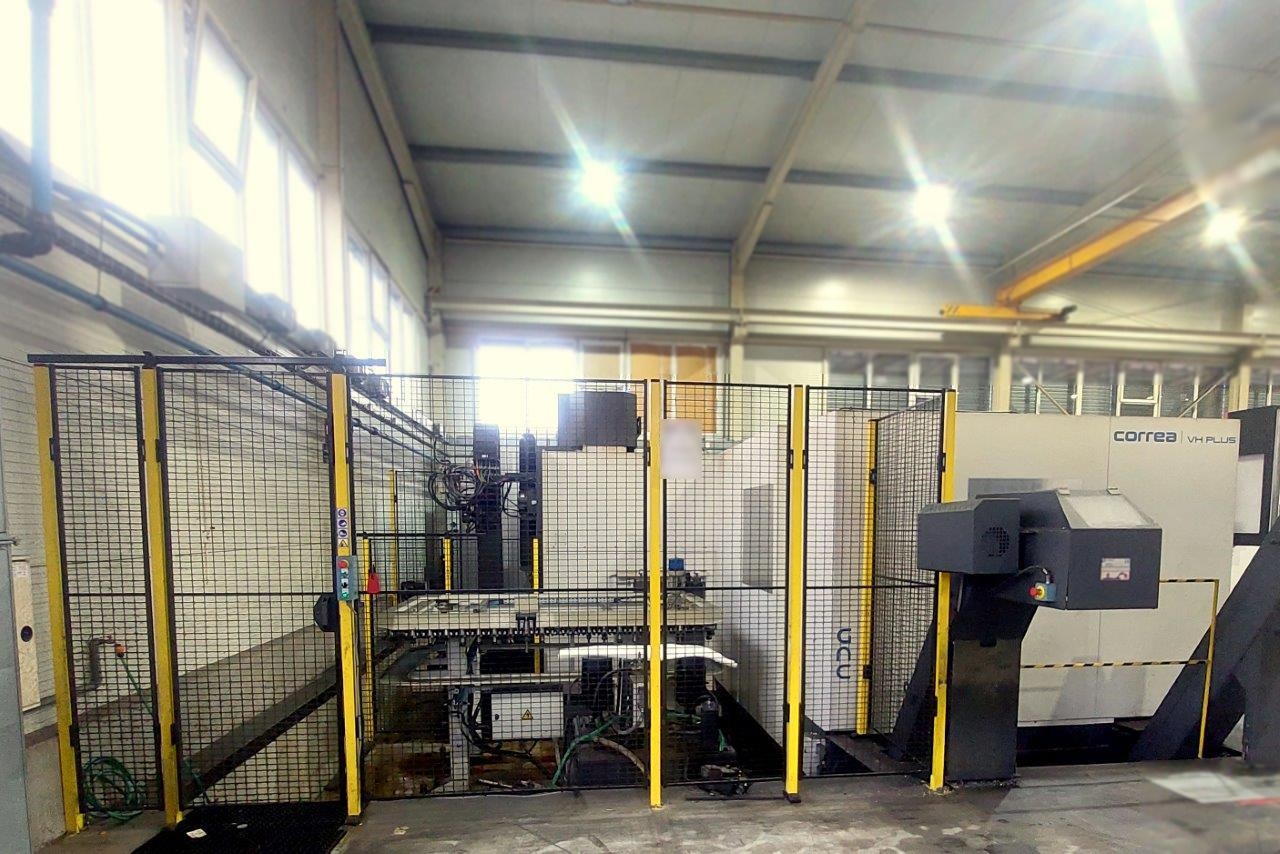

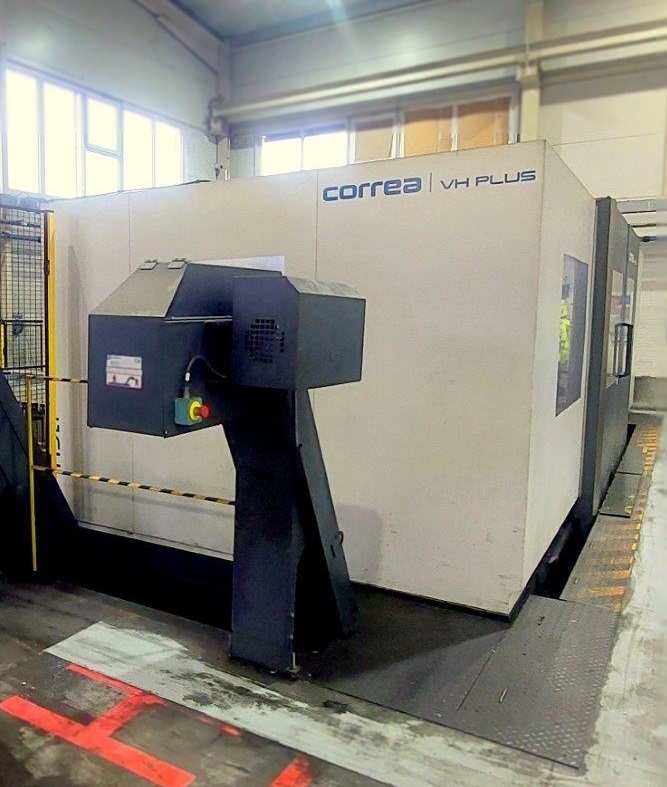

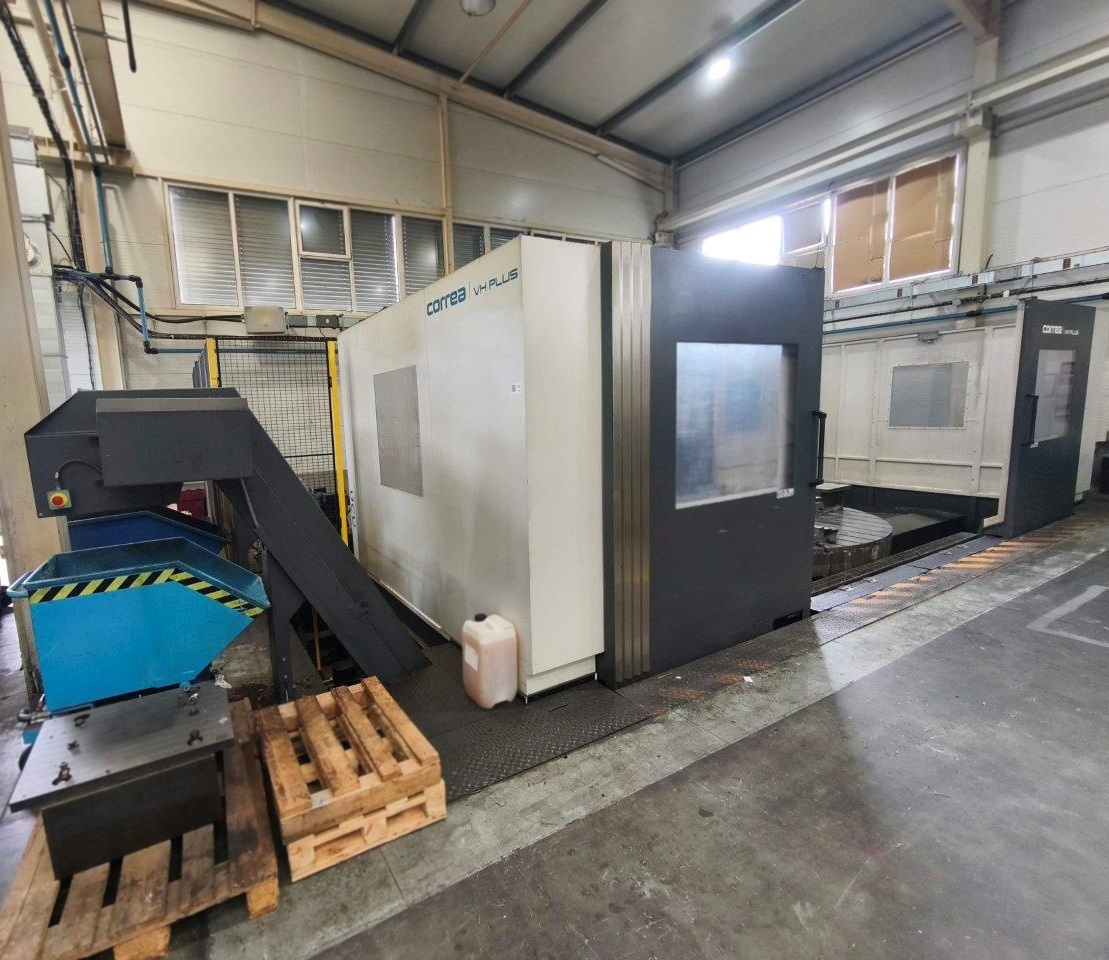

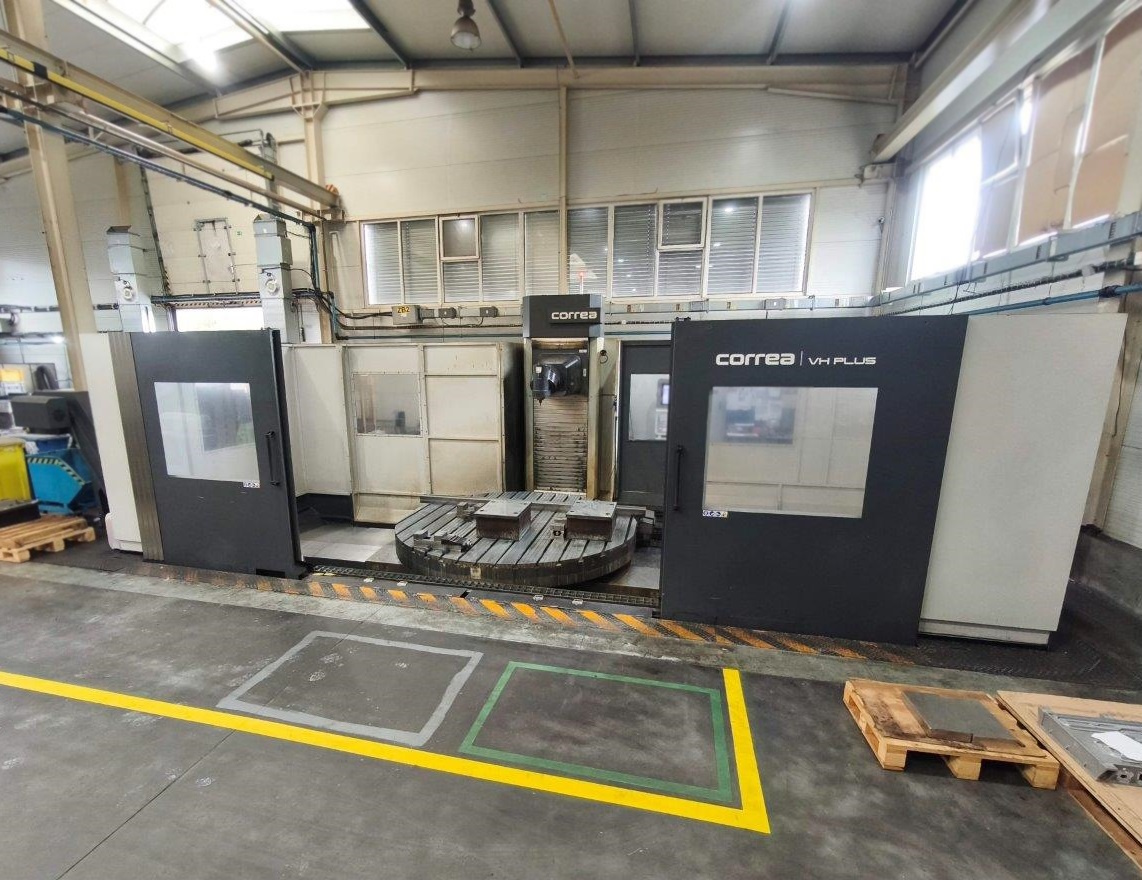

CNC Bedmill with rotary table and orthogonal milling head

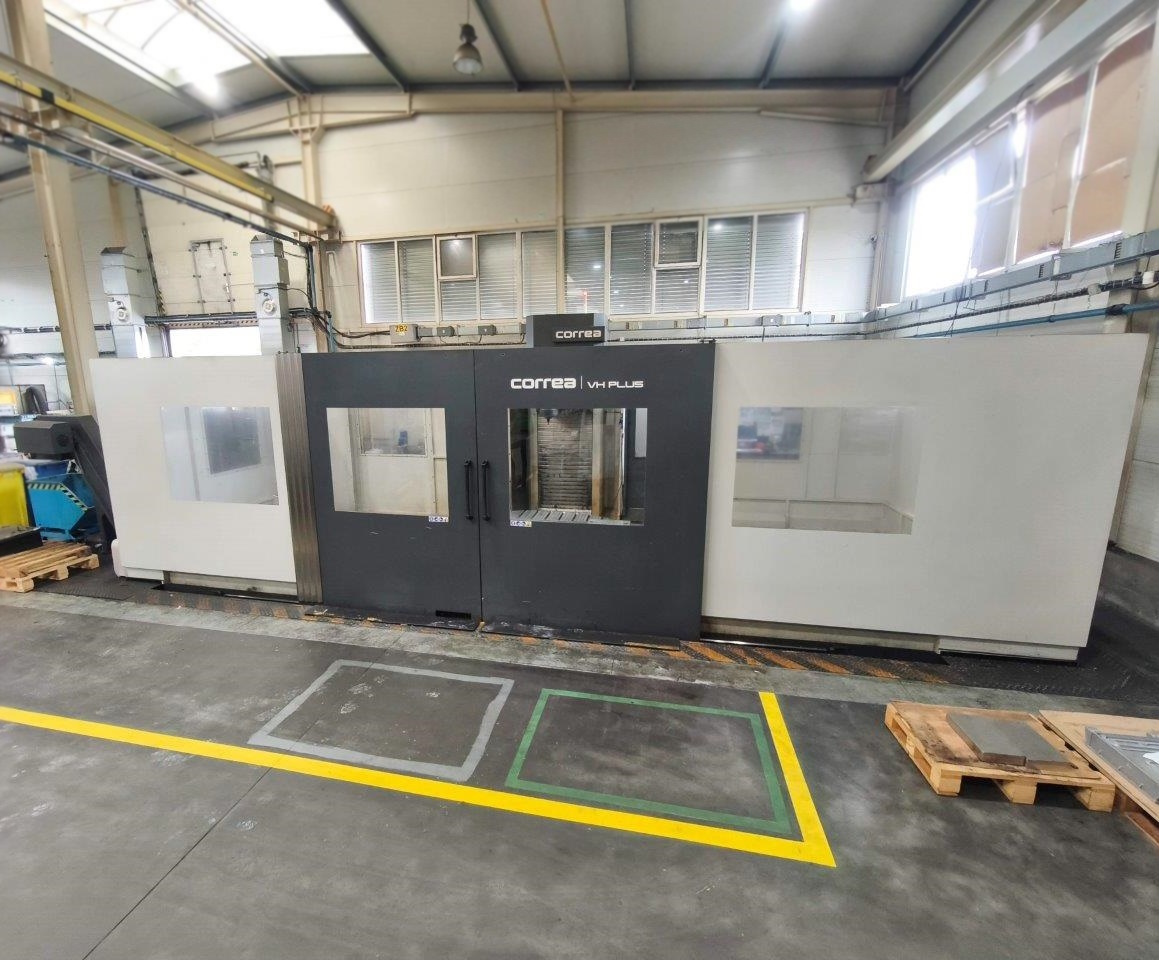

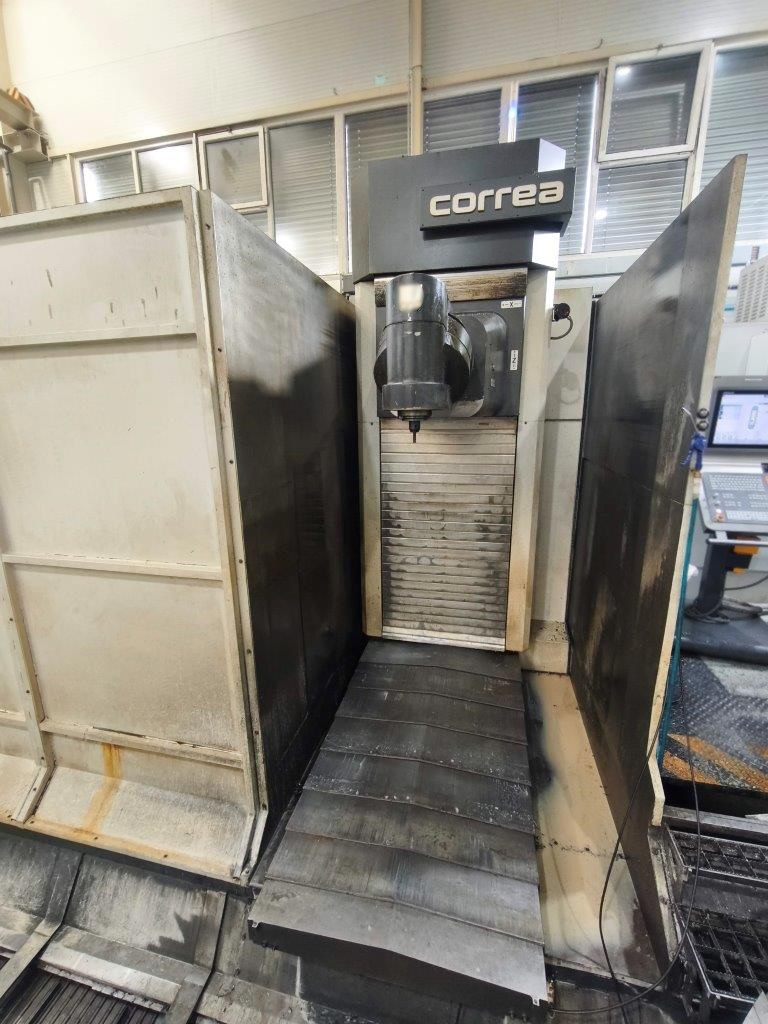

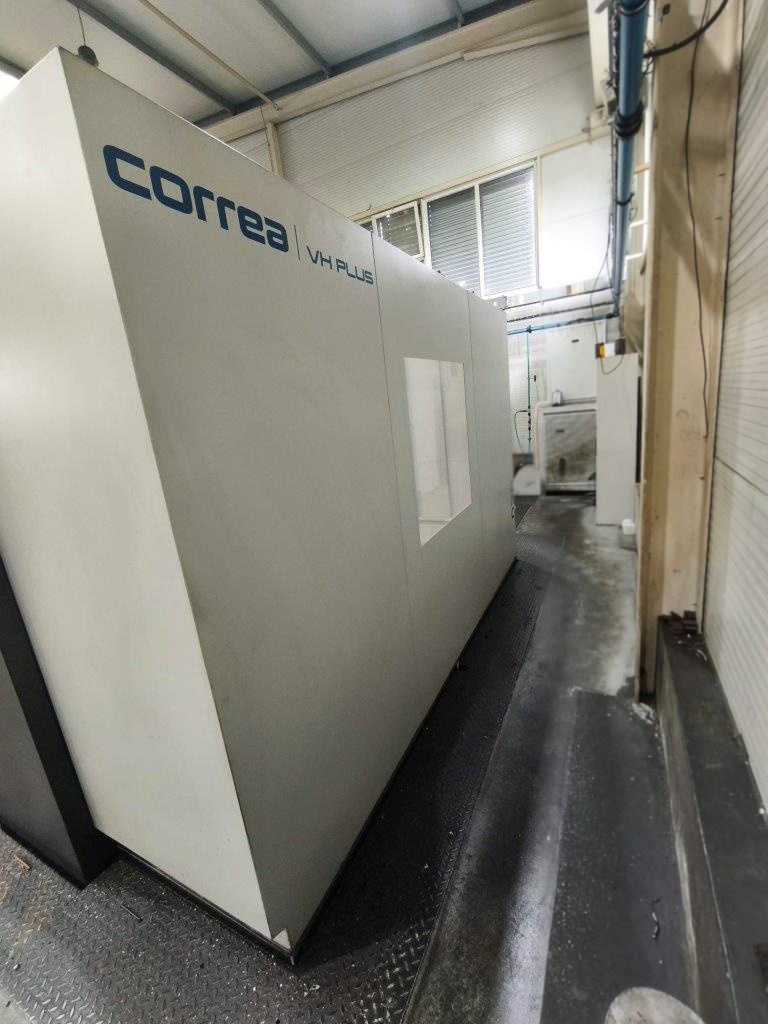

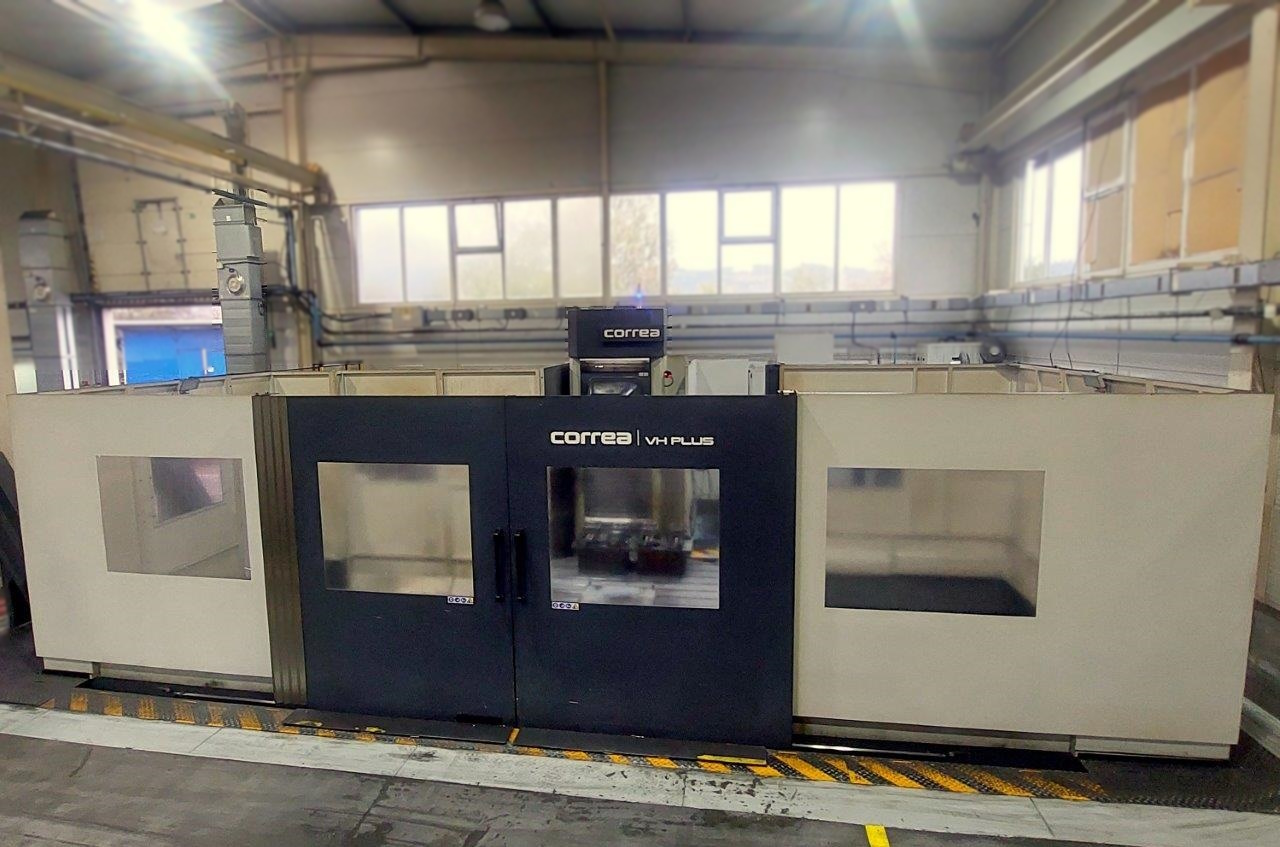

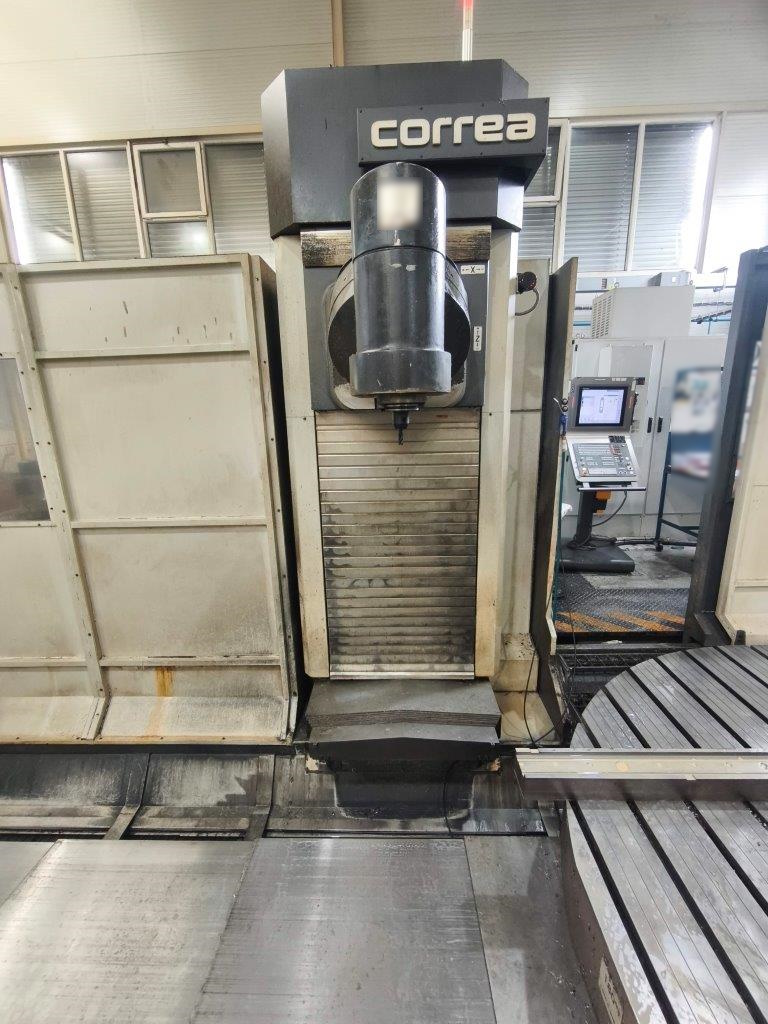

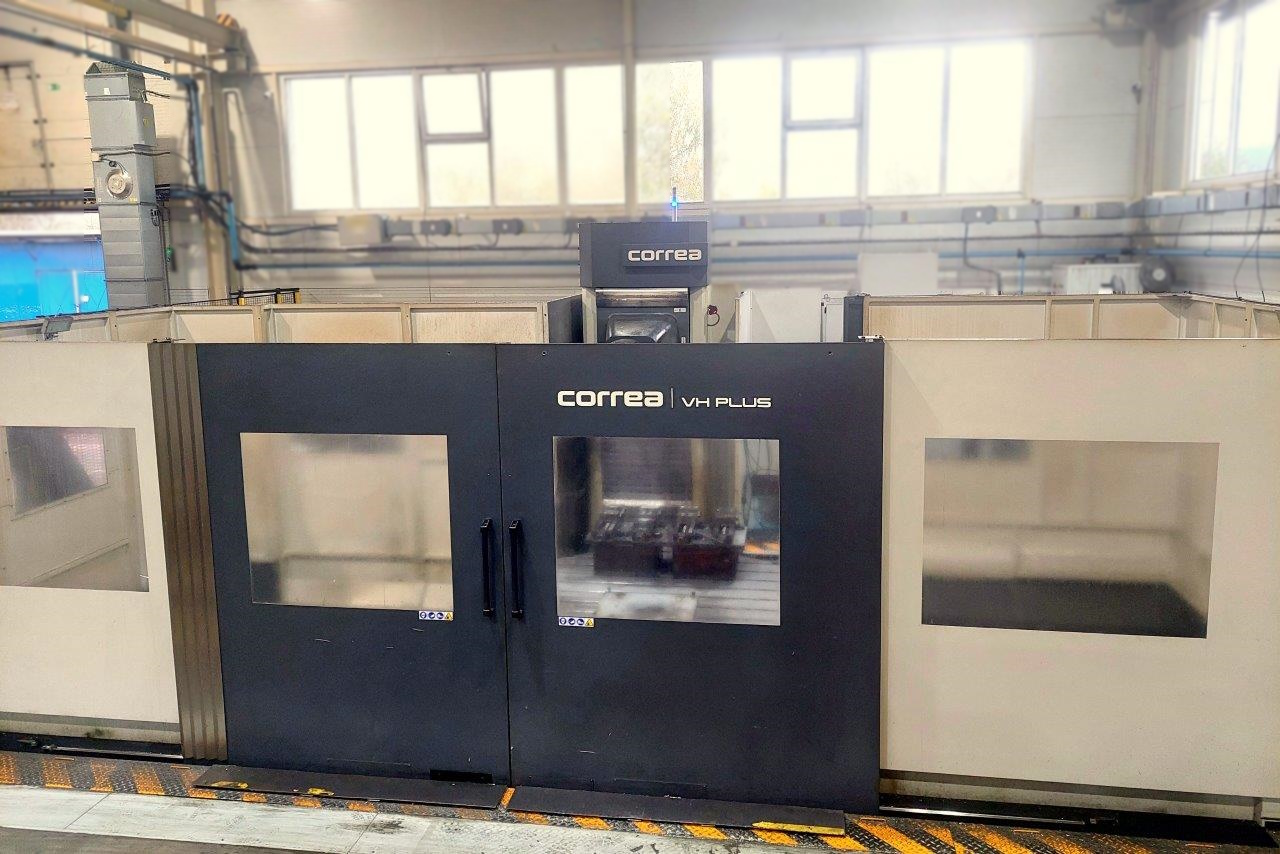

Correa VH-Plus 4000 MGM
Year of manufacture 2019

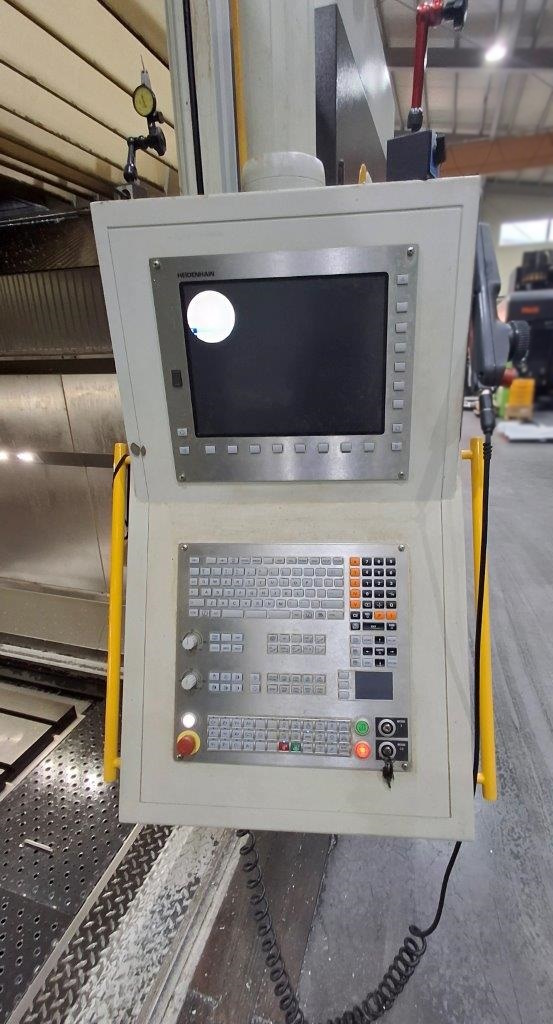

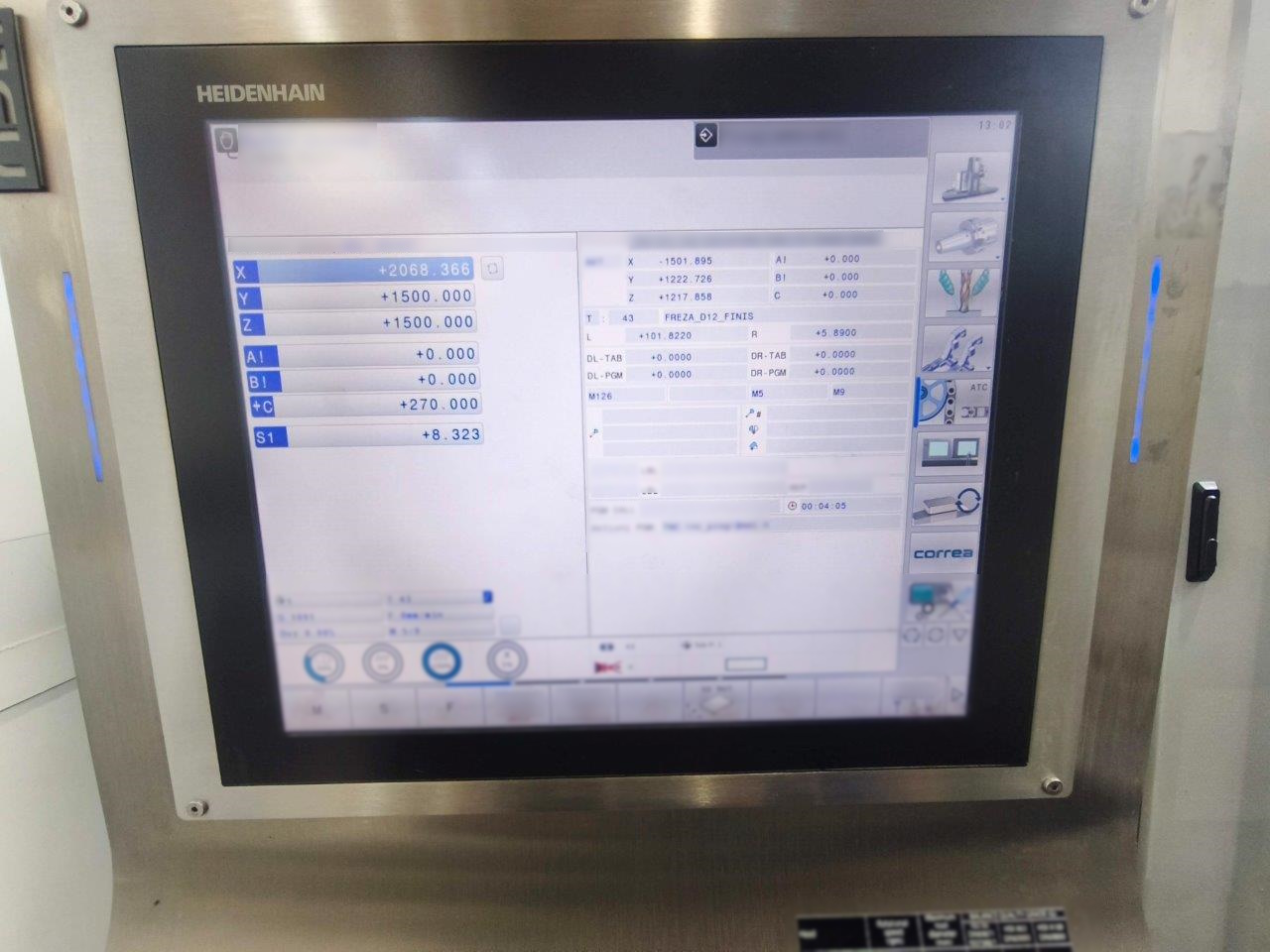

Heidenhain TNC 640

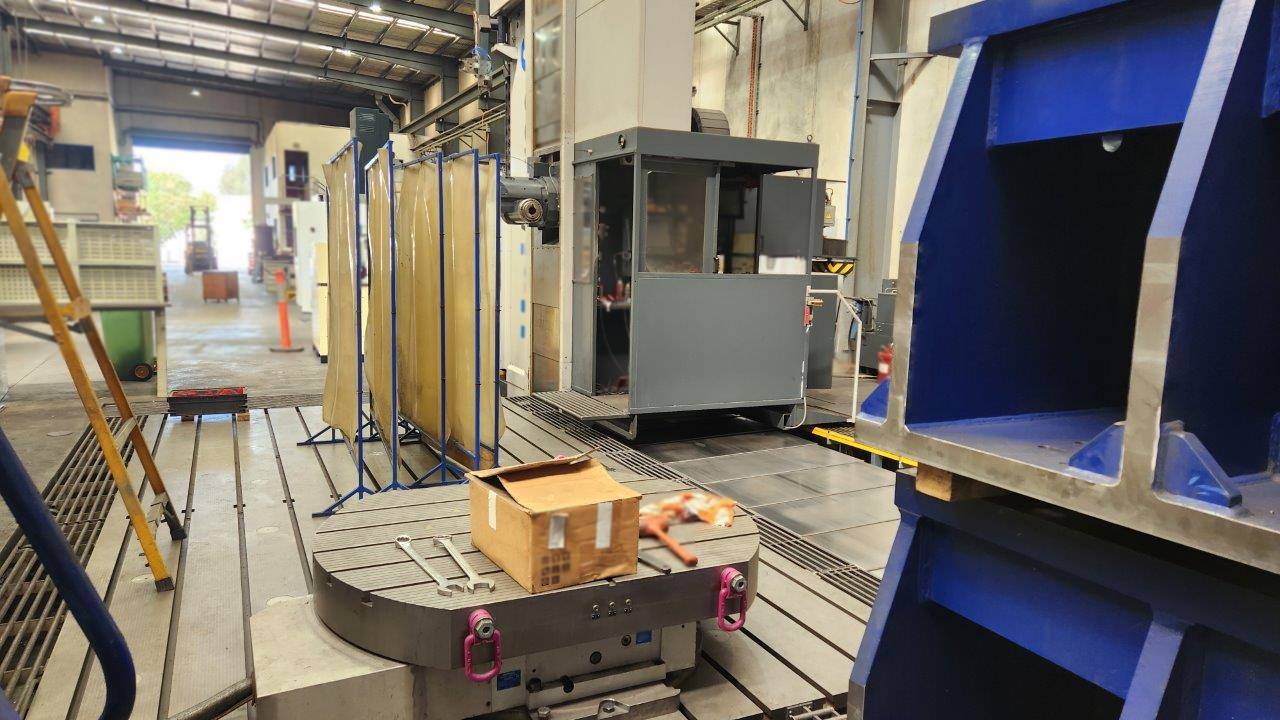

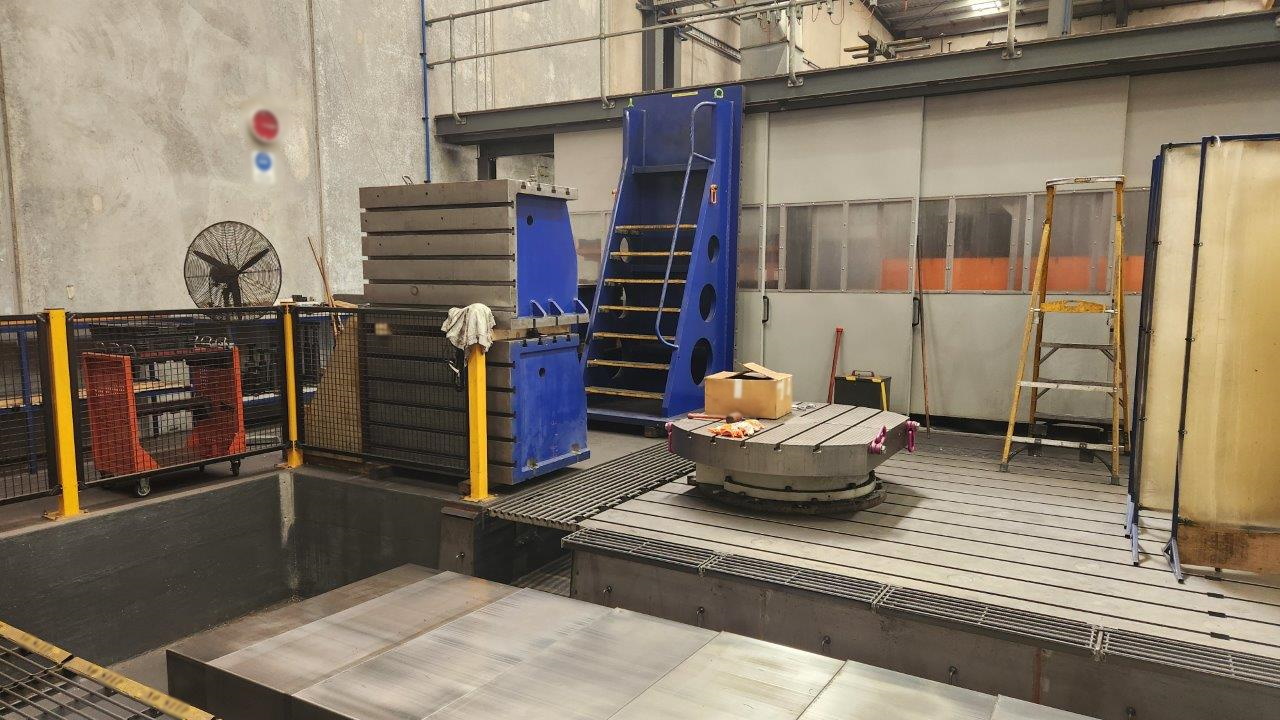

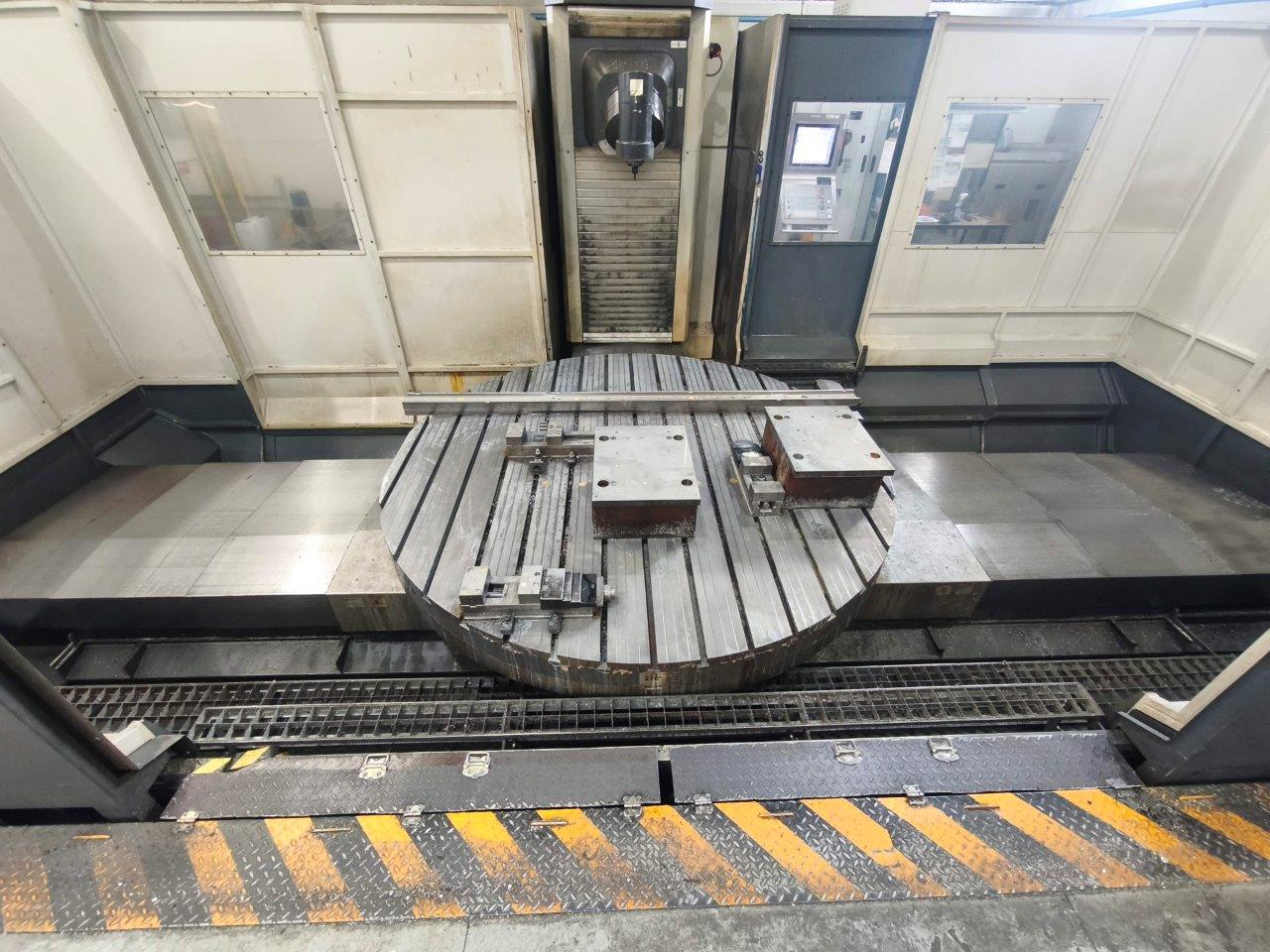

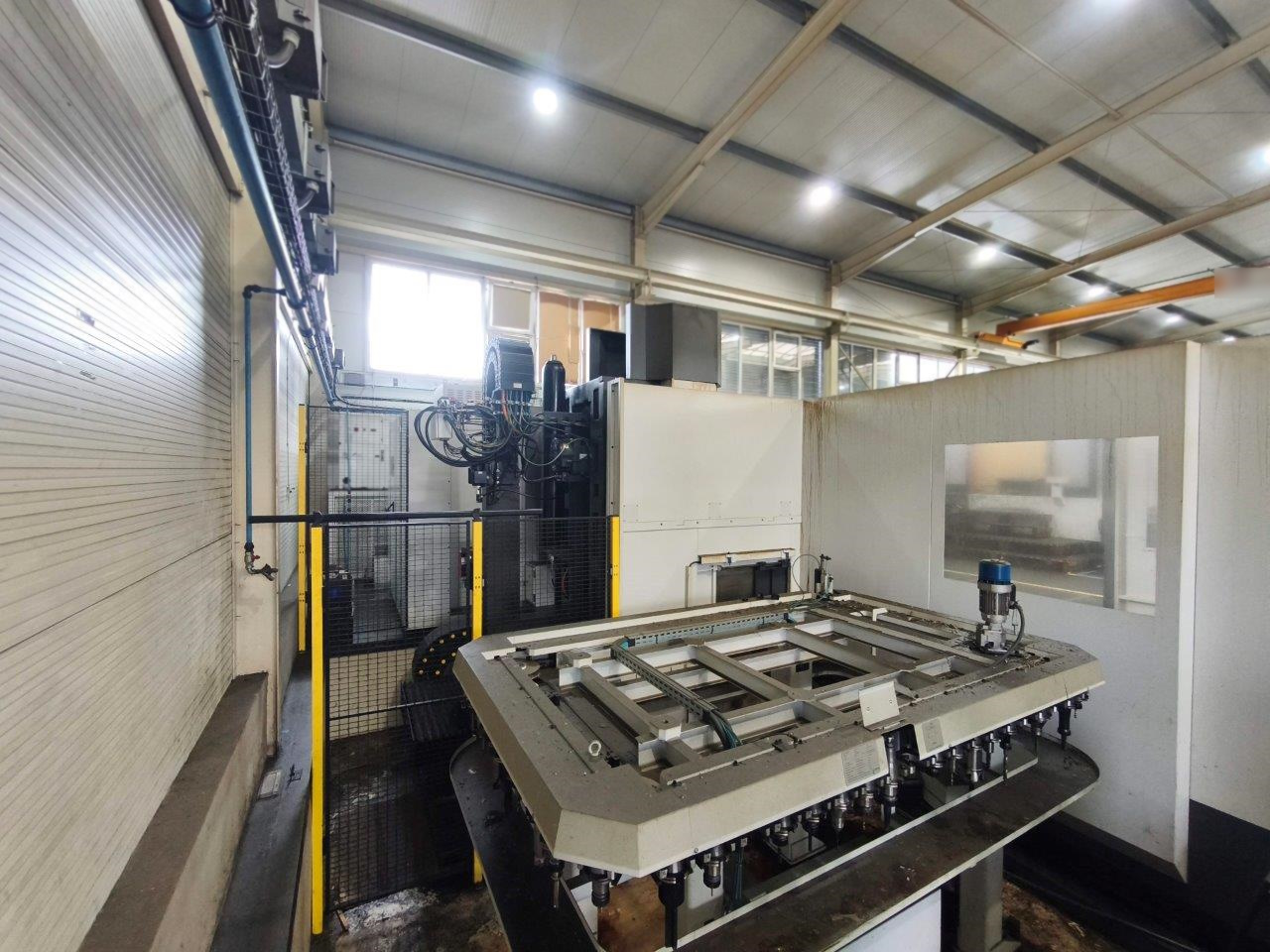

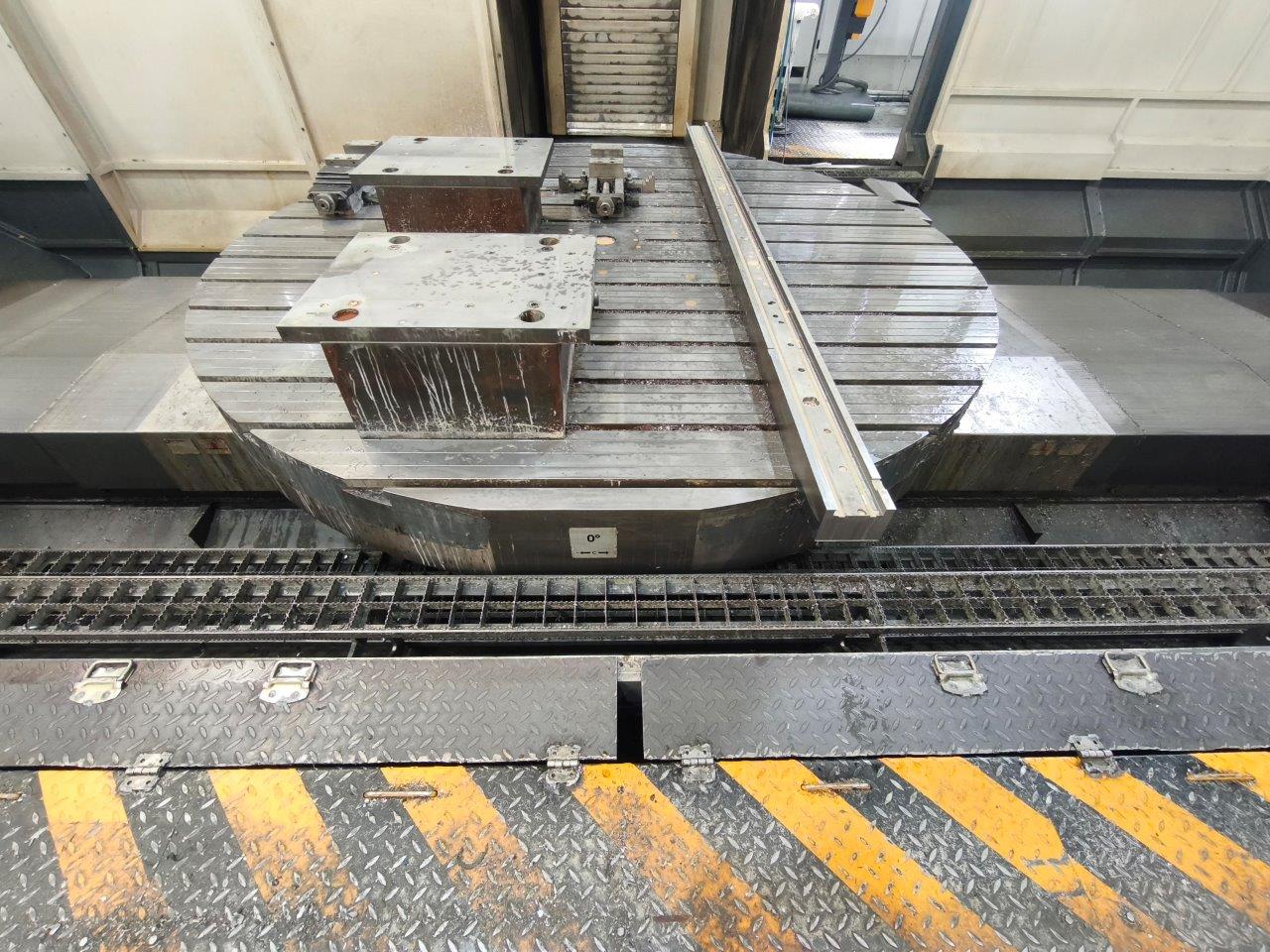

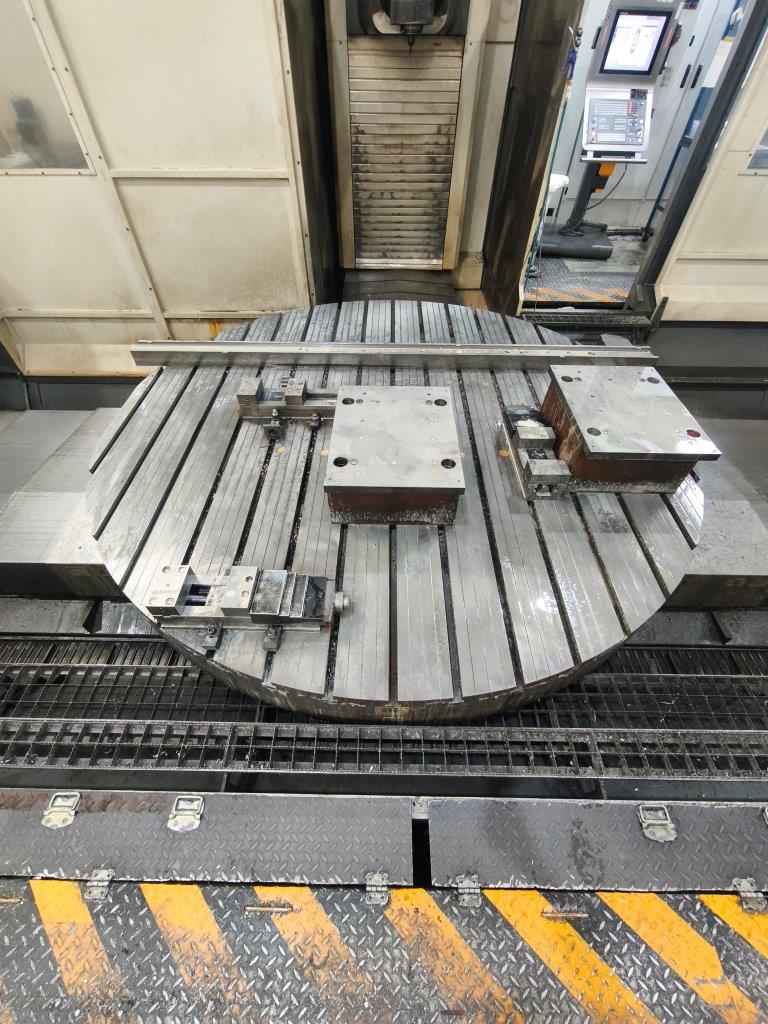

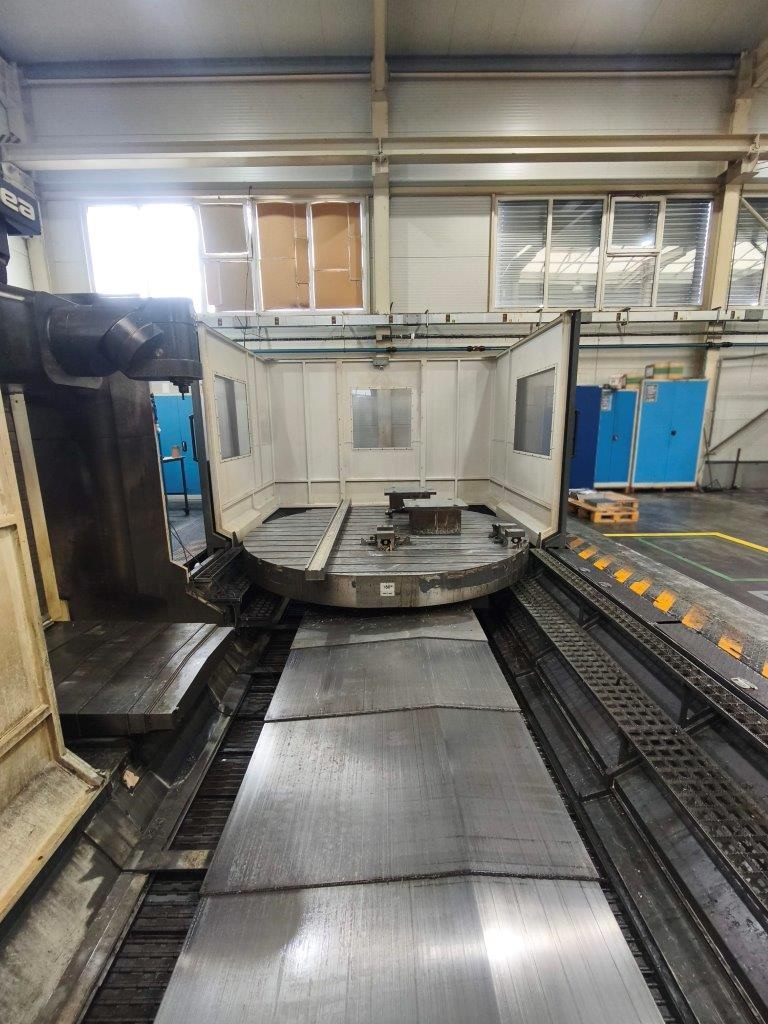

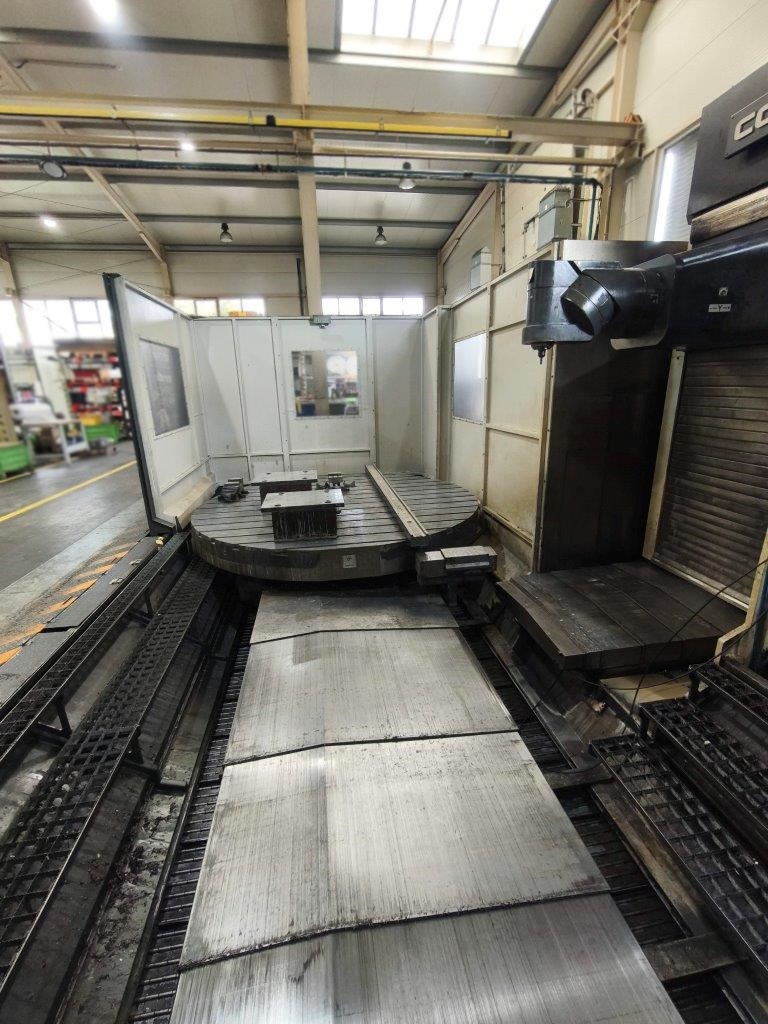

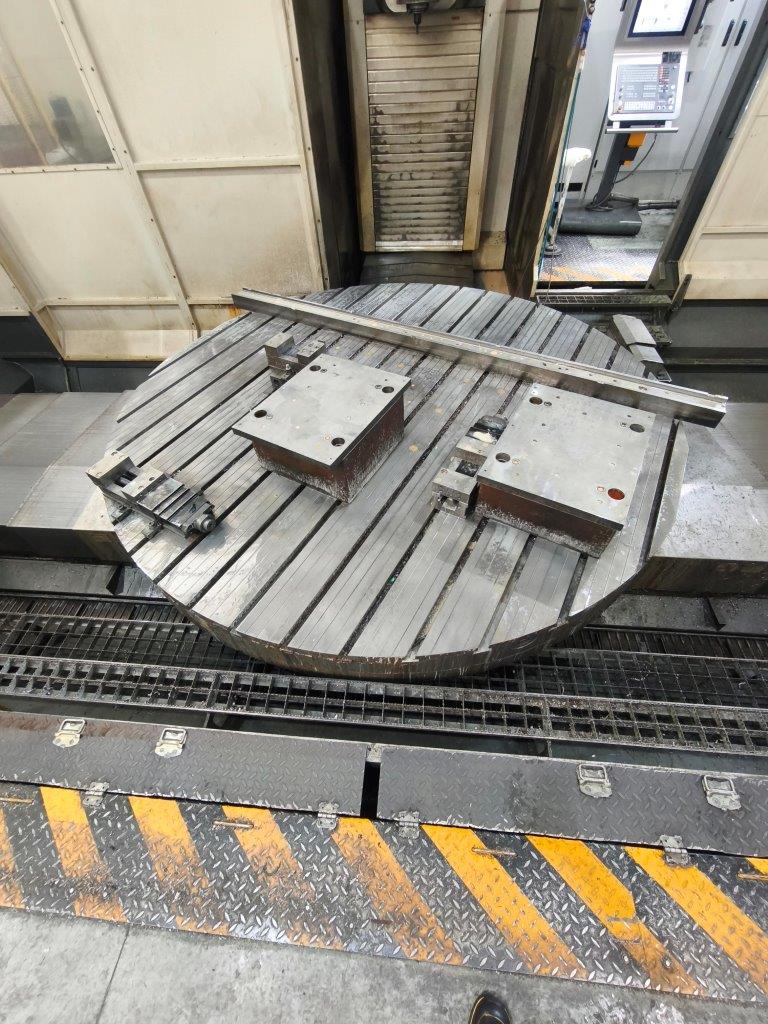

NC Rotary table
Rotary table clamping area 3000 x 3000 mm
Workpiece weight max. 20000 kg
B-Axis 360° / 0.001°
Longitudinal table travel 4000 mm
Headstock vertical travel 1500 mm
Mill slide cross travel 1500 mm
Spindle taper ISO 50
Spindle drive motor 37 KW
Spindle speeds max. 6000 rpm in 2 automatic gear steps
Torque max. 1300 Nm

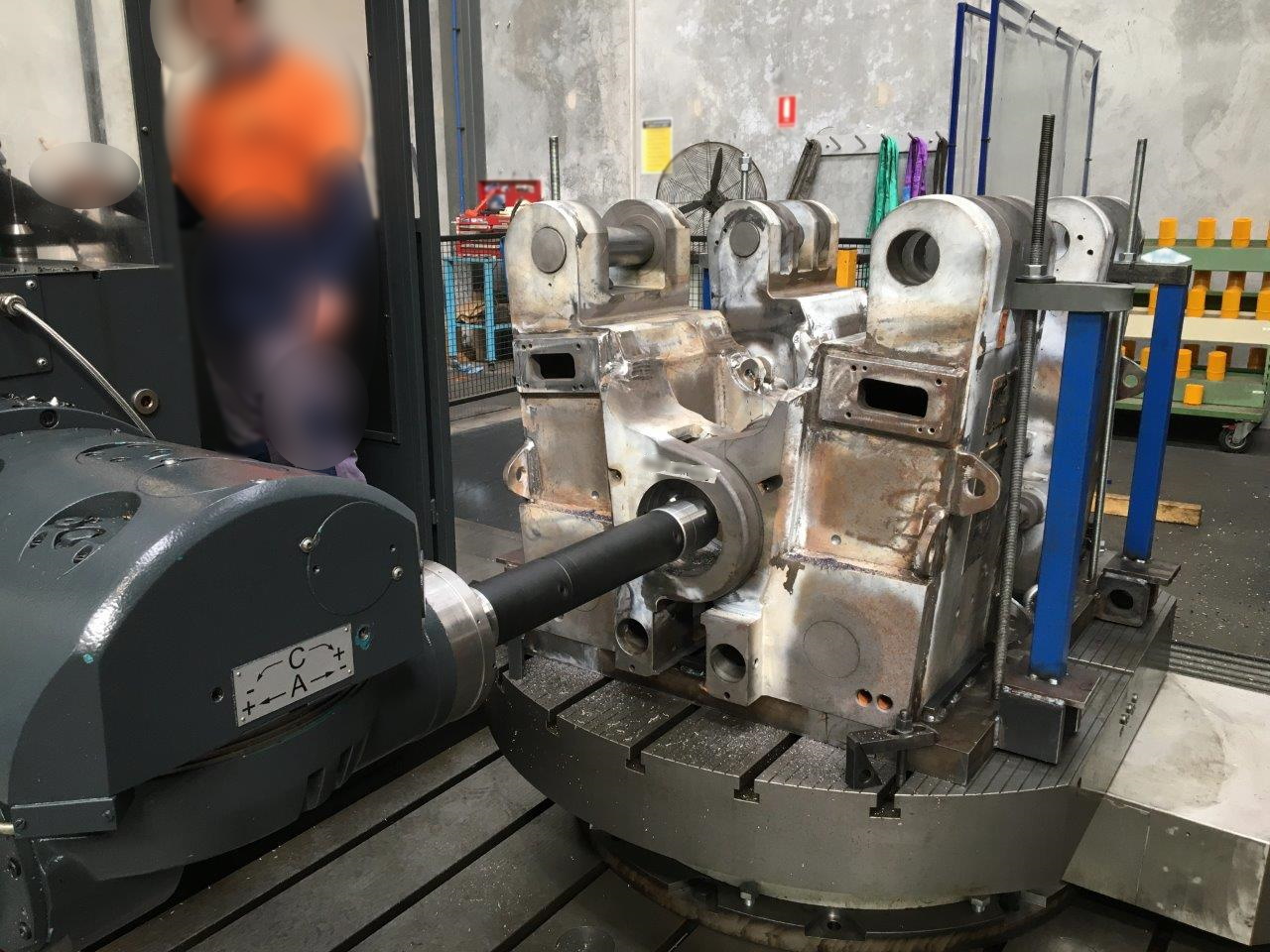

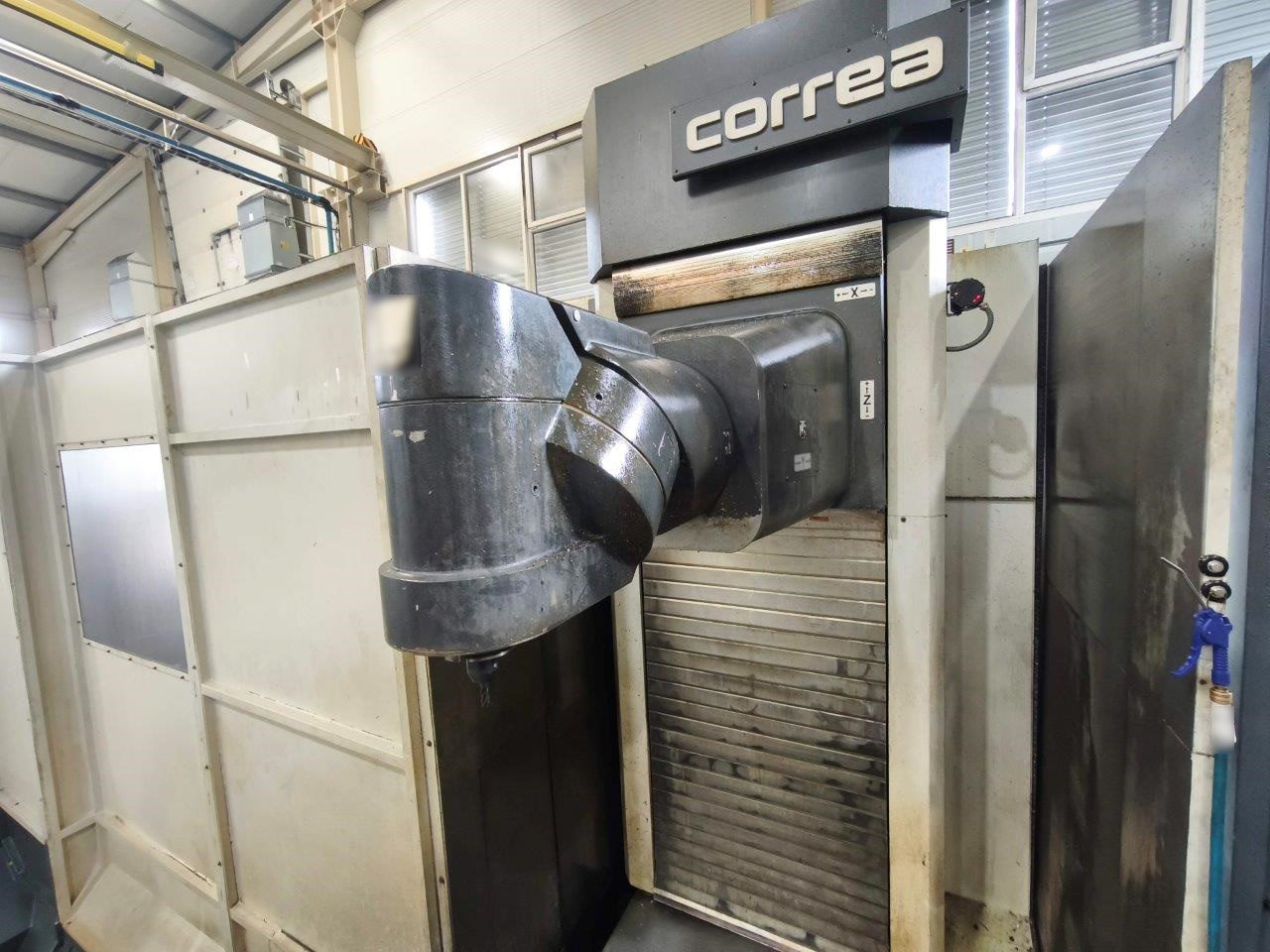

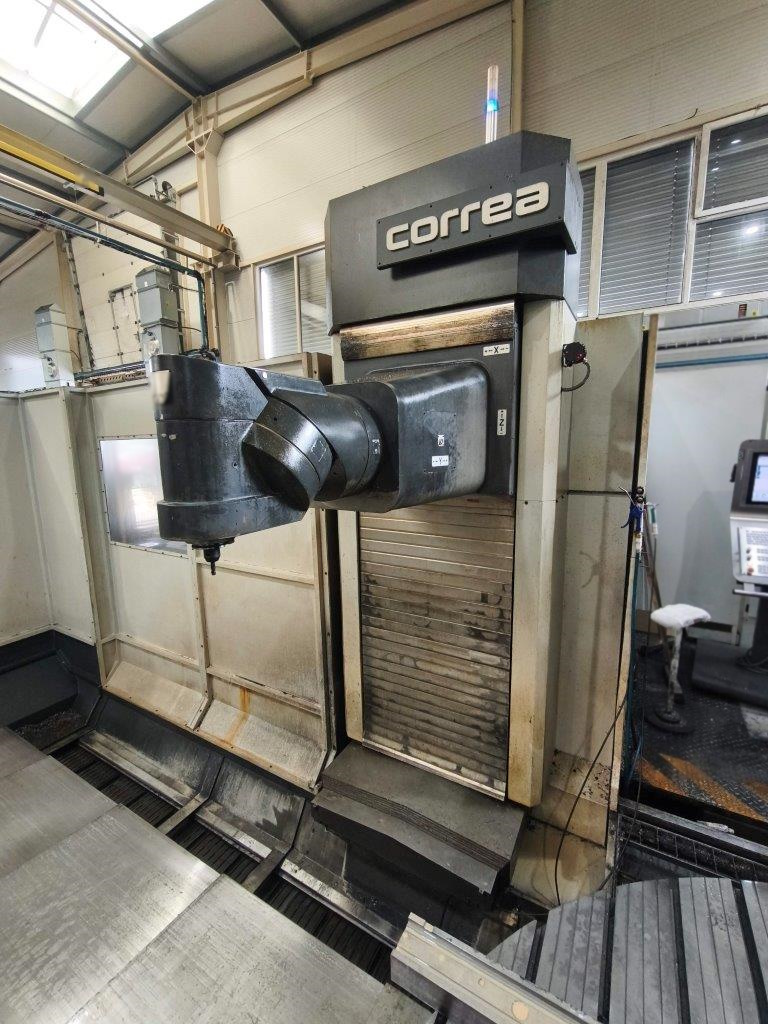

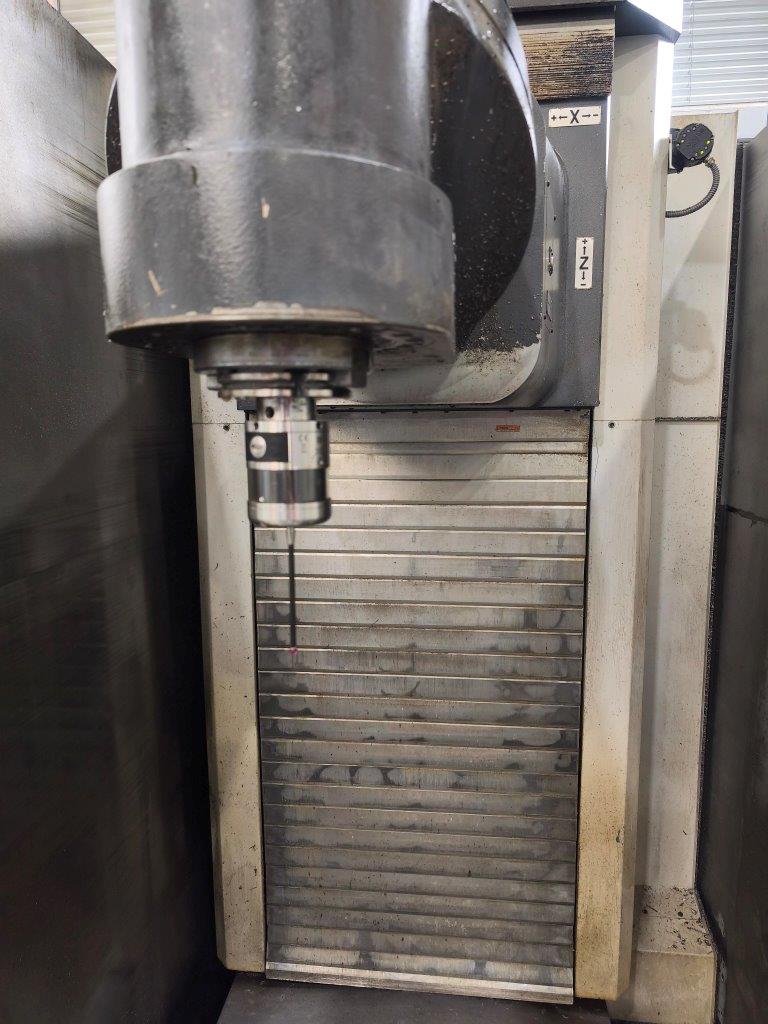

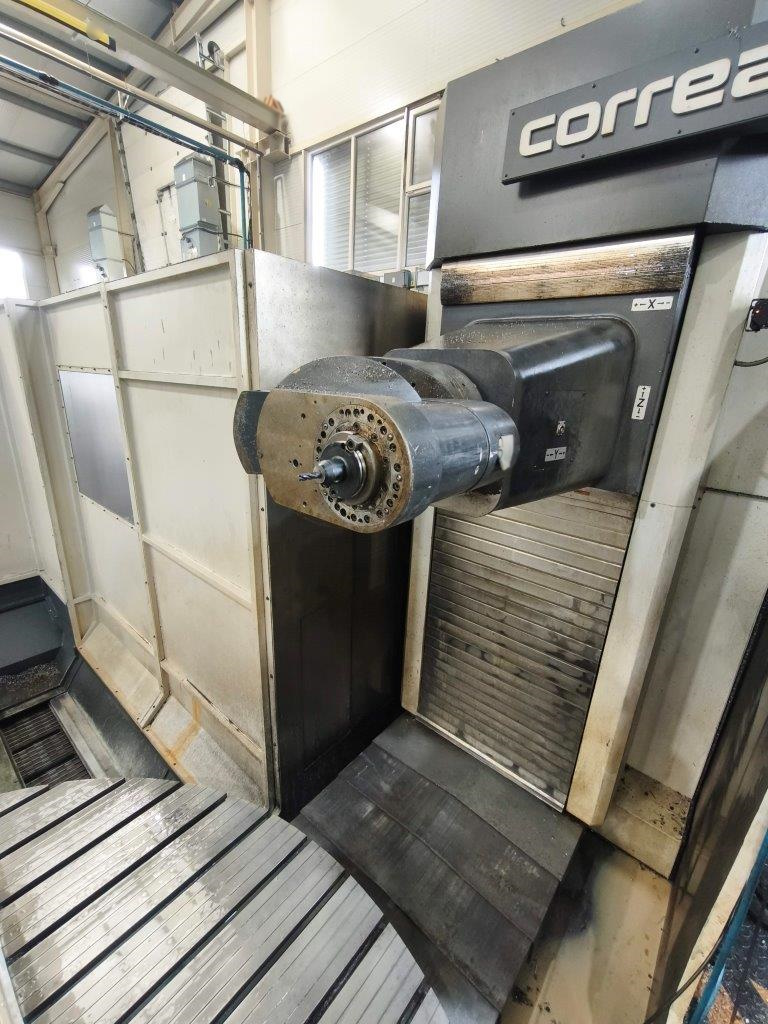

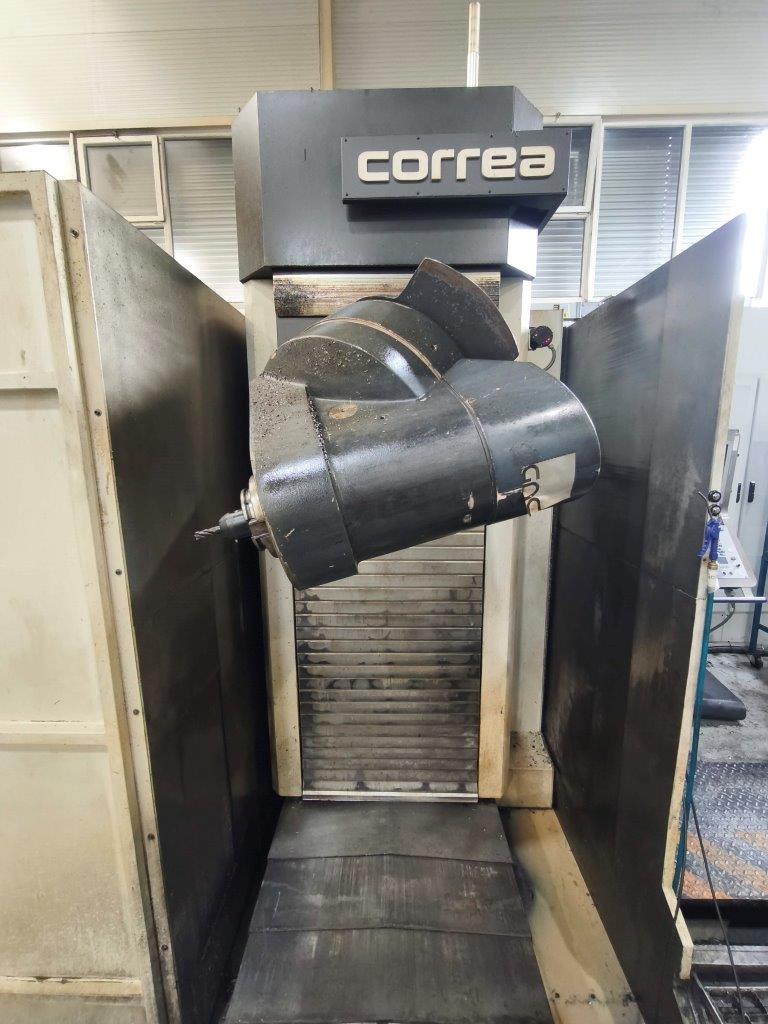

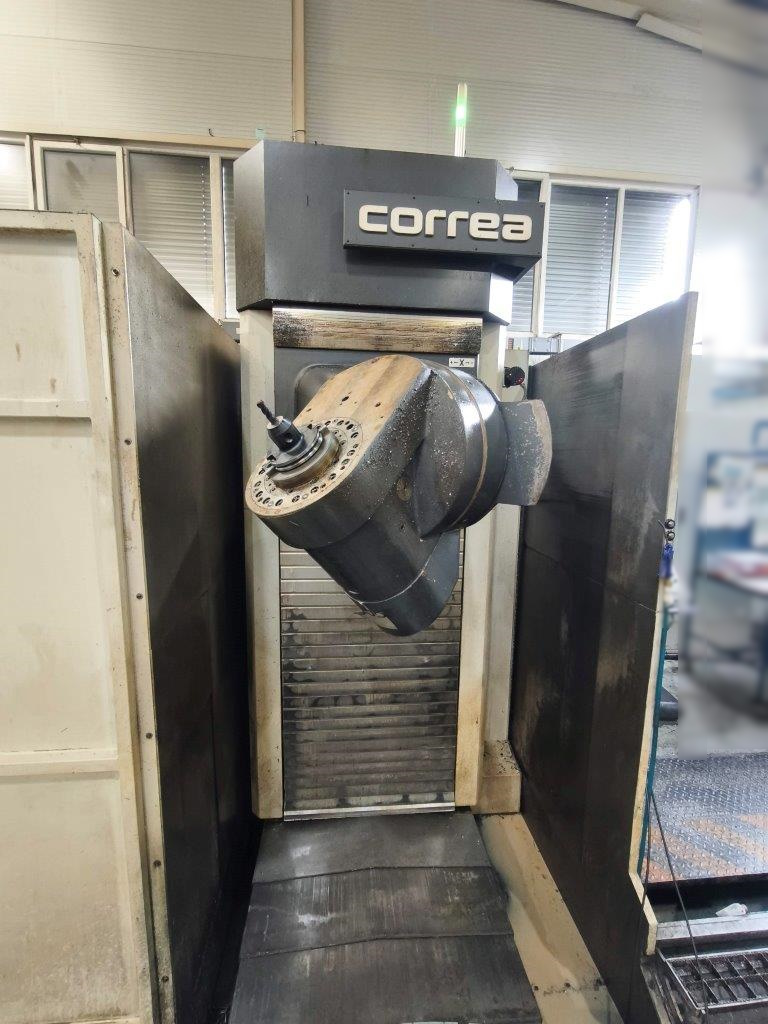

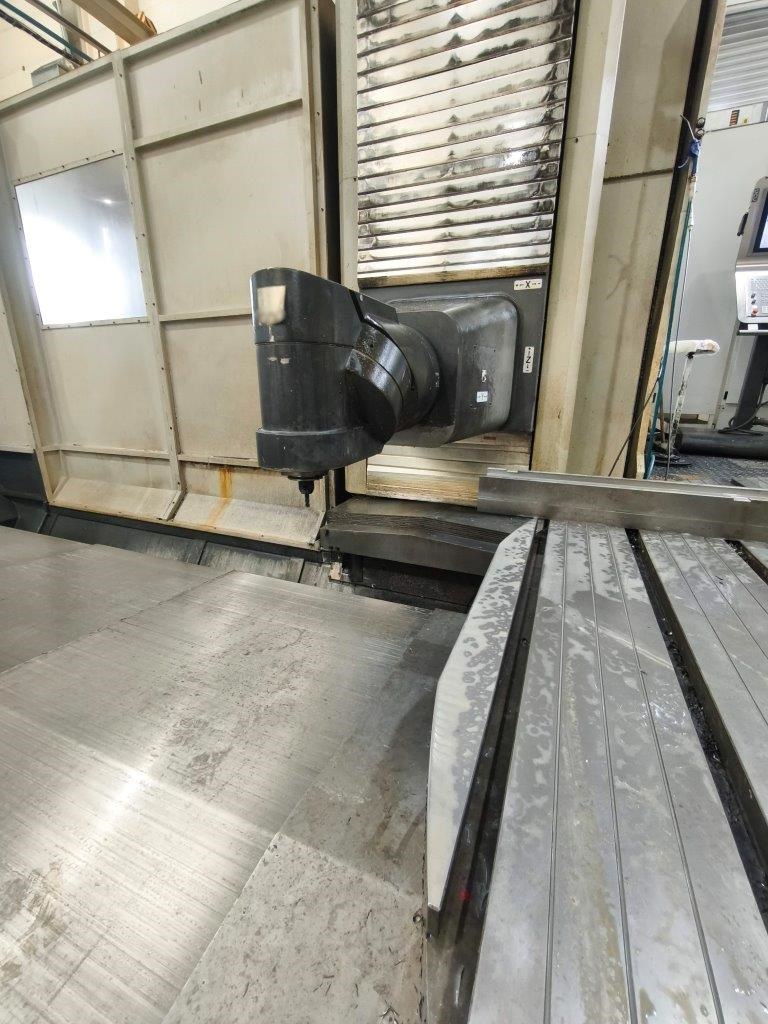

Orthogonal milling head
C plane +/- 360° / 0.02°
B plane +/- 135° / 0.02°
324,000 programmable positions
60 station tool magazine and ATC

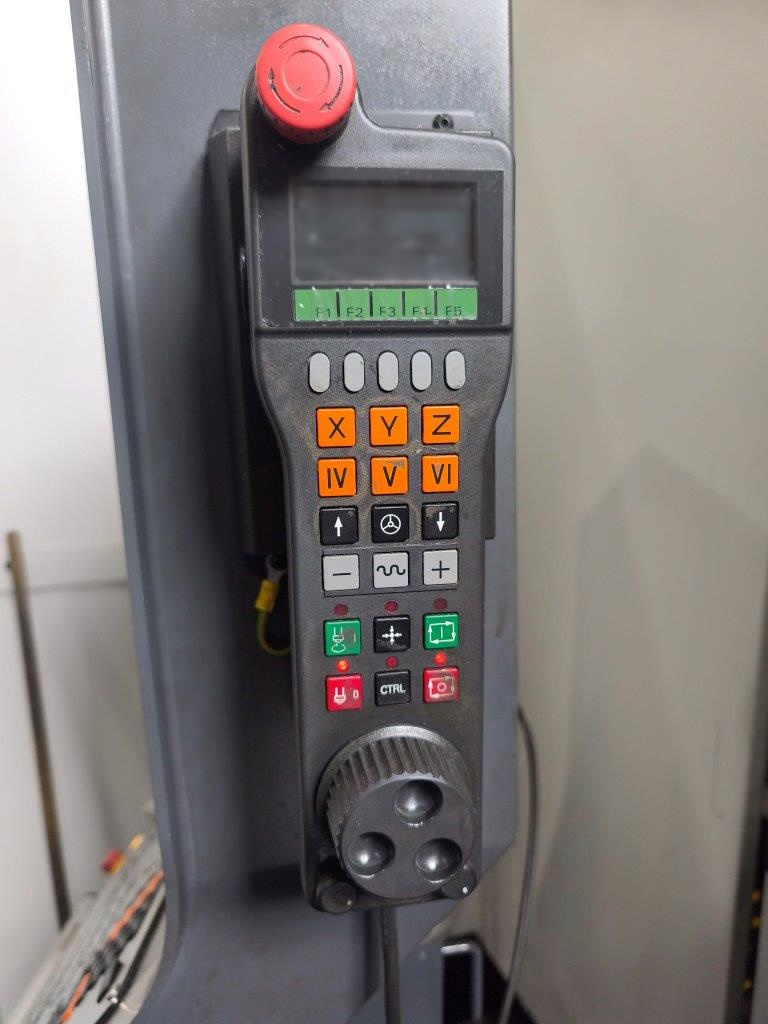

Heidenhain HR-550 FS wireless electronic handwheel

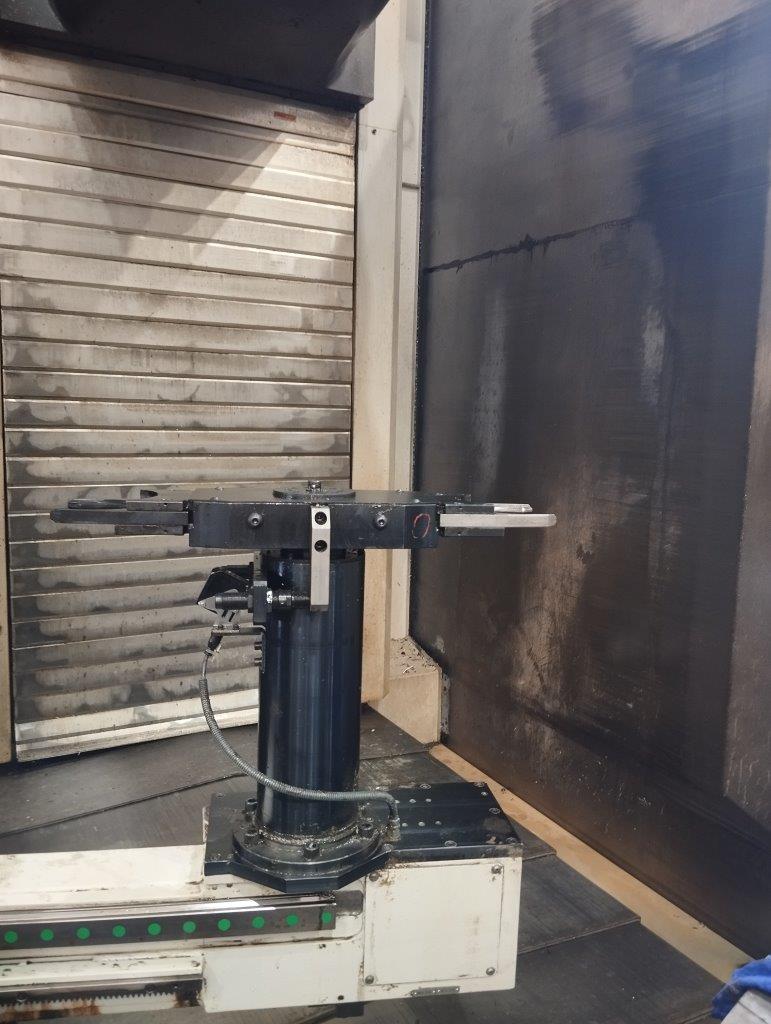

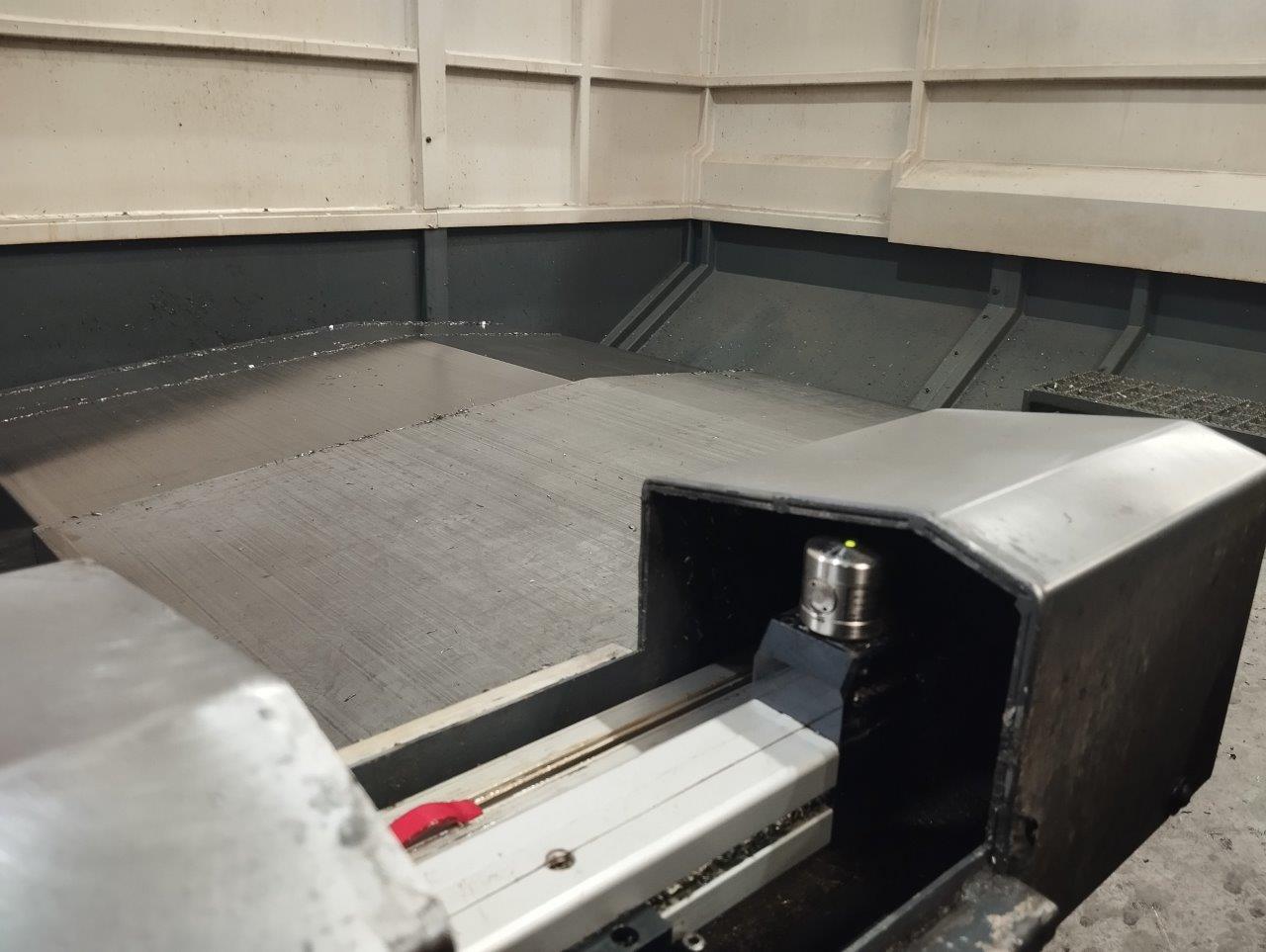

Renishaw RTS/C touch probe for tool measurement, length/radius and tool breakage detection
Renishaw RMP60-Q probe for workpiece measurement

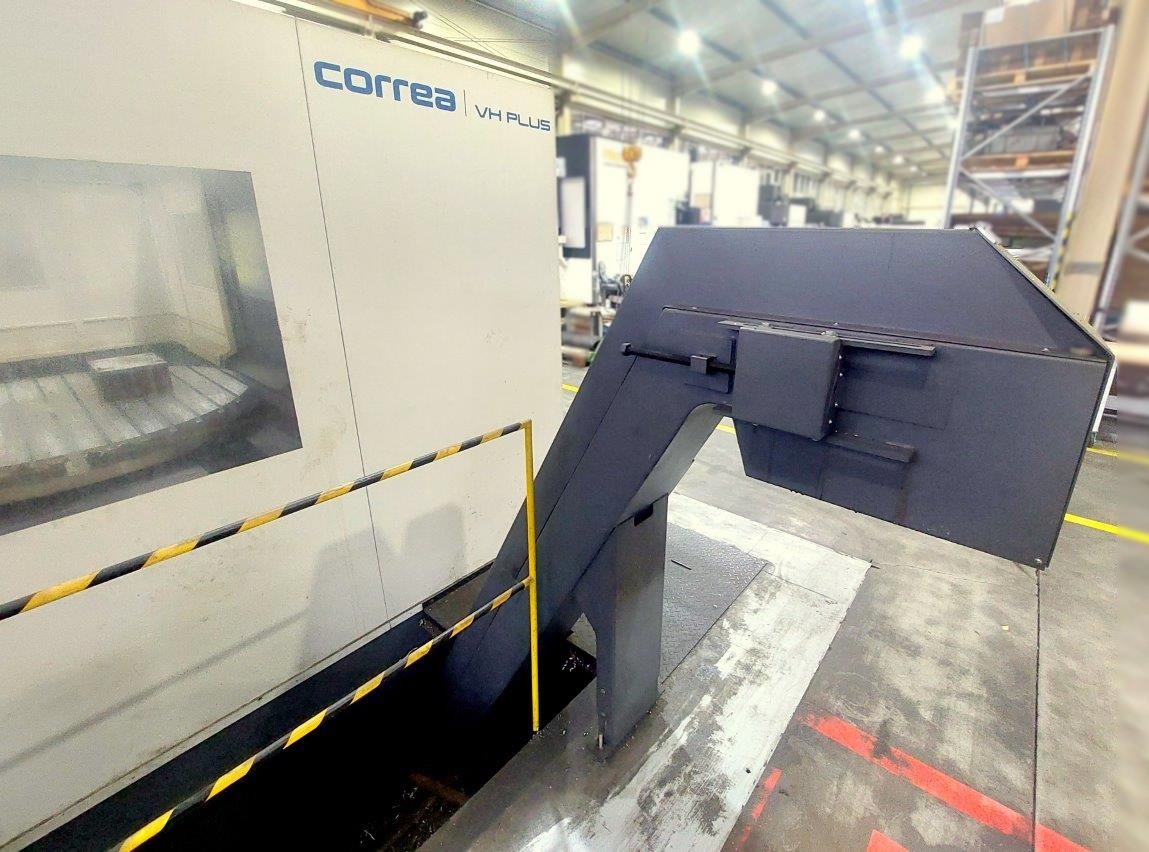

2 x Chip conveyors

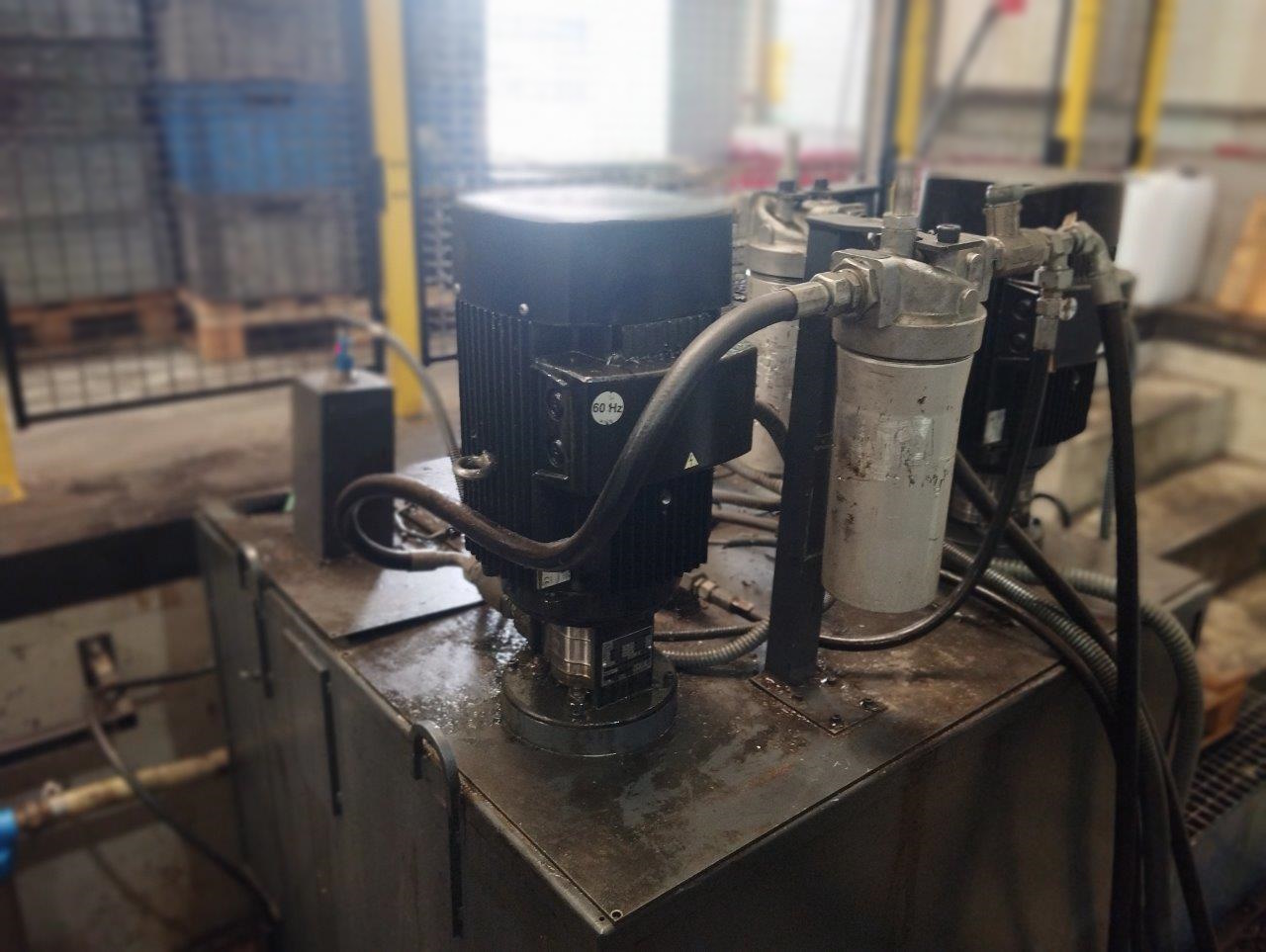

Coolant tank 500 l

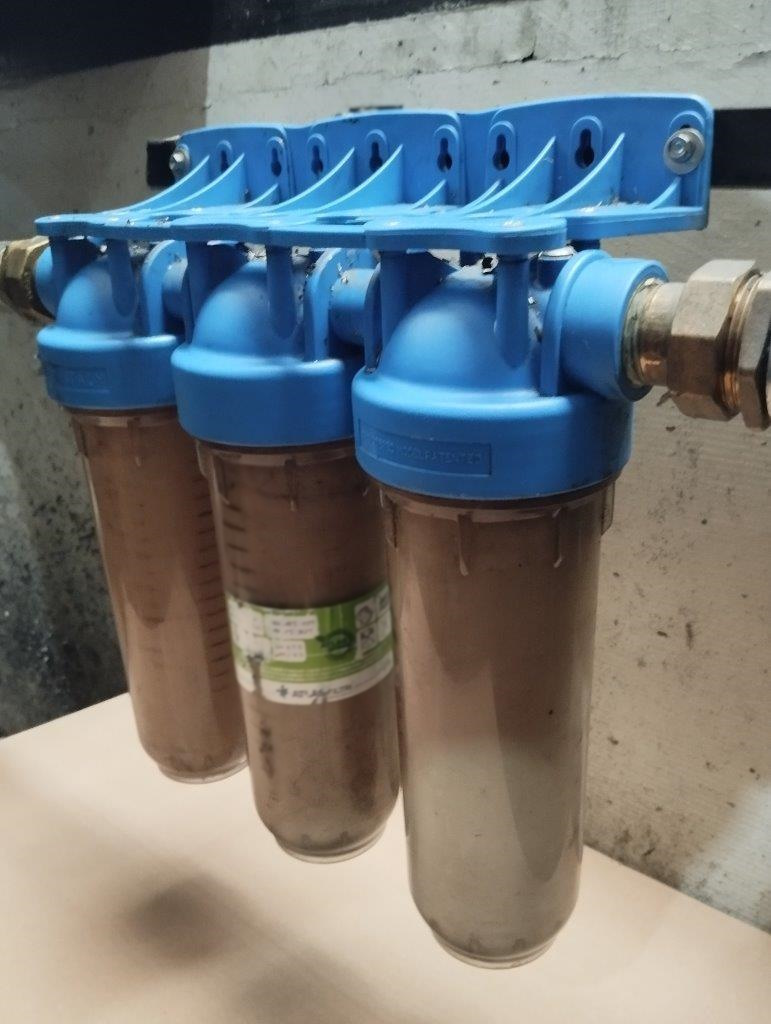

Coolant filter
External cooling 17 bar
Internal spindle cooling 17 bar

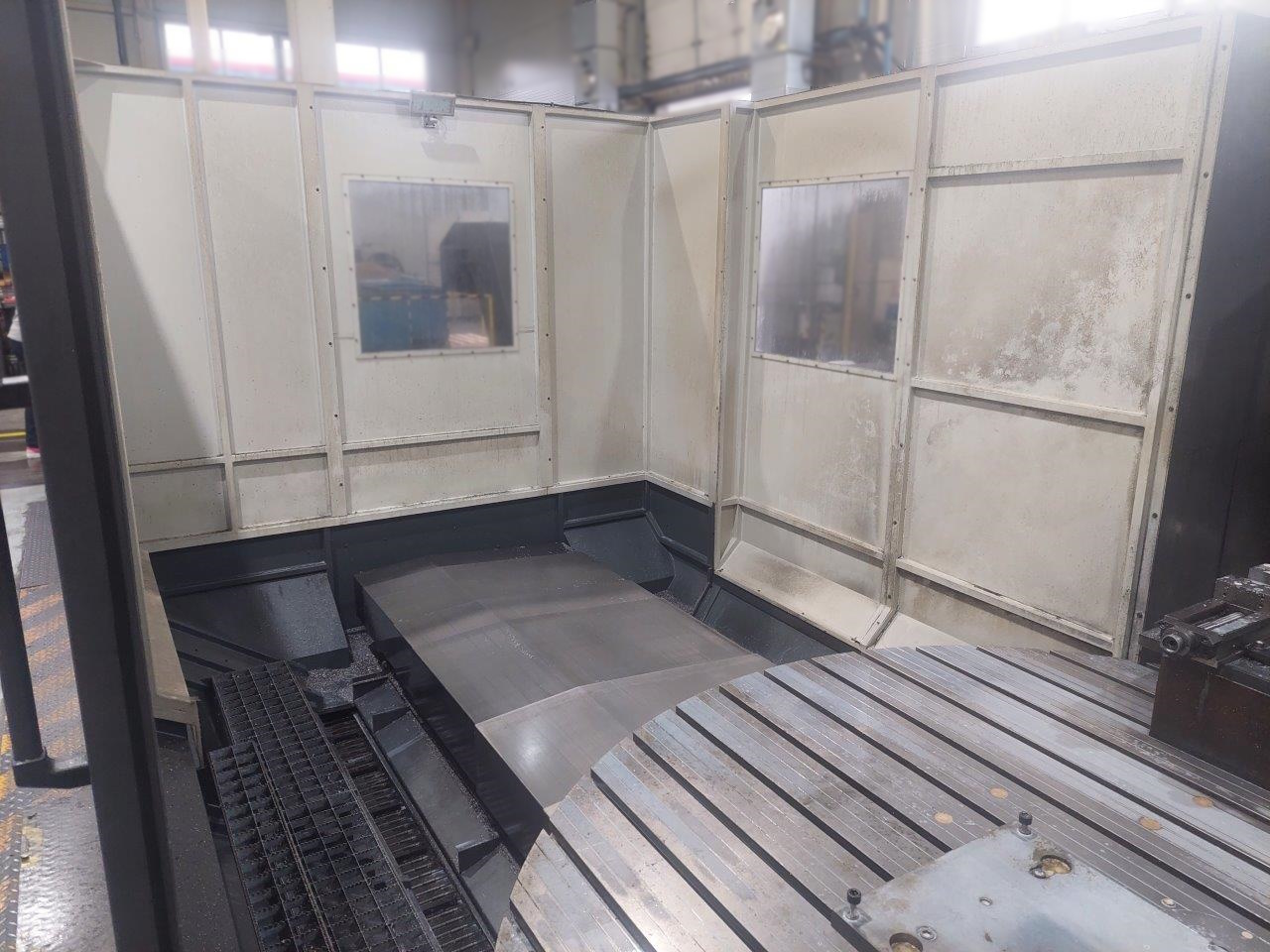

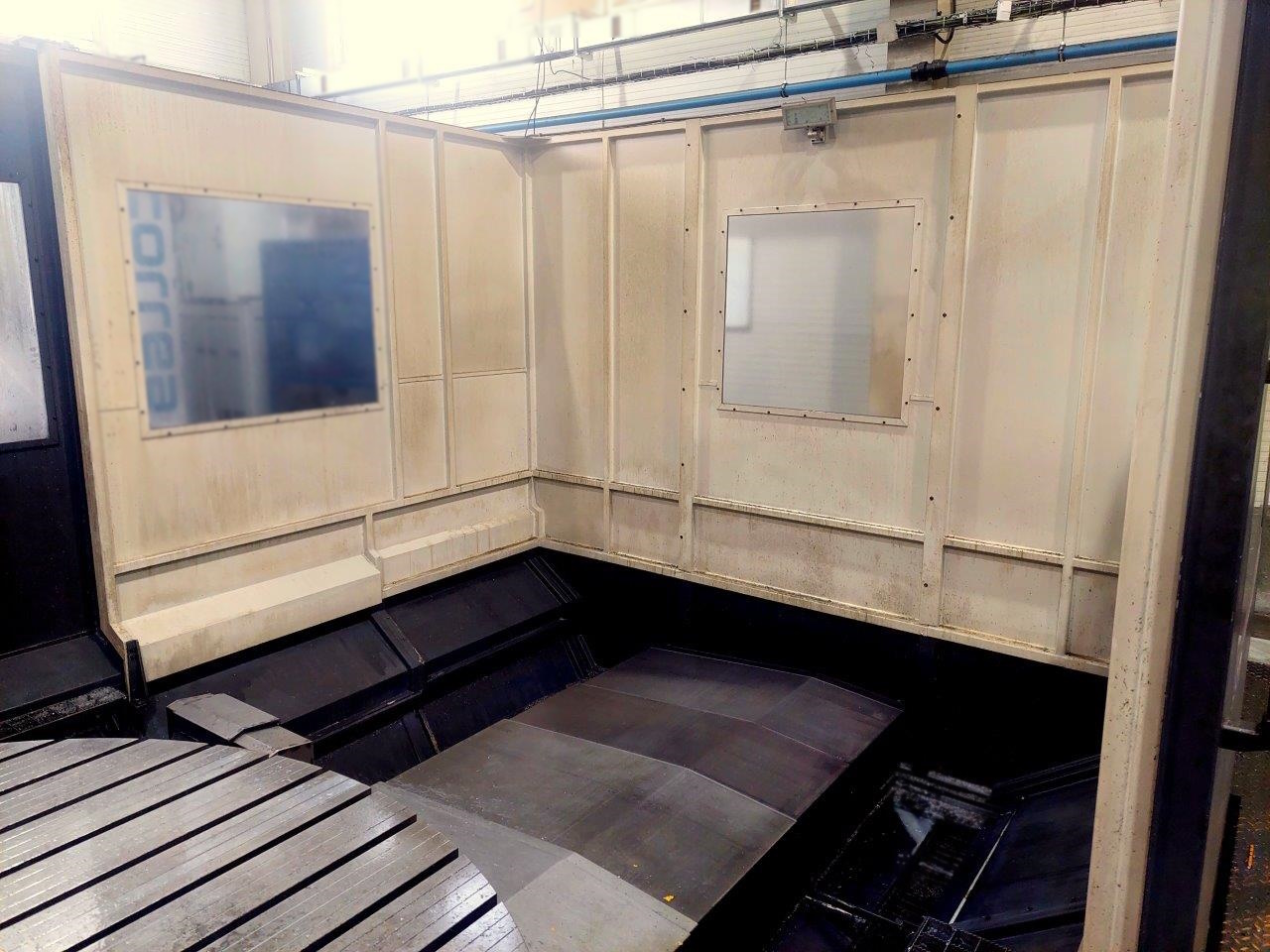

Splash guards
Telediagnosis
Incl. Tool holders, clamping devices, etc.

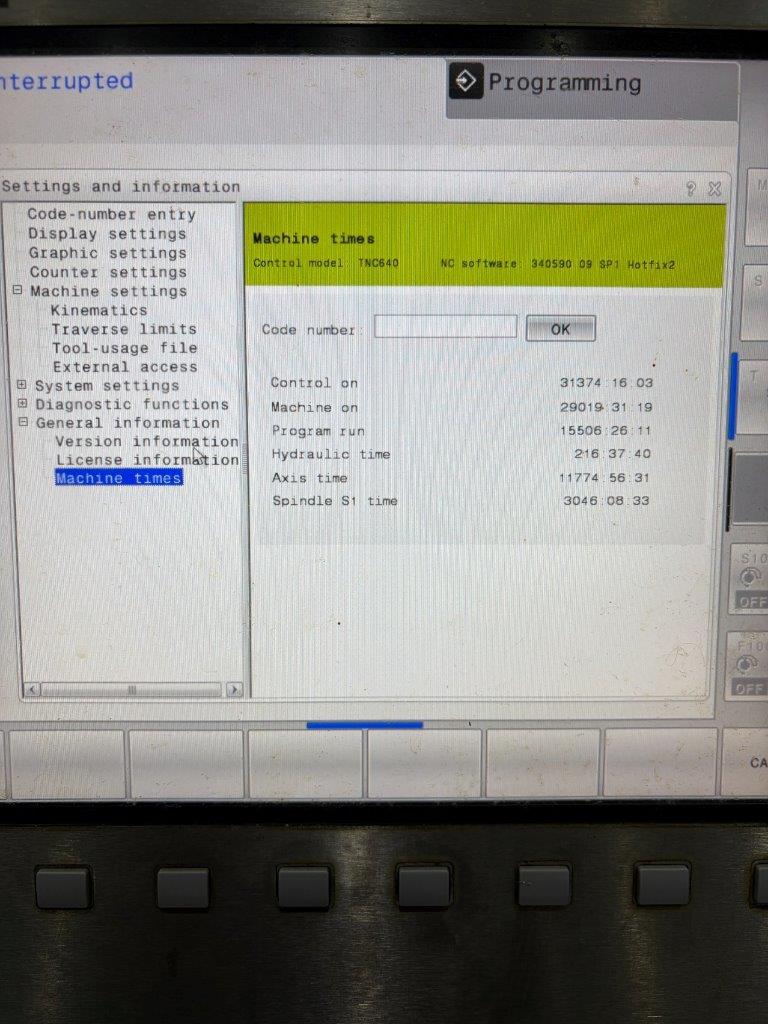

Approx. 17000 CUTTING hours
Proposal Number: V(F)-7085
Click here to Contact Us for more details

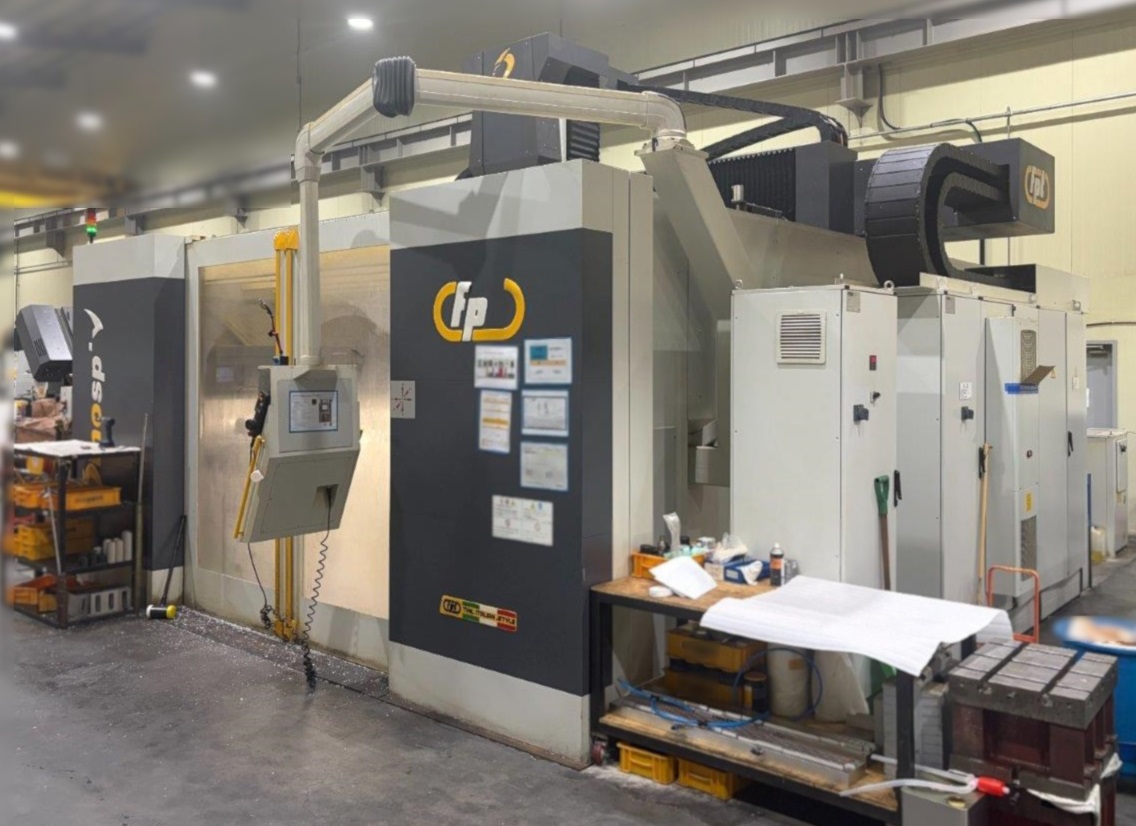

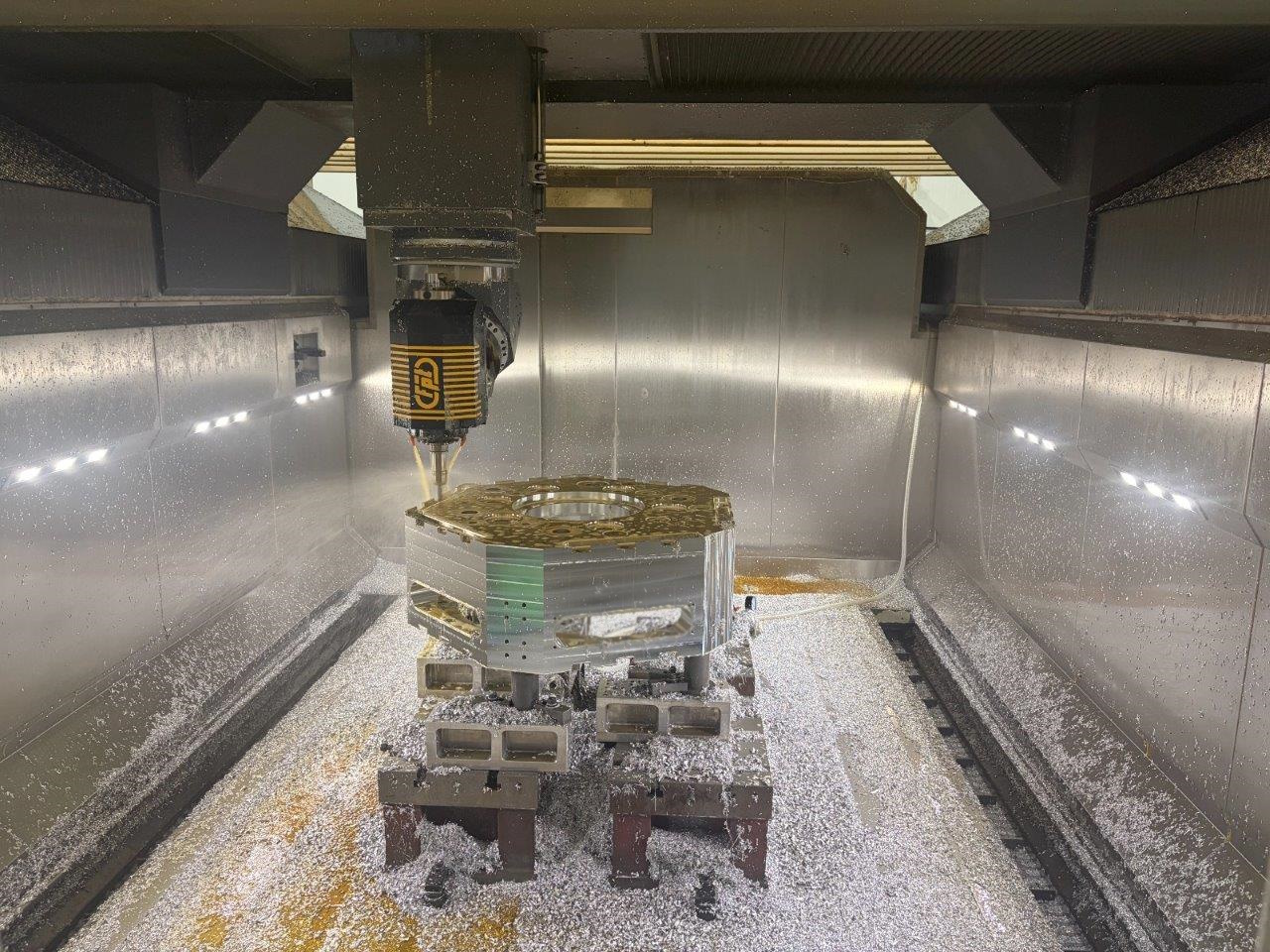

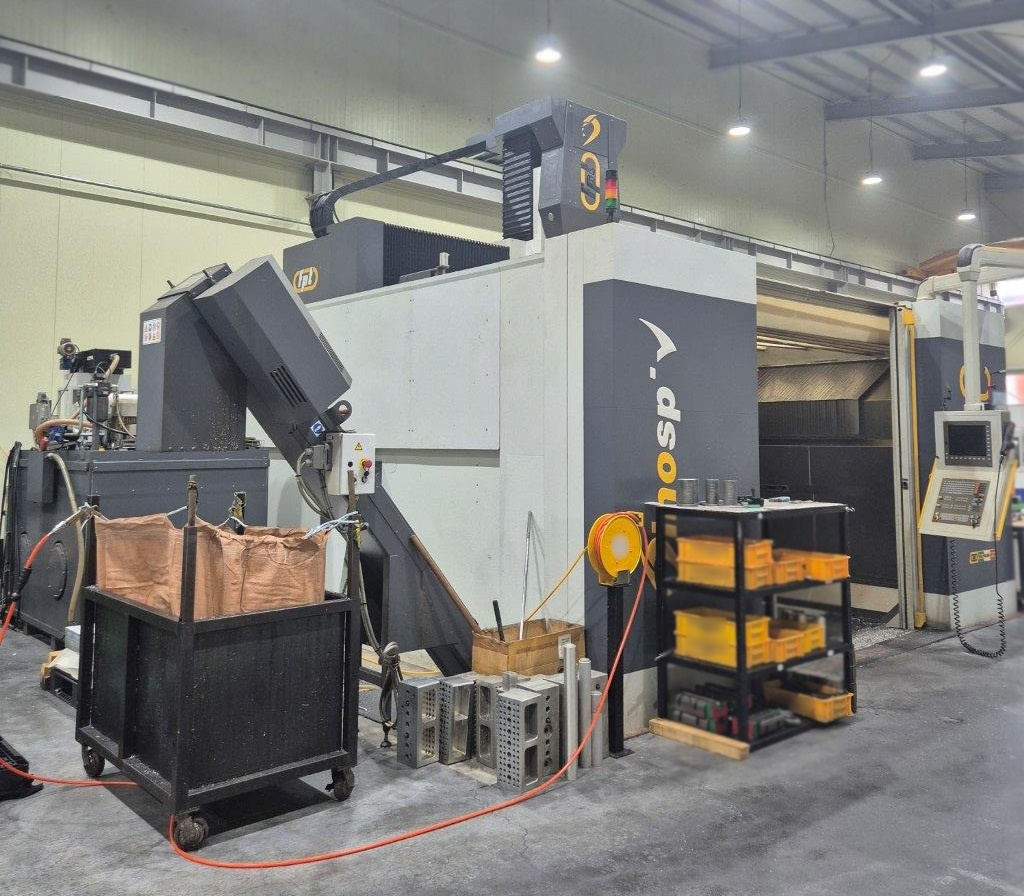

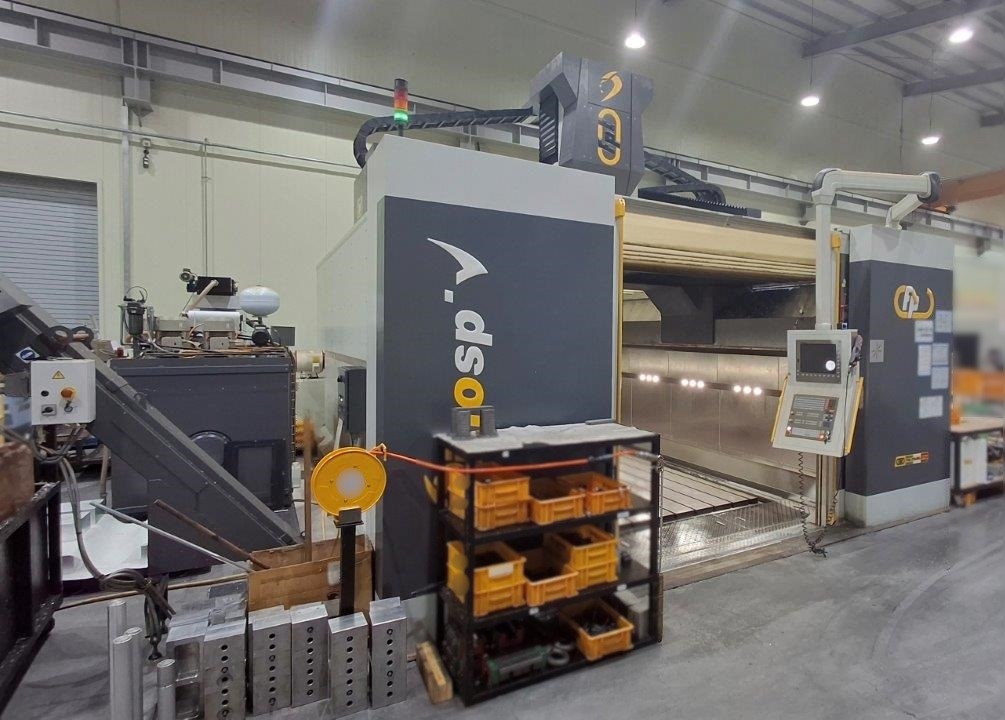

5-Axis CNC Gantry Milling Machine

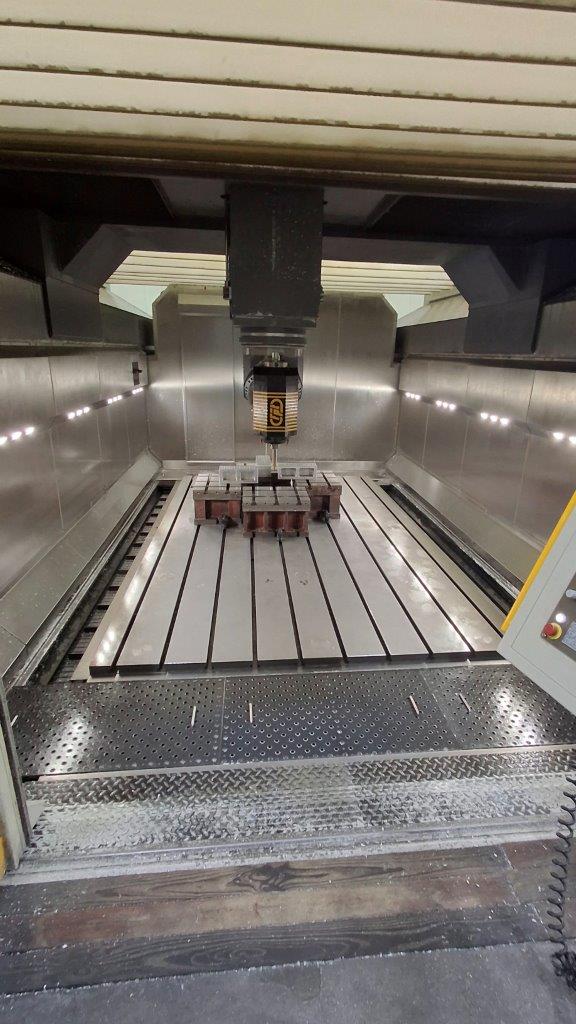

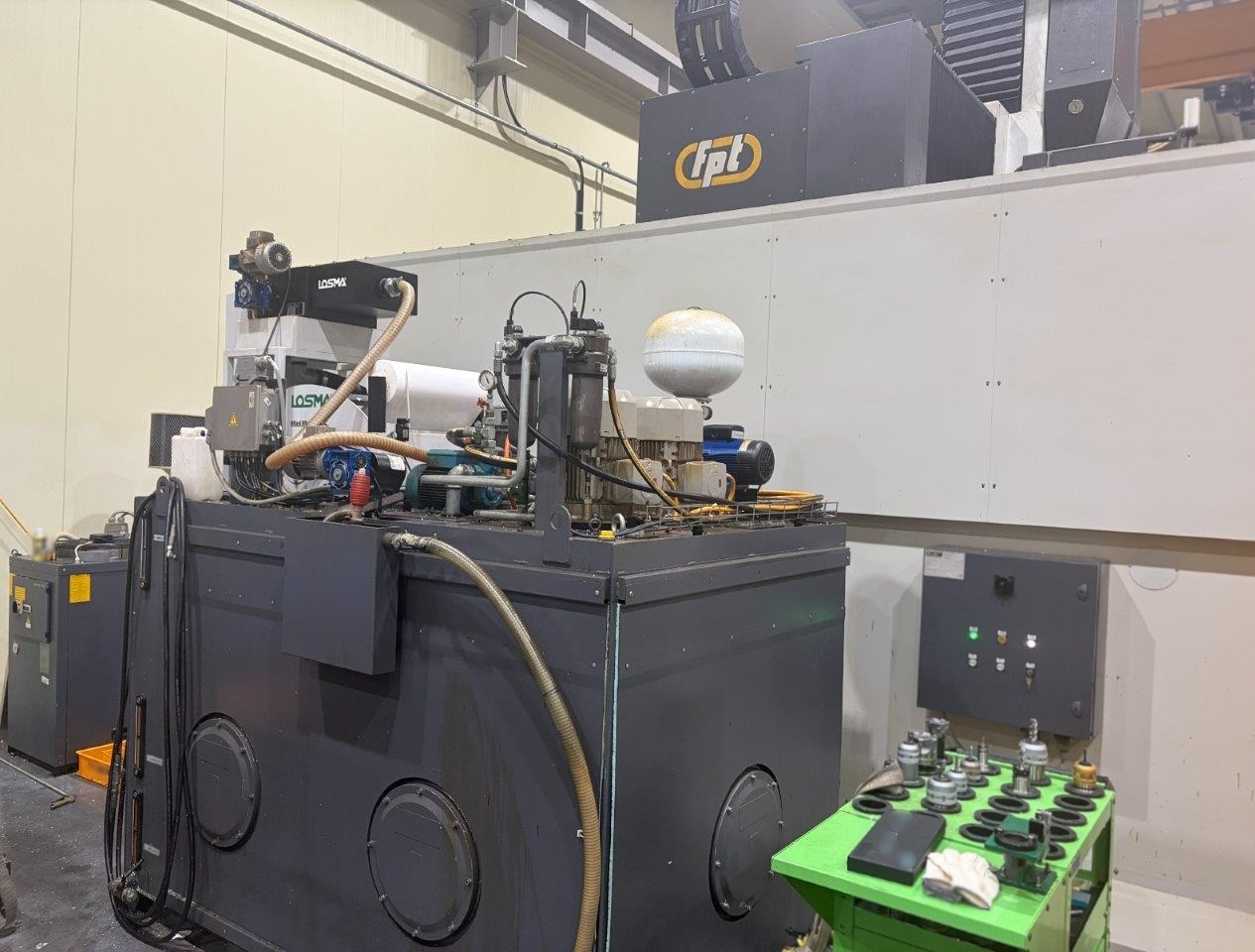

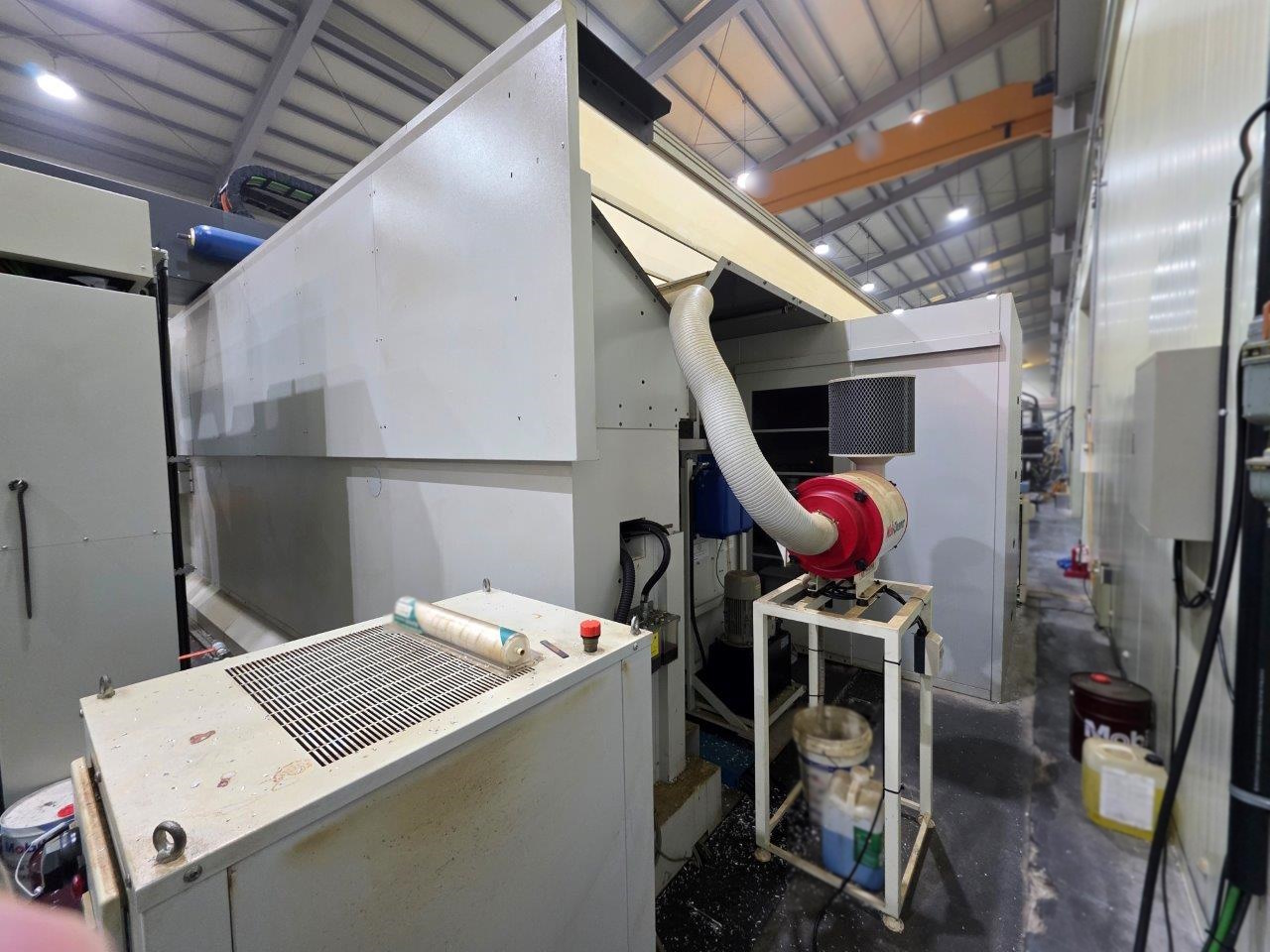

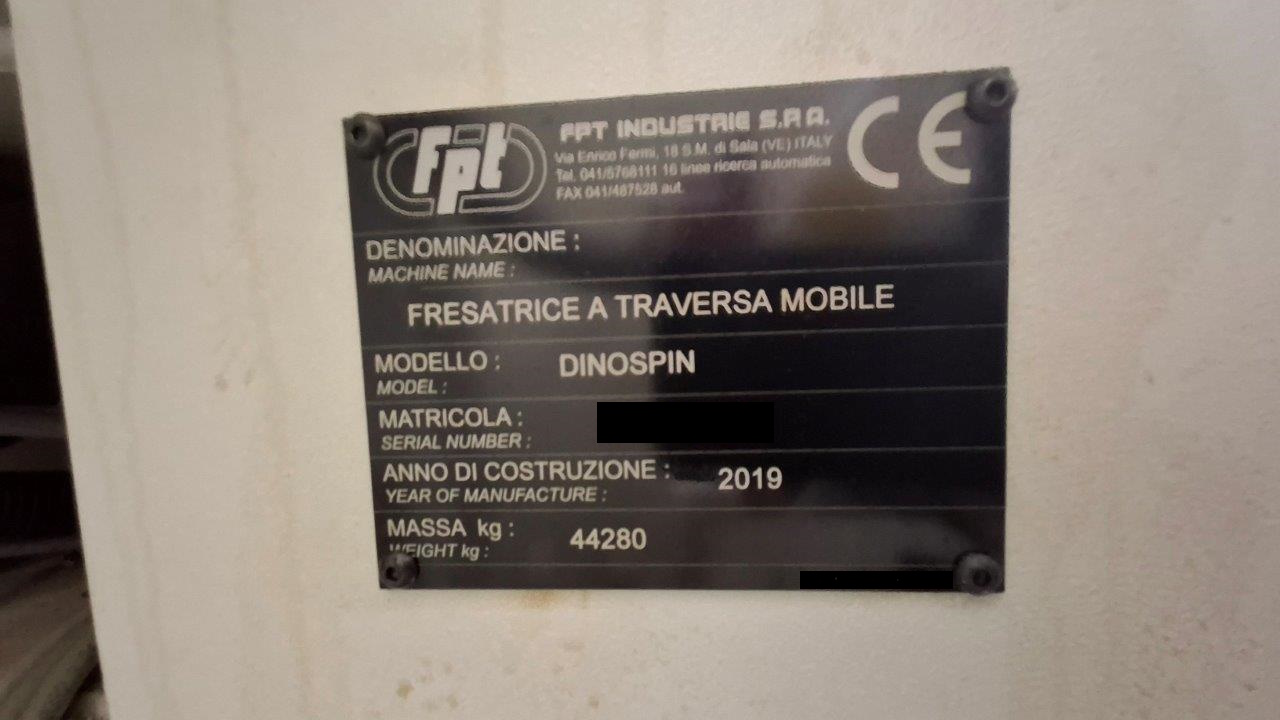

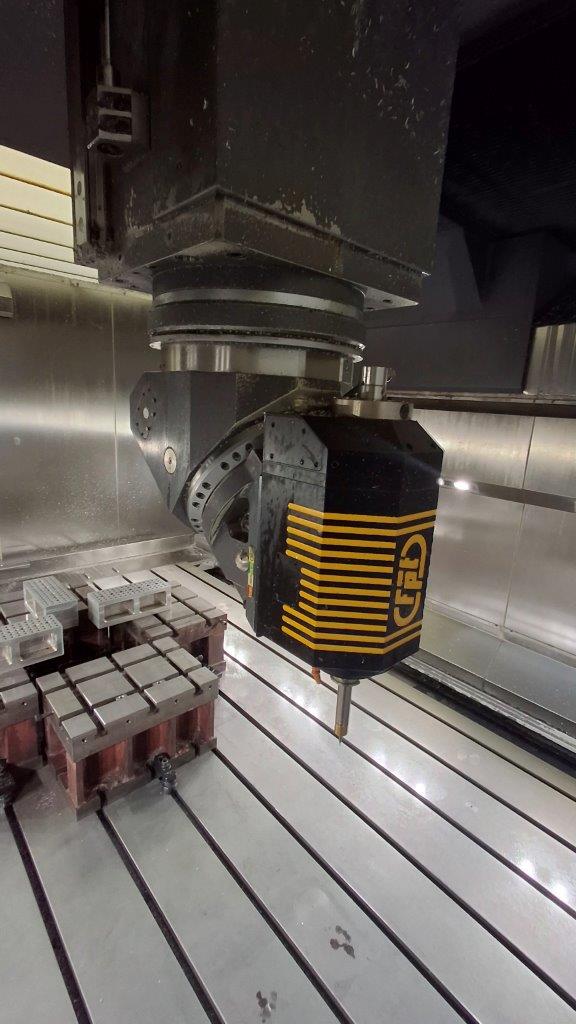

FPT Dinospin
EXTREMELY RARE – A USED MACHINE LIKE THIS IS HARDLY EVER AVAILABLE
We are pleased to offer the following high-performance machine:
This machine combines precision, power, and flexibility — ideal for demanding model and mold making as well as high-performance aluminum machining. Due to its latest technology, specification, condition, and year of manufacture, this is an exceptionally rare opportunity on the used market.
Year of manufacture 2019

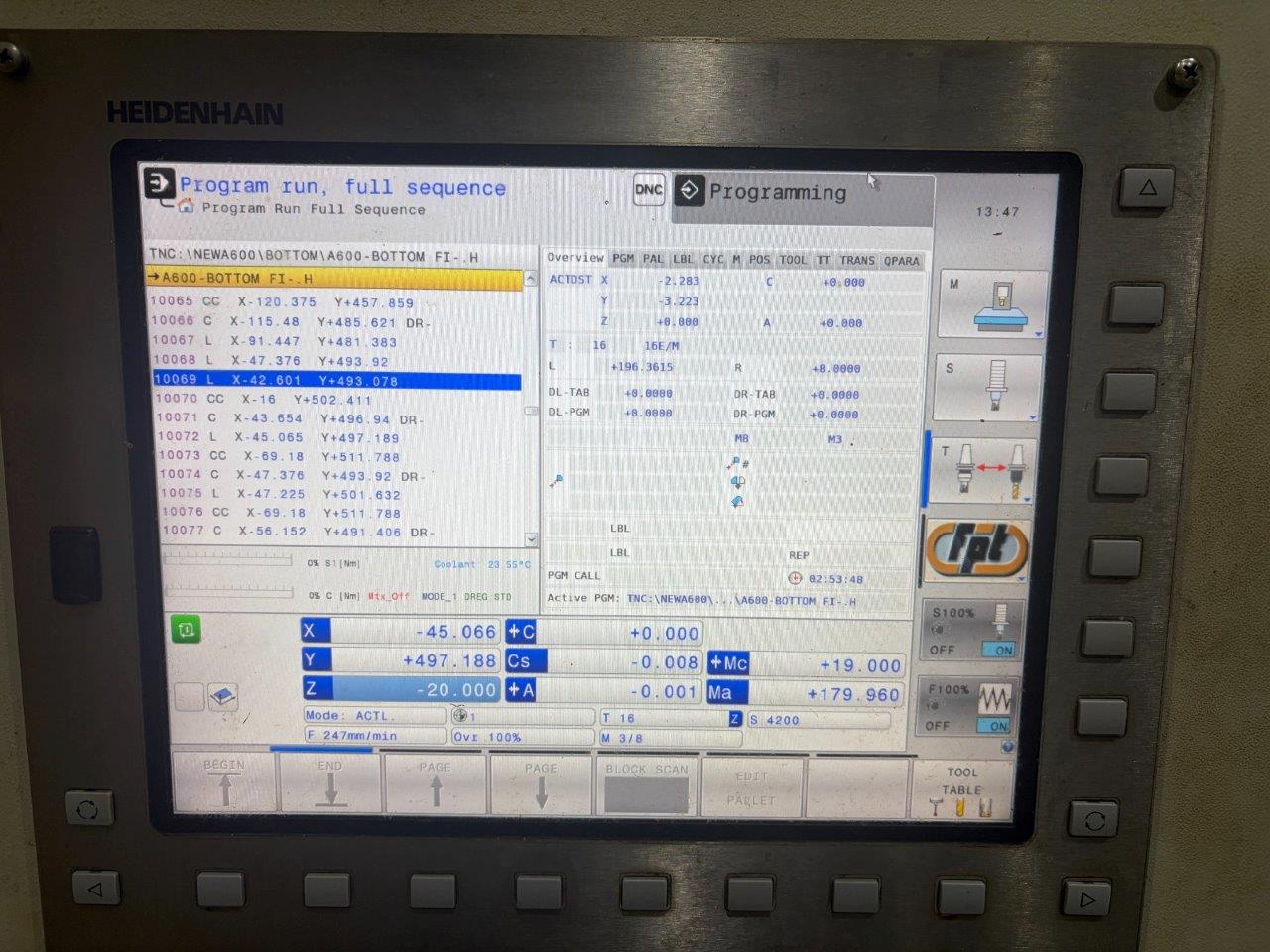

Heidenhain TNC 640 control
Table size 4000 x 2500 mm
Table load capacity max. 10 t/m²
2-Axis NC swivelling milling head
C-axis +/- 270°
A-axis +/- 185°
Head torque (working/braking): 450 / 1400 Nm
Travels:
X 4000 mm
Y 2500 mm
Z 1300 mm
Feeds X/Y/Z up to 40000 mm/min
Feeds C/A up to 30 rpm
Spindle motor drive 22 / 33 kW
Spindle speed range 10 – 18000 rpm
Spindle torque S1 / S6: 84 / 128 Nm

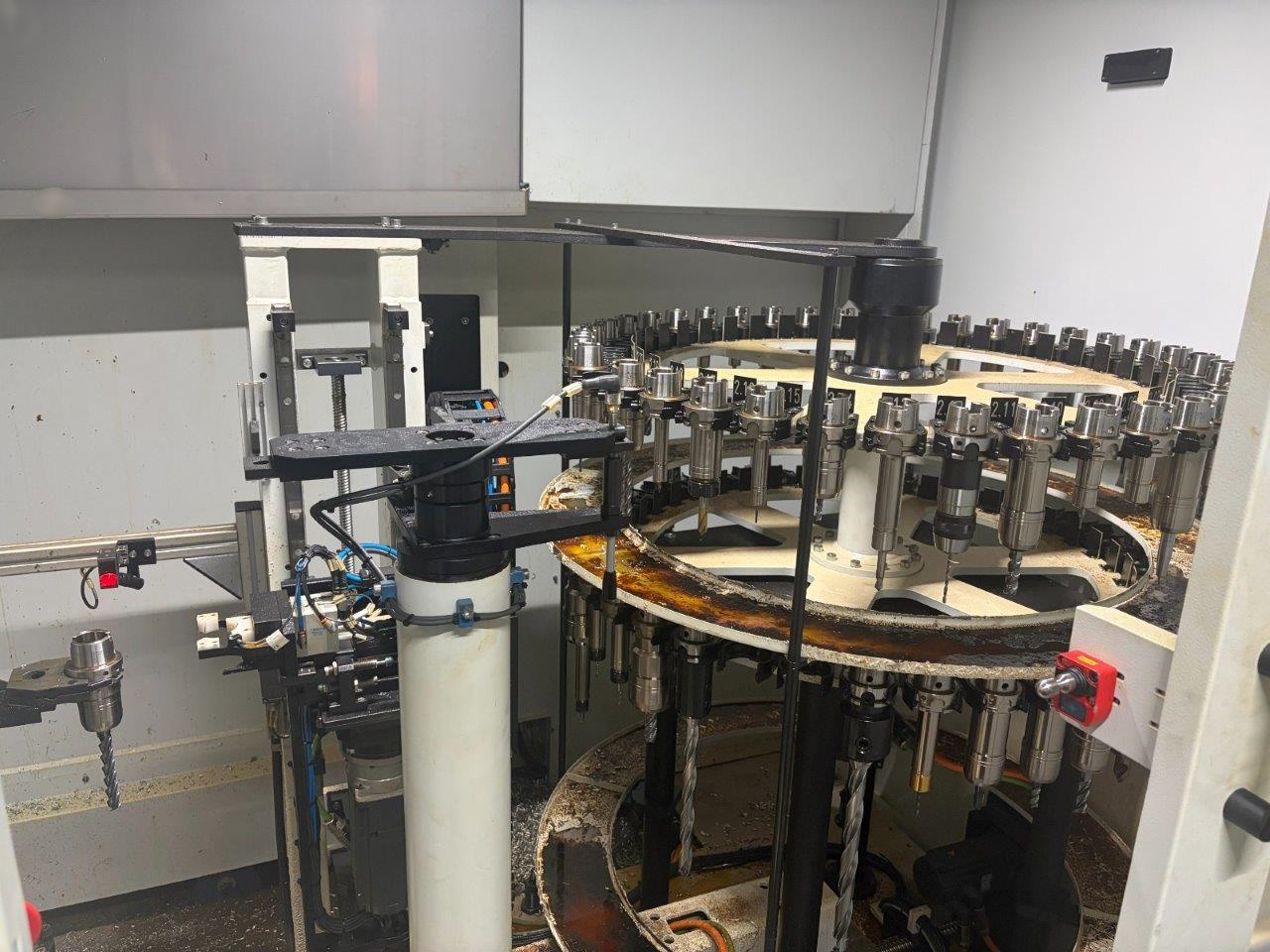

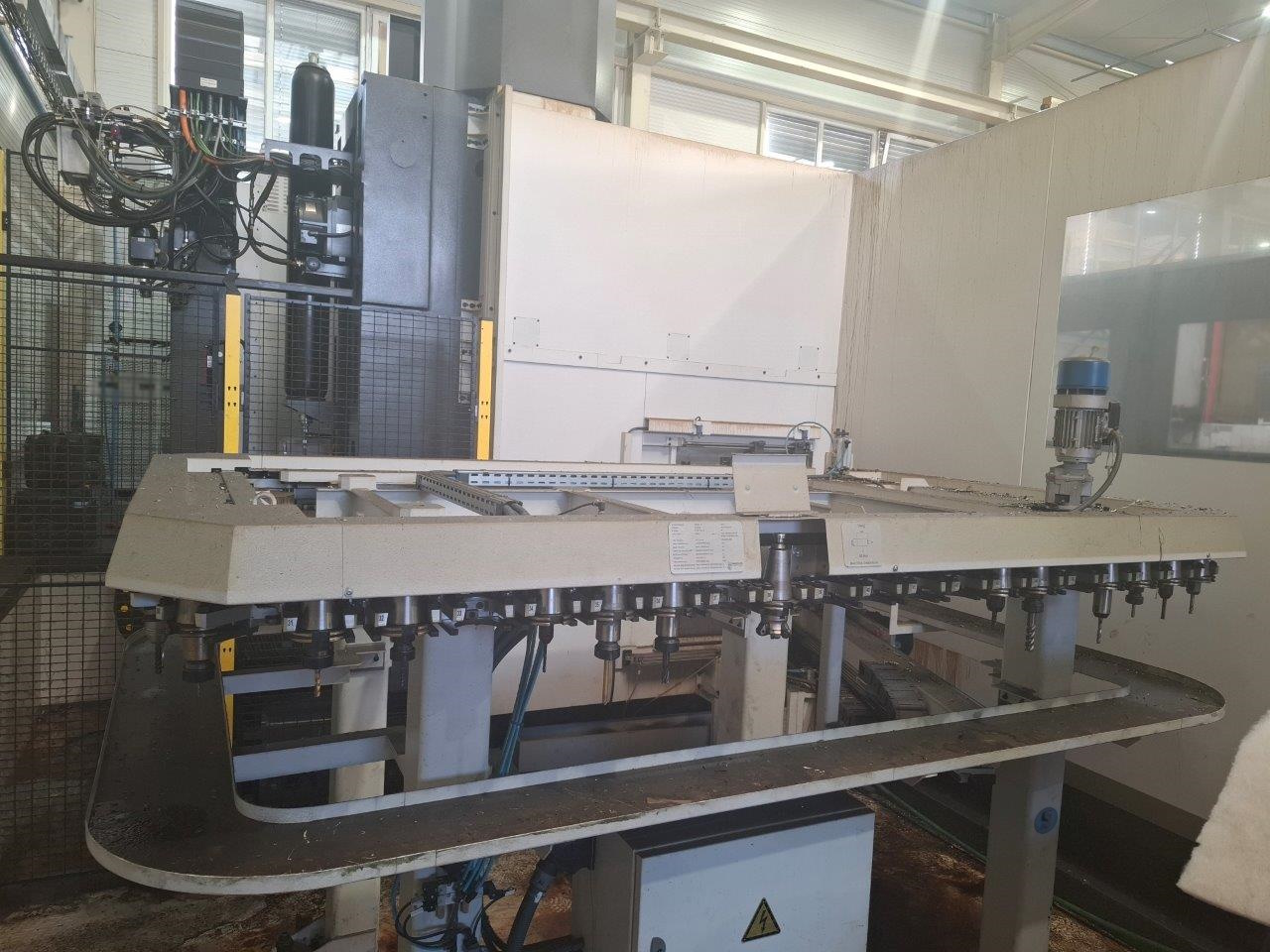

80 station Automatic Tool Changer (ATC)
Tool taper HSK-A63
Max. tool weight 10 kg
Max. tool length 600 mm
Tool diameter min./max. 75 / 125 mm
Machine weight 44,280 kg
Equipped with:
Tool measuring system
Touch probe
Chip conveyor
Dust extractor
CE marked
Proposal Number: V(F)-7152
Click here to Contact Us for more details

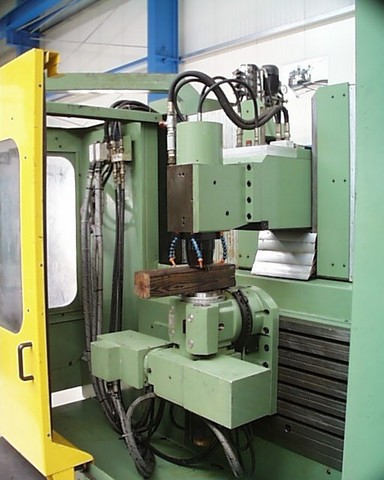

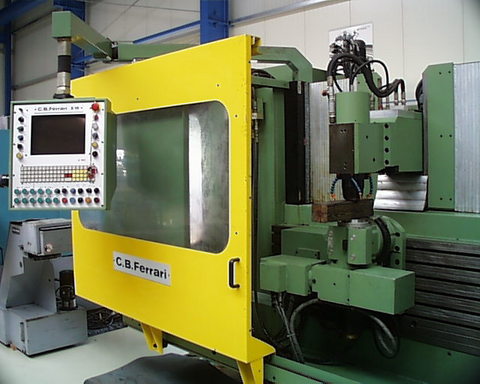

5-Axis Milling Centre CNC
FERRARI, C.B. A16

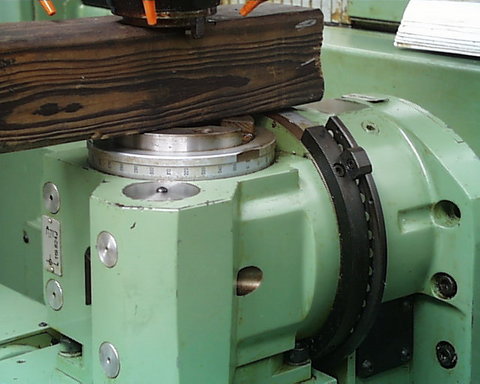

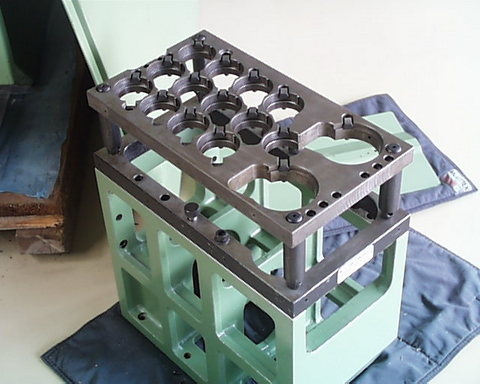

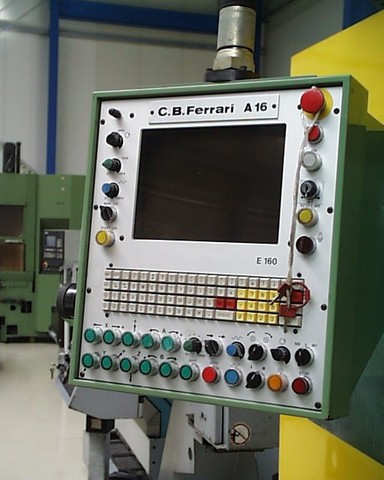

1993; E160 CNC control; Dividing head as work piece holder, fully controlled in 2 axes; C Axis 360° rotation & A Axis tilting; Work piece holder with ISO 50 taper; Column longitudinal travel X 1050 mm; Spindle vertical travel Y 420 mm; Ram cross travel Z 420 mm; Spindle taper ISO 40; Spindle power 10 KW; Spindle speeds 10 - 4000 rpm; 15 station pick-up tool / + workpiece magazine; ALMOST UNUSED!!!
Proposal Number: V(F)-0982
Click here and receive a full specification by email
