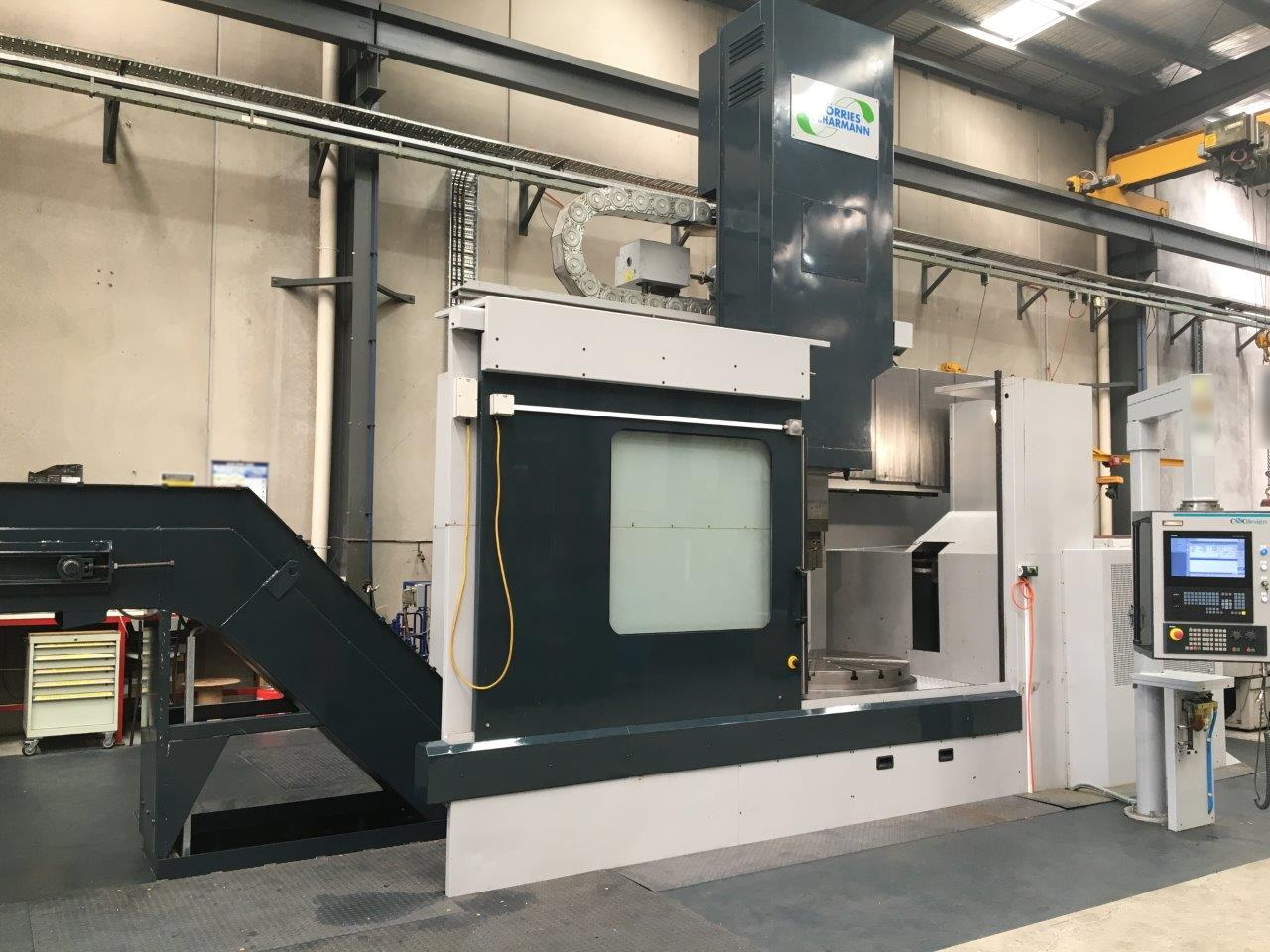

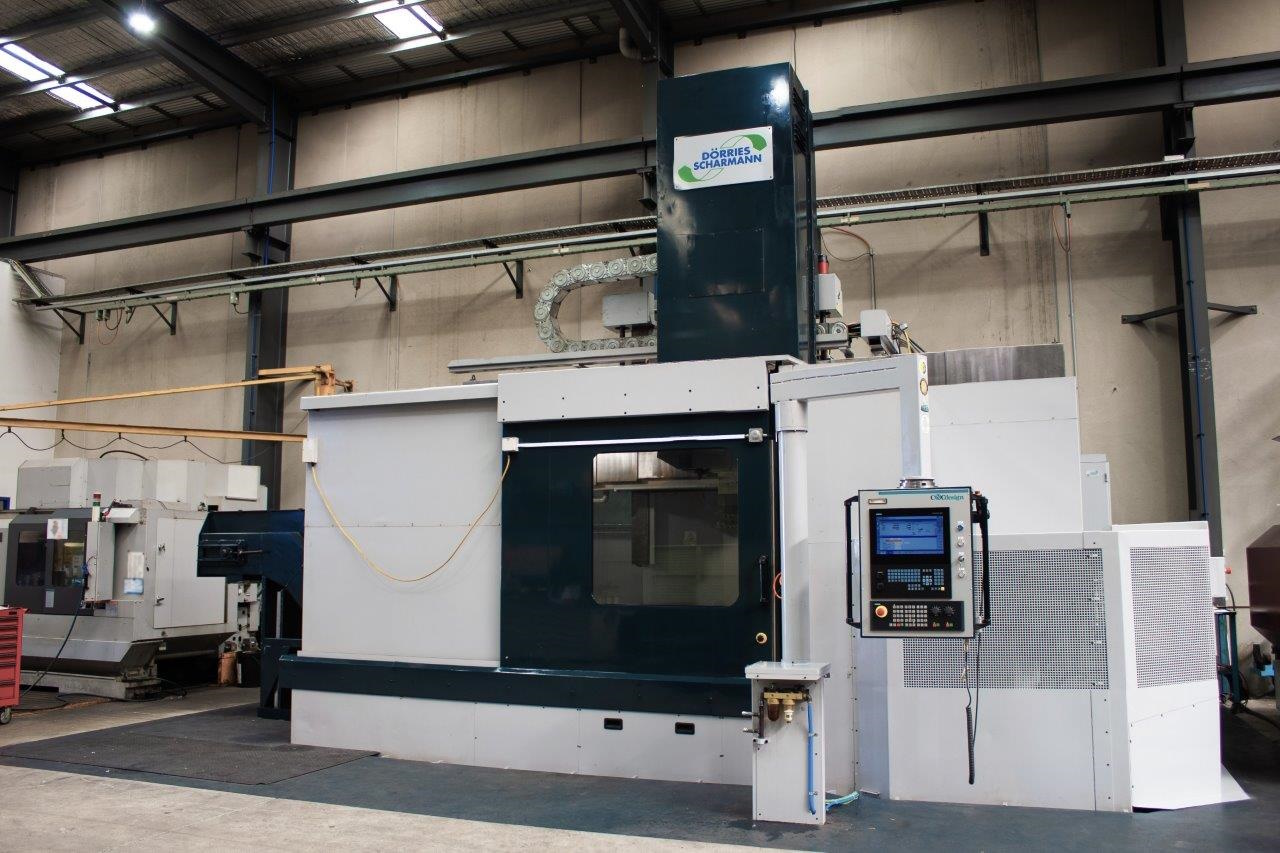

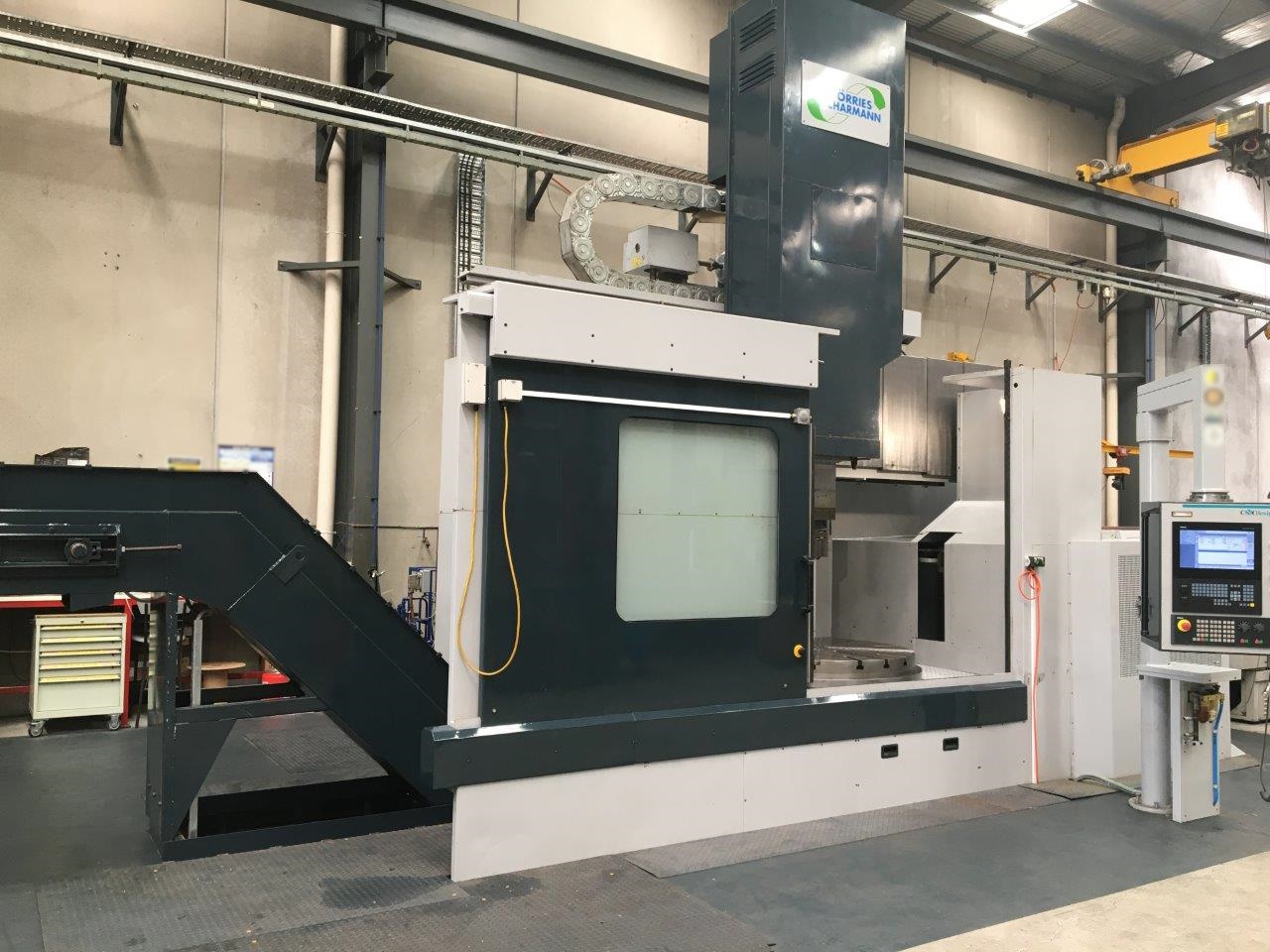

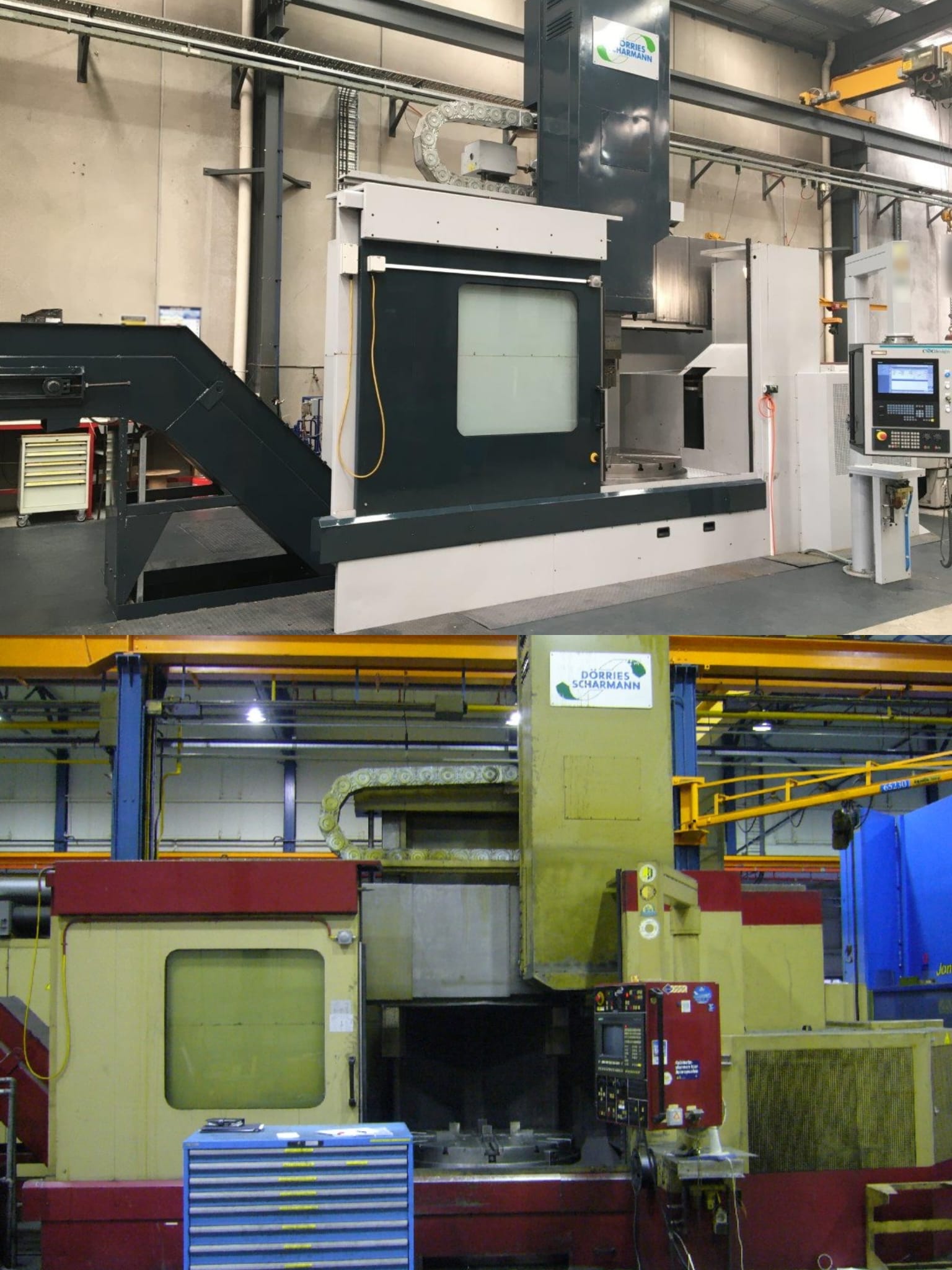

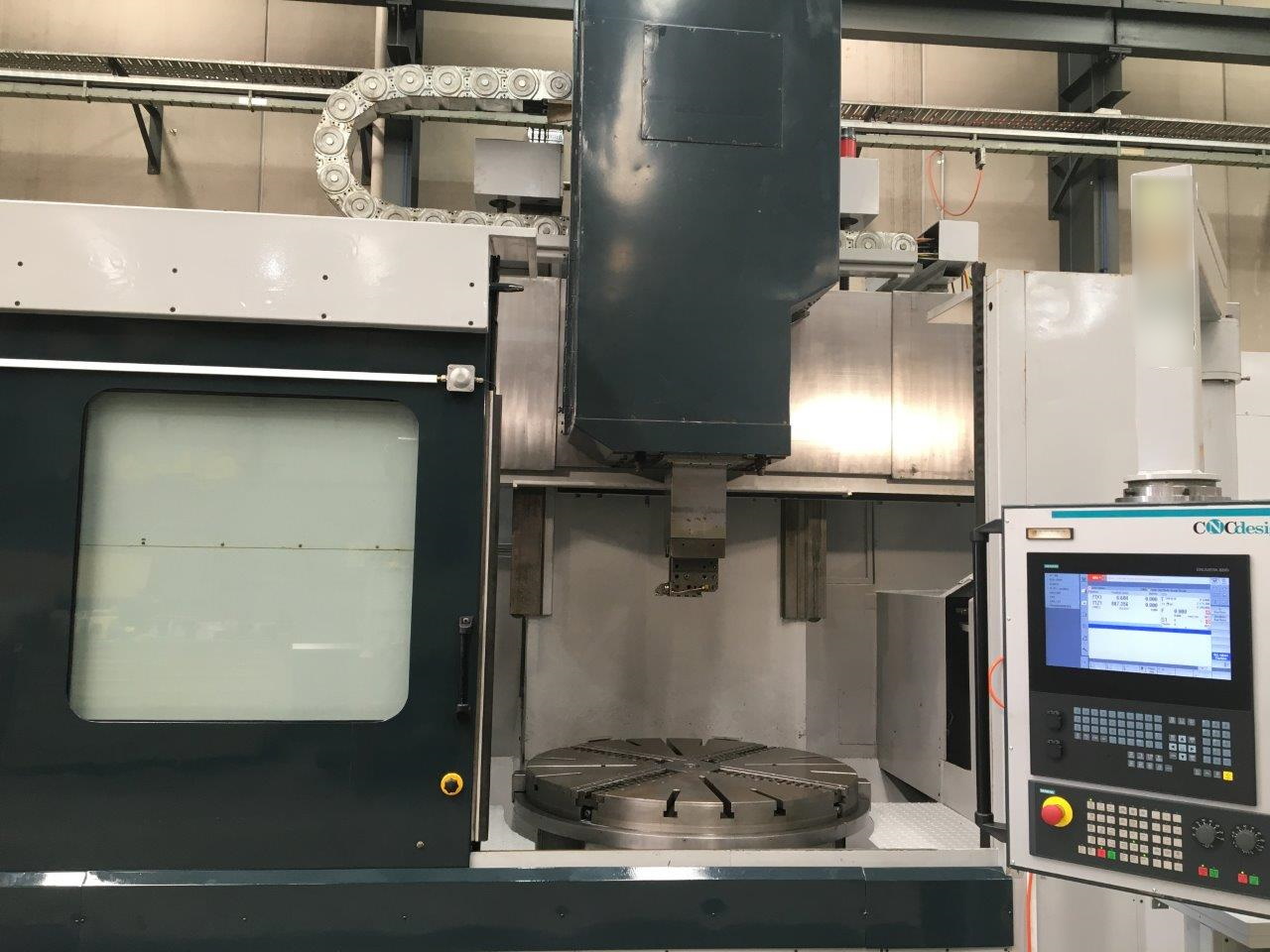

Doerries Scharmann VCE 1600/140 SM (Contumat 2SM)

Year 1991, Overhauled 2005 / Retrofitted 2022

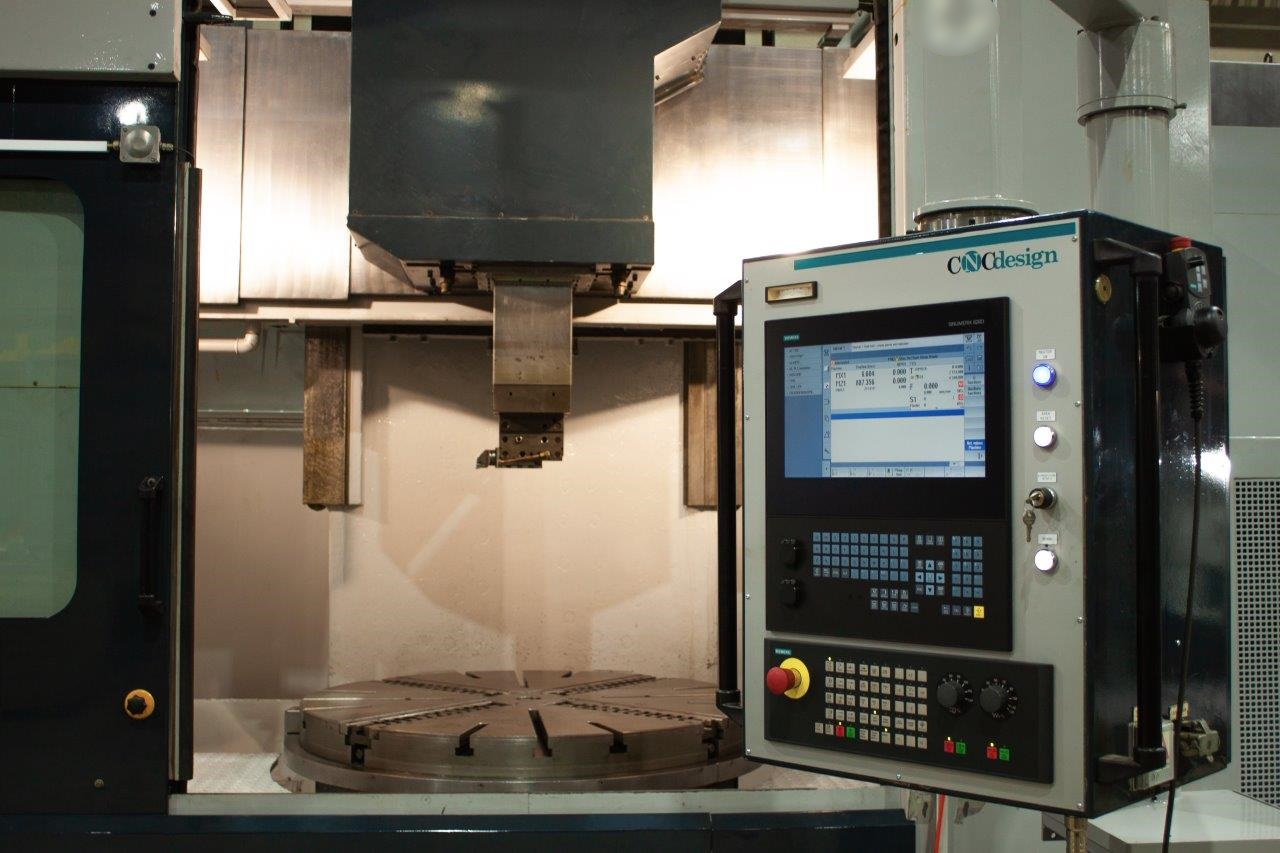

Siemens 828D (retrofit)
Faceplate diameter 1400 mm
Table load 9t (9000 kg)
Swing diameter 1750 mm (1890 mm with doors open)
Turning height 1500 mm
Tool changer 20 positions
Very accurate machine

Accessories:
Large tool pack;
Large spare parts package;
Large package of clamping jaws;
Full cladding;
Chip conveyor;
Coolant system;

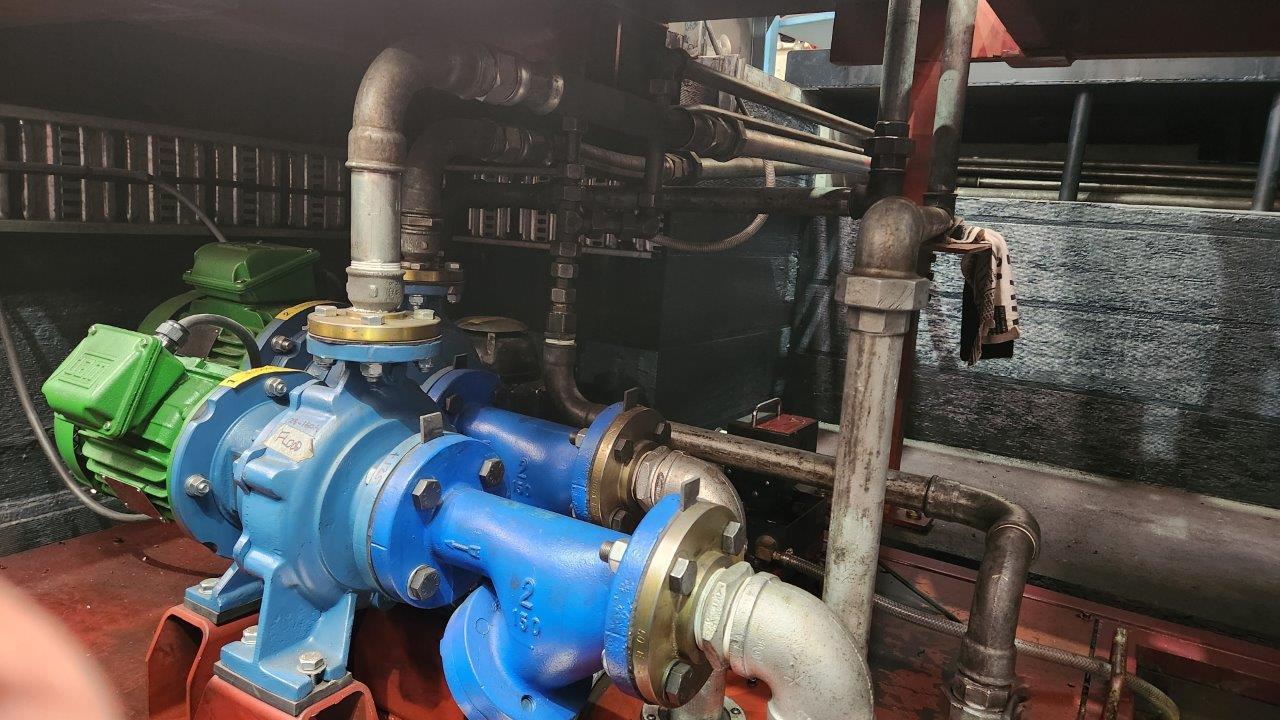

New coolant and flood coolant pumps.

Condition:
Very good condition.
The mechanical condition is very good.
Completely new electrics and Siemens 828D Siemens ONE system.
The machine works with very high accuracy.

Proposal Number: VK-6899
Click here to Contact Us for more details

CNC Vertical Turning Lathe (VTL)

Berthiez TFM 160N HP

New in 1981 (original CNC)
Retrofit 2006
NUM Axium Power CNC Control
Faceplate/Chuck diameter 1650 mm
Max. load 15000 kg (15 t)
Max. turning diameter up to 350 mm height 1900 mm
Max. turning diameter over 350 mm height 1880 mm
Max. turning height 1600 mm
Ram size 200 x 200 mm
Ram cross travel X Axis -600 / +1100 mm
Ram vertical travel Z Axis 1000 mm
Feeds 0 - 6000 mm/min
Cross rail vertical movement 1300 mm (100 mm steps)
Table drive motor 55 KW
Table speeds 2 - 250 rpm
Tooling system CAPTO C
60 station automatic tool changer
Tool diameter max. 150 mm
Tool length max. 300 mm
Tool weight max. 15 kgs
High pressure coolant system up to max. 350 bar !
Chip conveyor
Tool measurement system

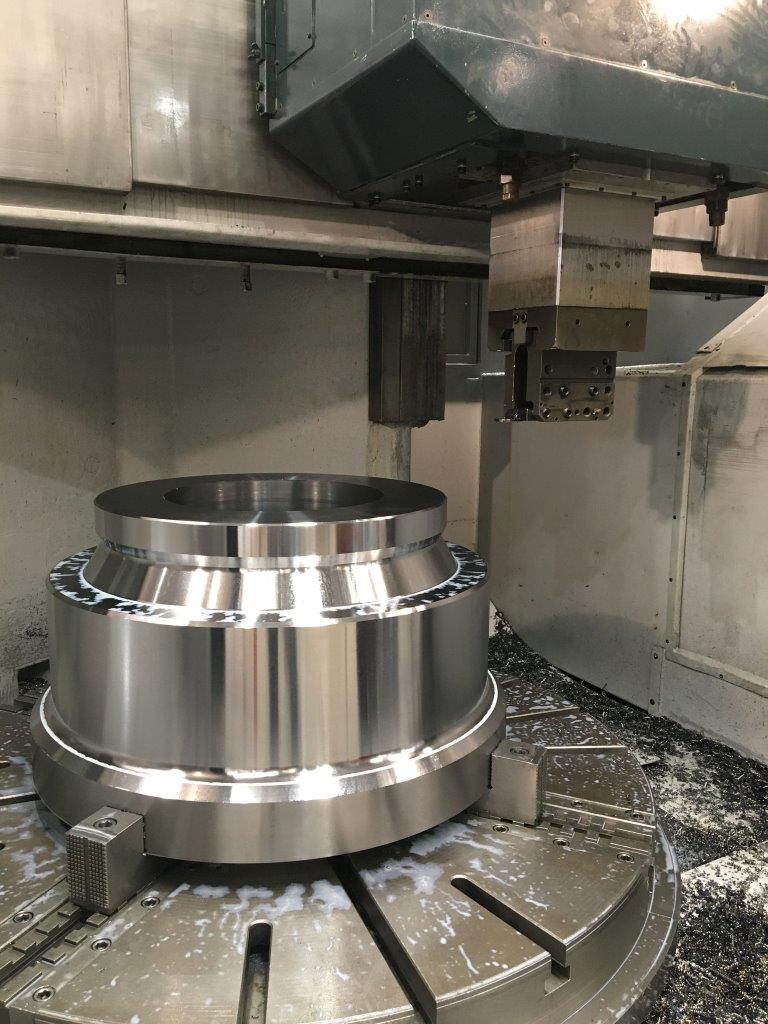

Good condition - from aerospace environment
Very precise machine from aerospace and aviation company.
Manufactured parts in titanium, inconel, aluminum.


Proposal Number: V(K)-6947
Click here to Contact Us for more details

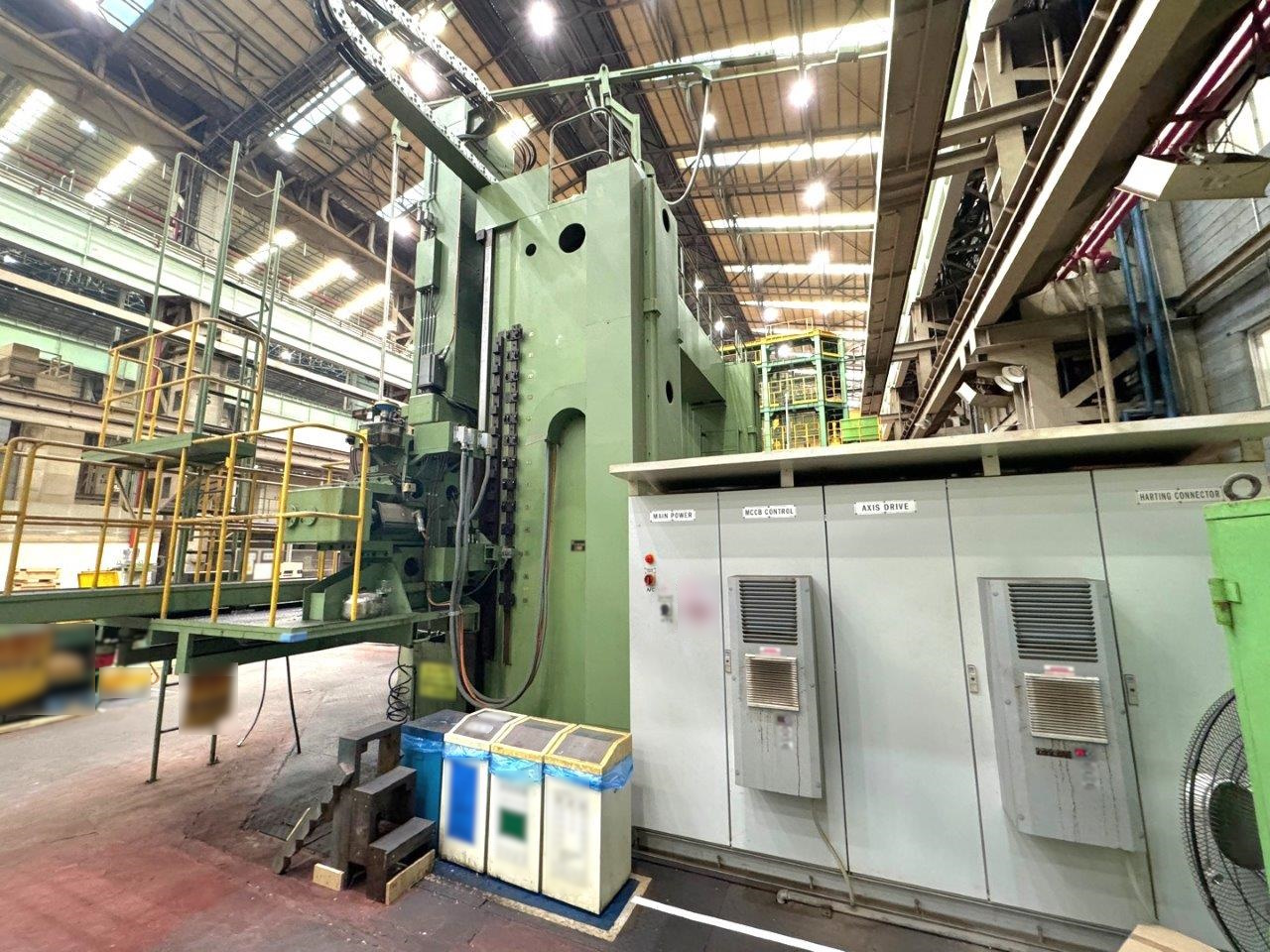

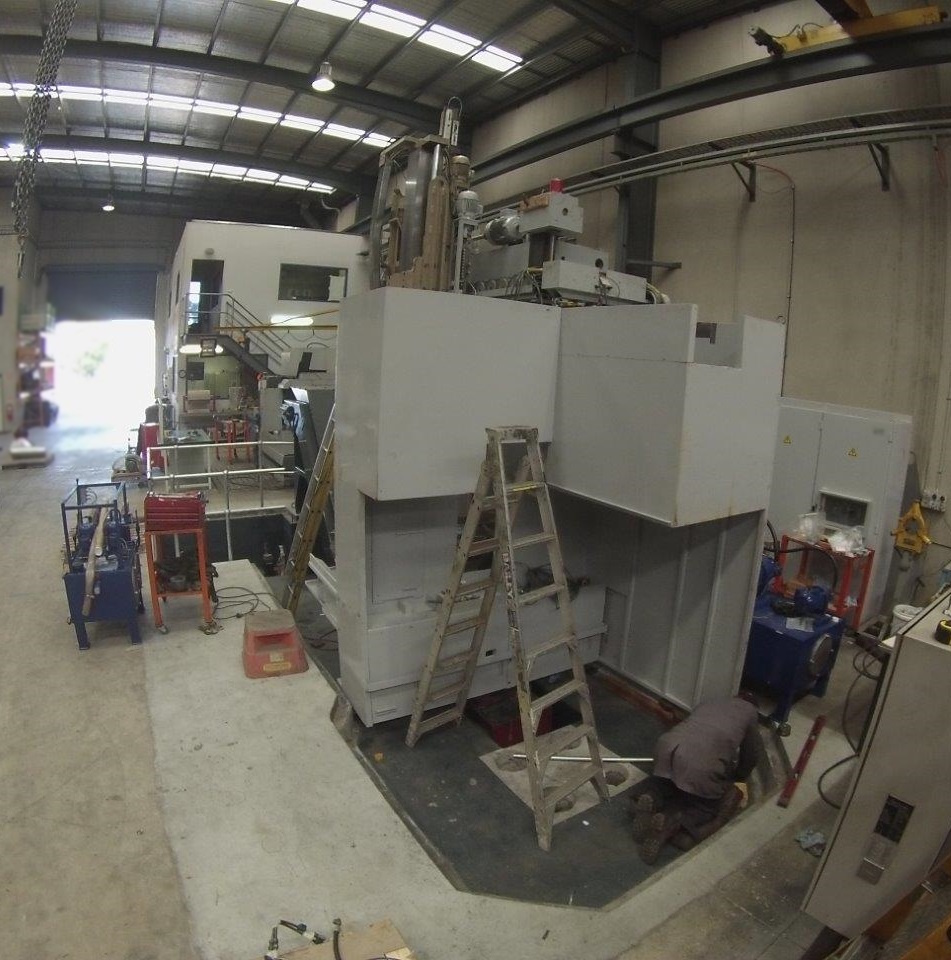

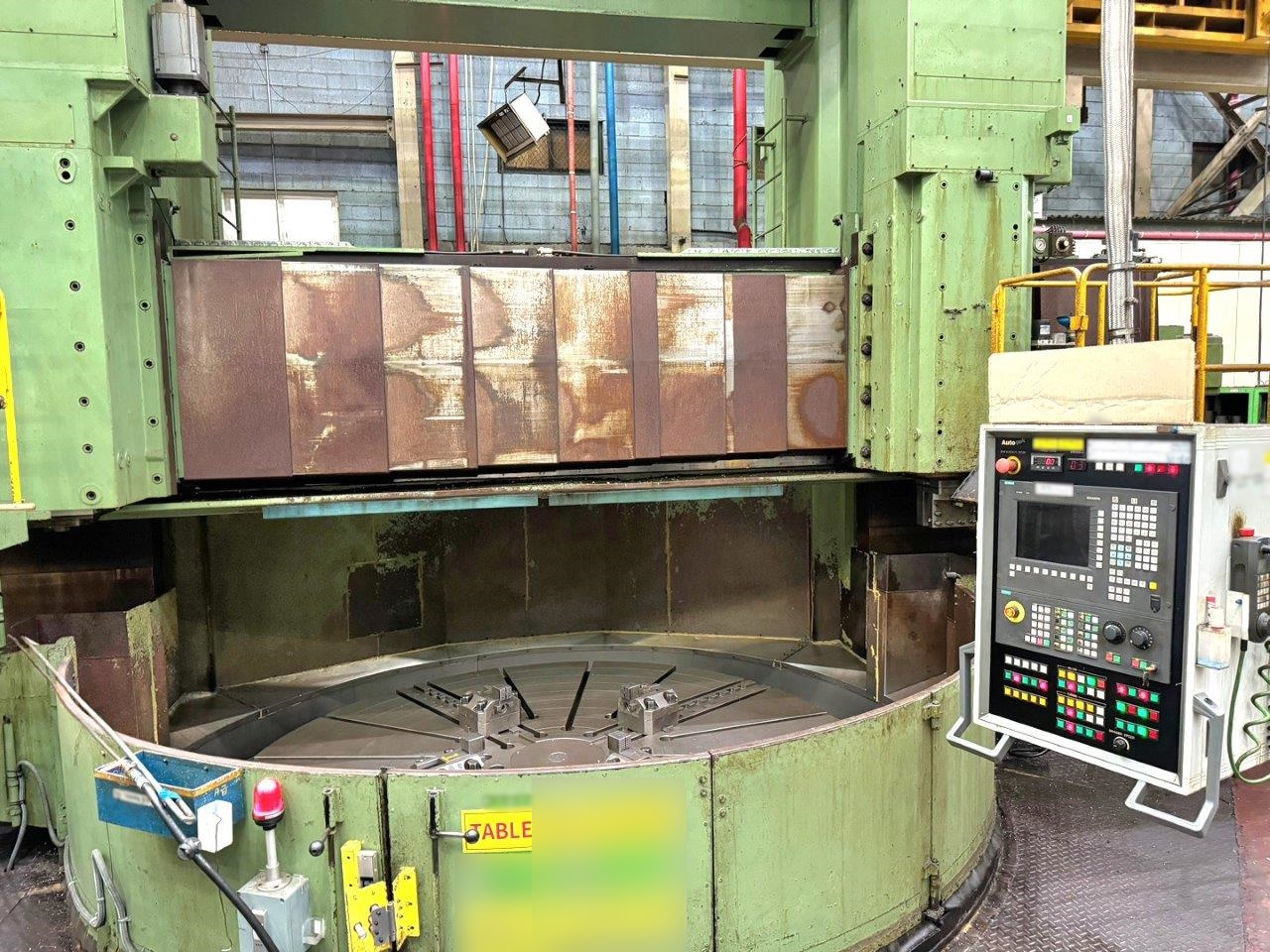

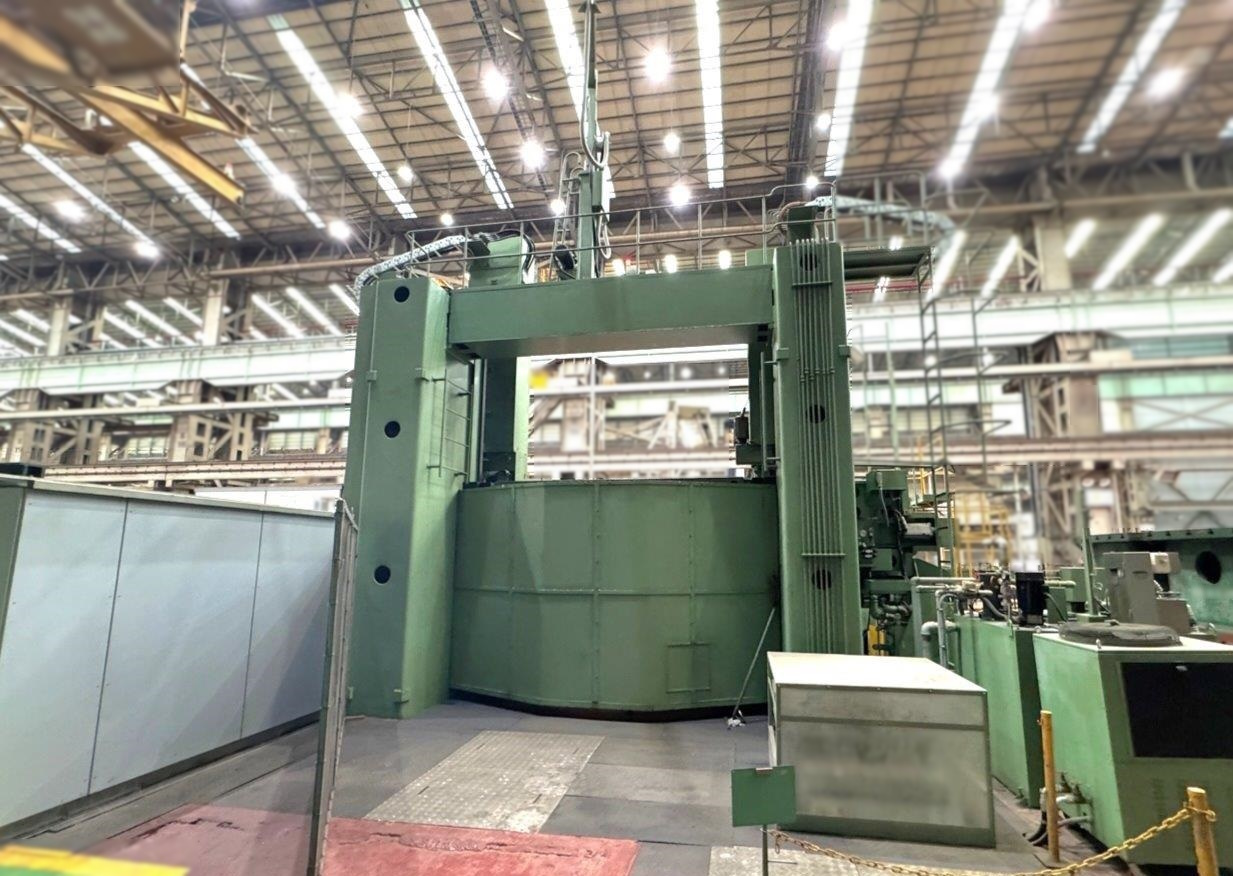

OM Vertical Turnmill TMD-30/40 with 2 x crossrail mounted Vertical rams + C-Axis + Milling spindle

New 1990 / Retrofit in 2020 from Fanuc 15T to Siemens 840D

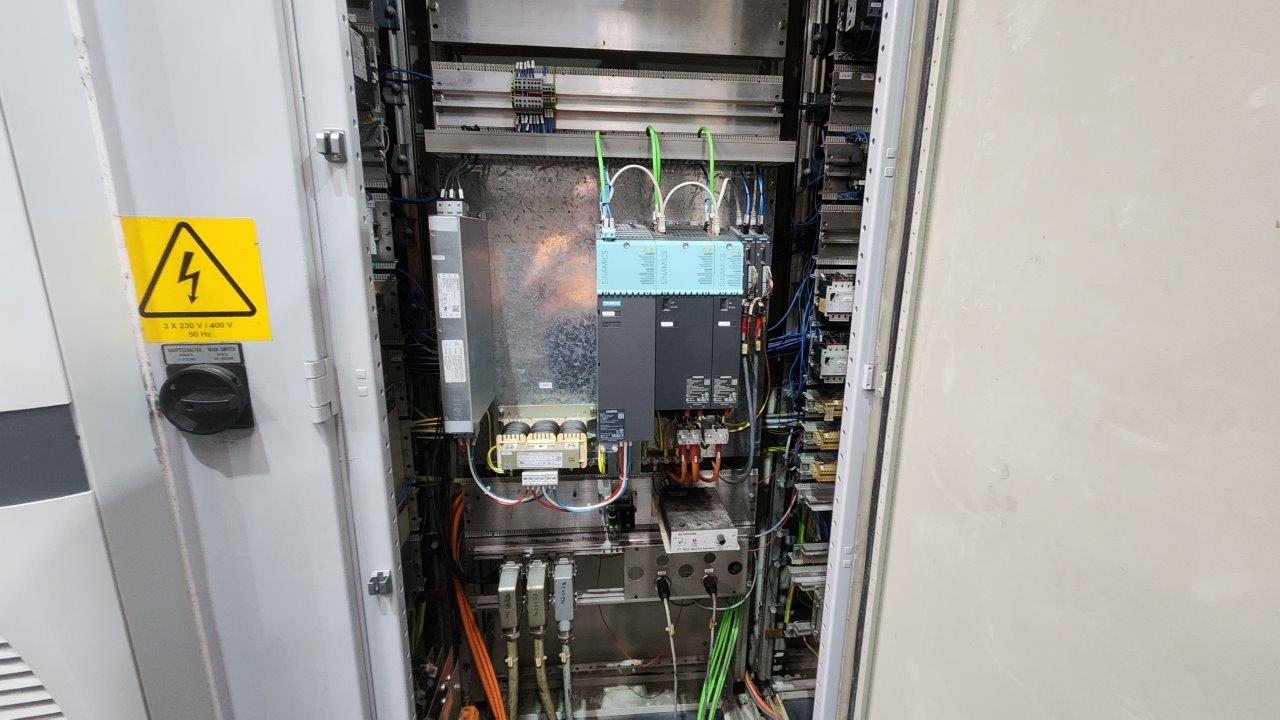

Control Siemens 840 D

Table diameter 3000 mm
Turning diameter 4000 mm
Turning height 3000 mm
Table load max. 40 ton

Distance between table & crossrail max. 3400 mm

Ram horizontal travel (X) 2200 mm
Ram vertical travel (Z) 2000 mm (right ram),1600 mm (left ram)
Crossrail travel 2400 mm

Table speed 0.4 ~ 60 rpm
Table motor 55 KW
Max. torque 10,000 kgM
Table index C-Axis 0.001degree

Milling spindle speed 3 ~ 750 rpm
Spindle taper ISO 50
Milling spindle power 18.5 KW
Milling feed 1 ~ 180 deg/min.

Ram section 260 x 260 mm ( right ram ), 250 x 250 mm ( left ram )

Tool shank size 50 x 50 mm

Machine dimension (L,W) 14,700 x 10,500 mm

Condition said to be very good (please see photos below). In plant under power.

Available end September 2024

Proposal Number: V(K)-6912
Click here to Contact Us for more details

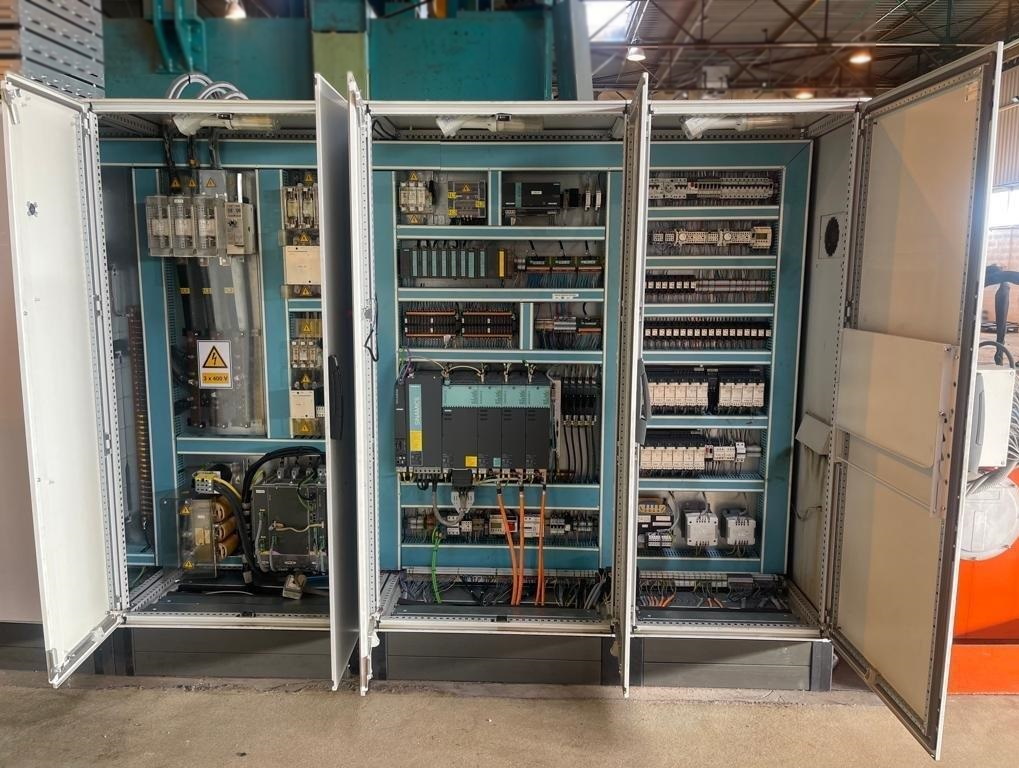

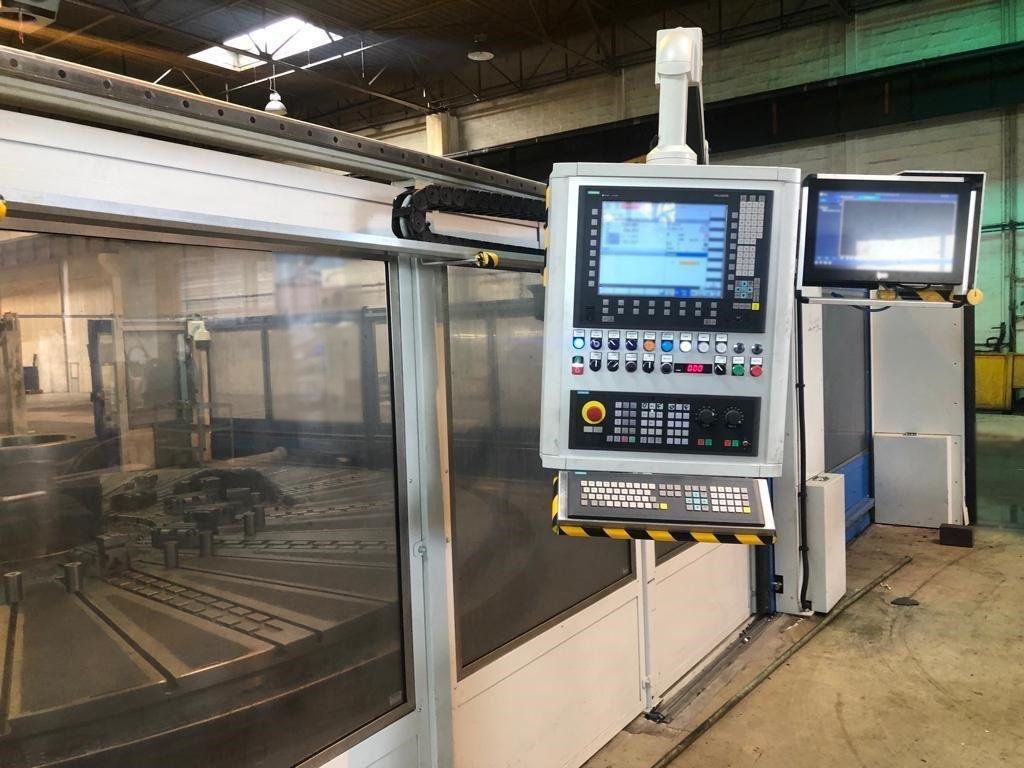

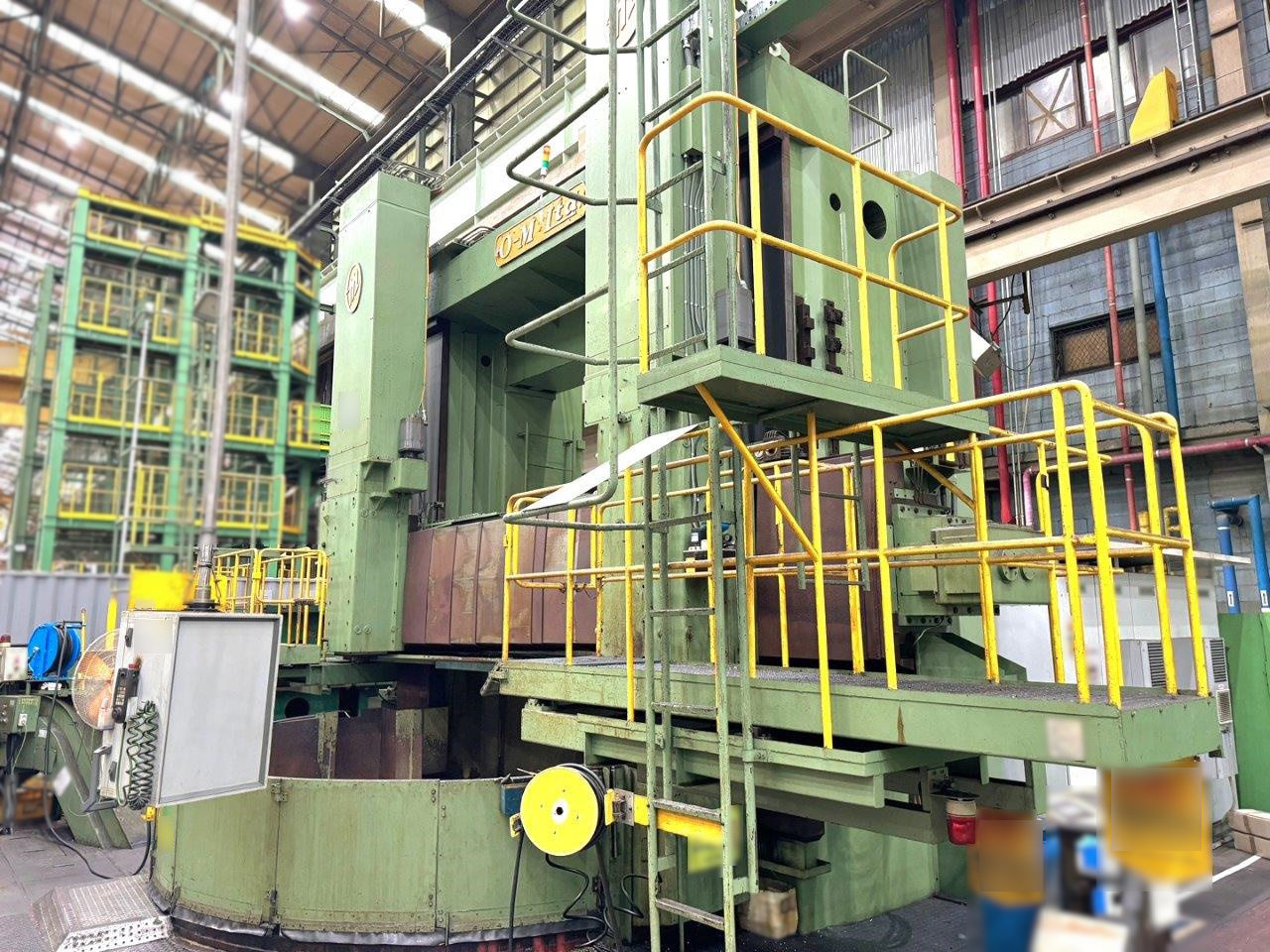

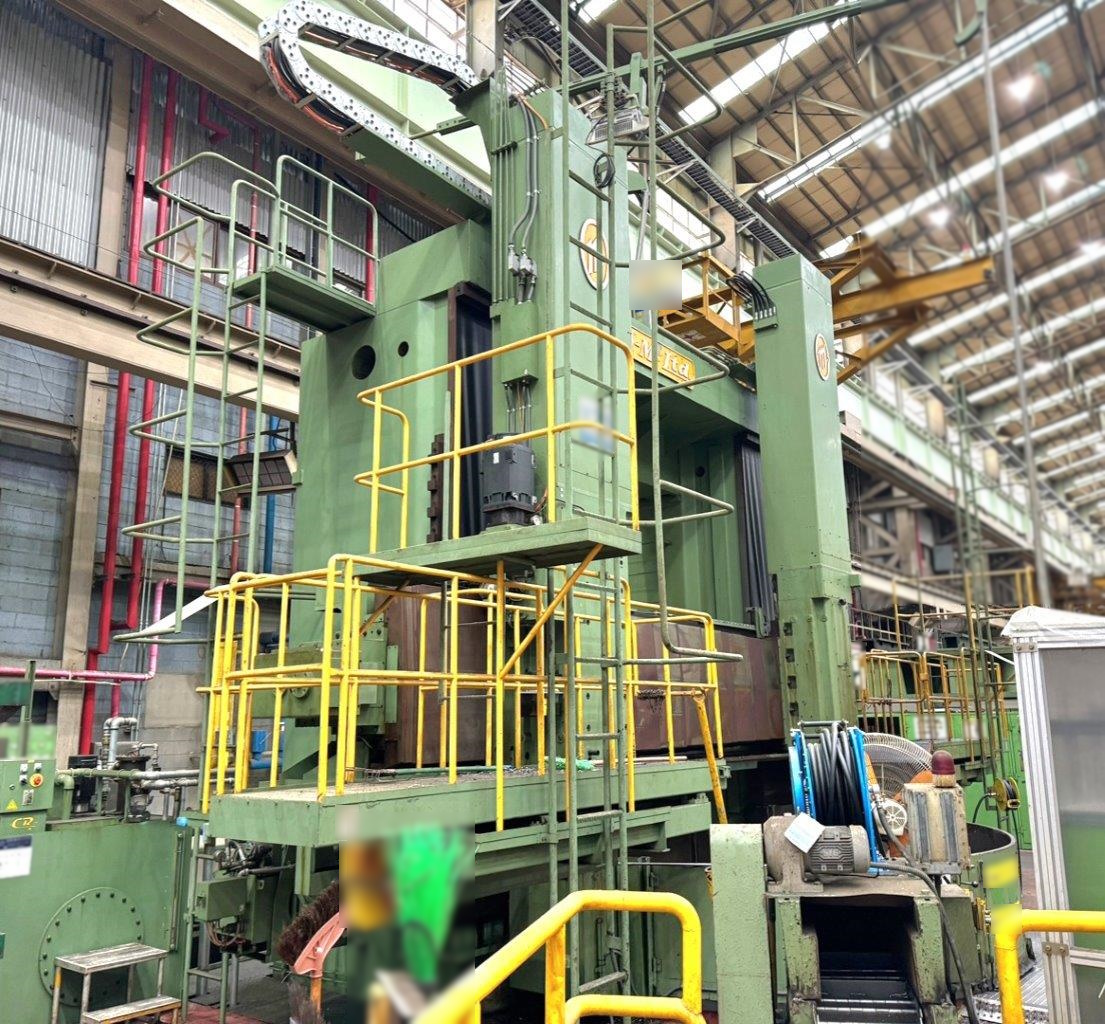

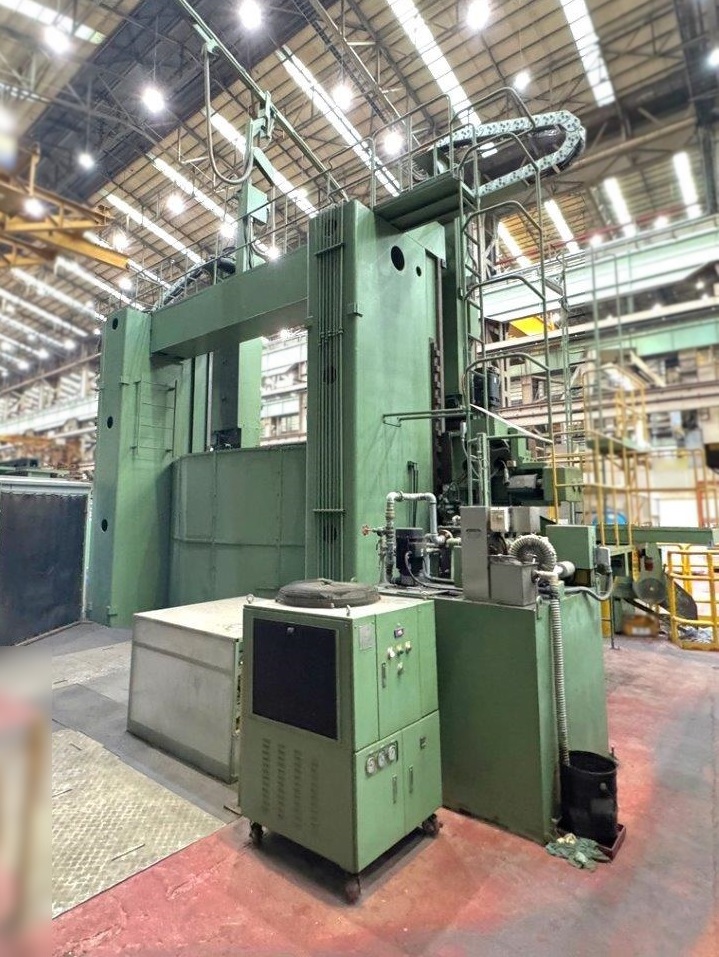

CNC-VTL / Vertical Lathe for turning & grinding + ATC

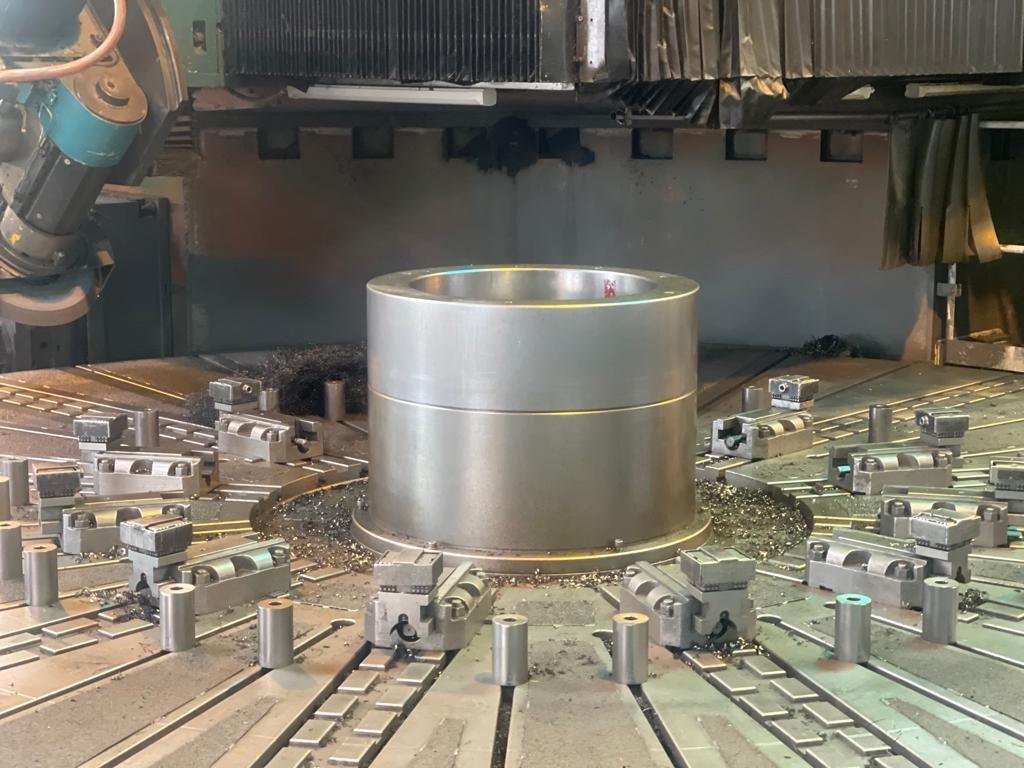

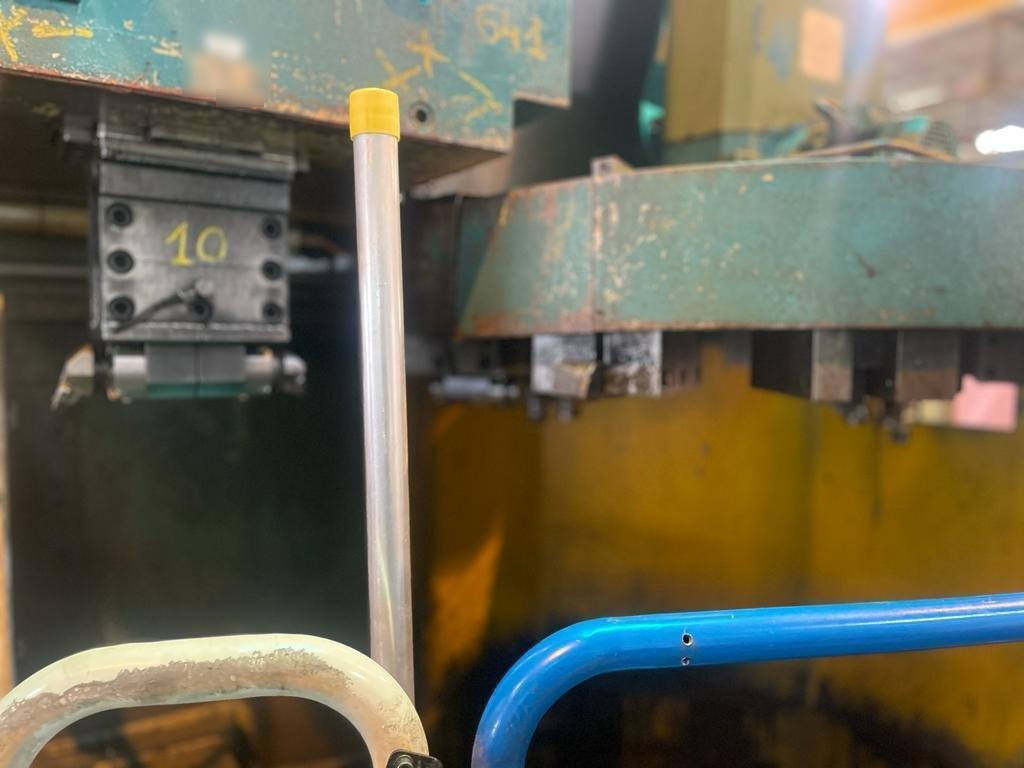

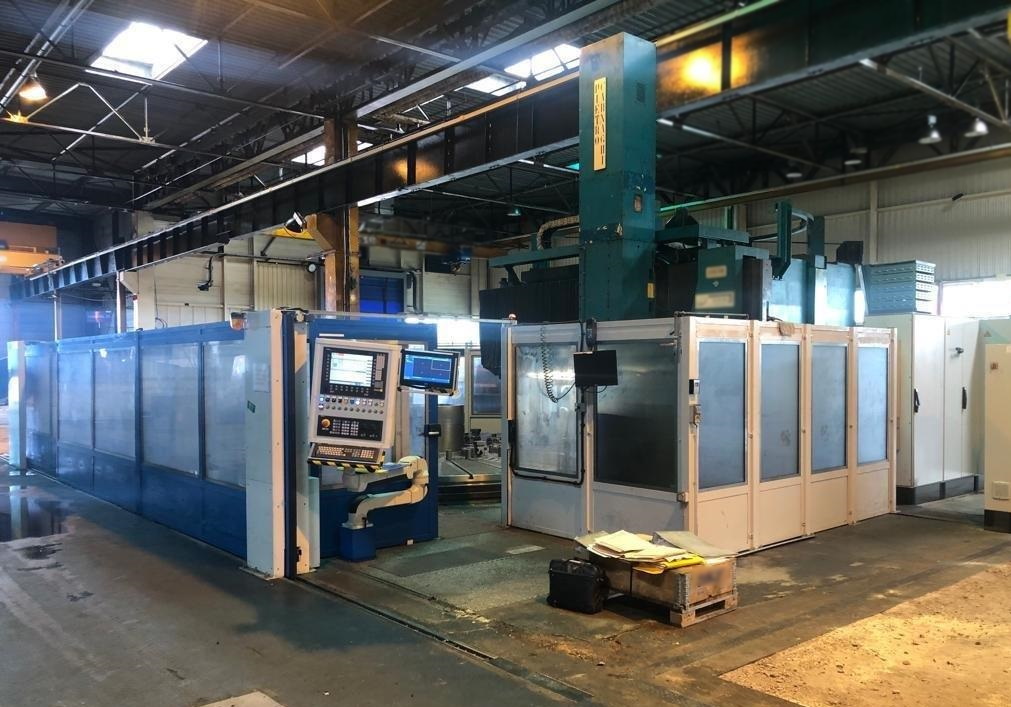

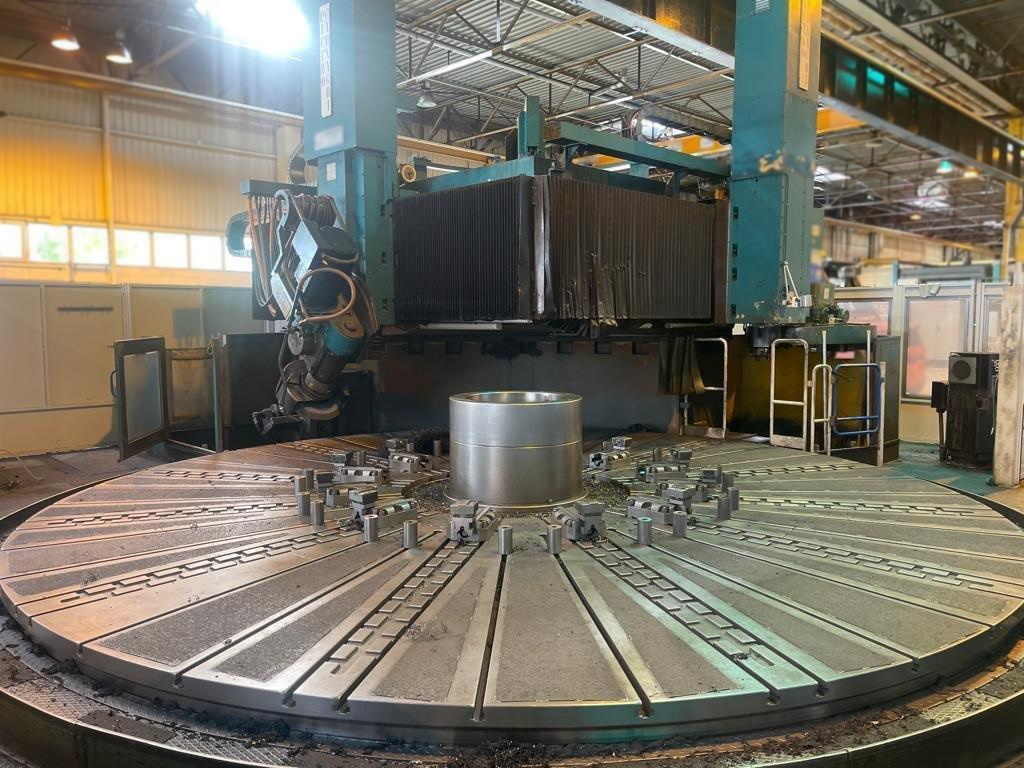

Carnaghi - Pietro Carnaghi - Model AS 65

Year of manufacture 1991
Retrofit & full overhaul 2014
Siemens 840D CNC control

Face plate/chuck diameter 6500 mm
Swing diameter 7000 mm
Turning diameter max. 6500 mm
Turning height max. 1000 mm
Left ram for Turning – Vertical travel Z Axis 1500 mm
Right ram for turning and grinding - Vertical travel Z Axis 1000 mm
Table drive motor rating 140 KW
Table rotation speed 0.6 - 37 rpm
Gear steps: 4

Proposal Number: V(K)-6872
Click here to Contact Us for more details
